Description

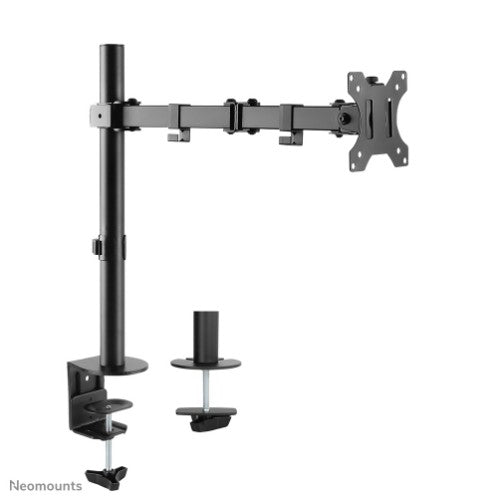

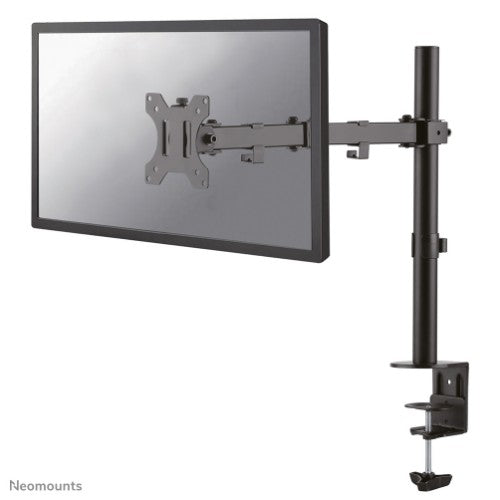

Neomounts FPMA-D550BLACK Single monitor arm - 10-32" - 0-8 kg - black
Neomounts' versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 46 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D550BLACK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Description
The Neomounts desk mount, model FPMA-D550BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.Neomounts' versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 46 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D550BLACK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.8 cm |
| Minimum screen size | 25.4 cm (10") |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Distance to the wall (min) | 4 cm |
| Distance to the wall (max) | 46 cm |
| Maximum weight capacity | 8 kg |
| Maximum screen size | 81.3 cm (32") |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 40 - 460 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 440 mm |
| Swivel angle range | 0 - 180° |
| Swivel angle | 180° |
| Tilt angle range | 0 - 90° |
| Angle of rotation | 360° |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Desk |
| Distance to the wall (min) | 4 cm |
| Distance to the wall (max) | 46 cm |
| Product colour | Black |
| Cable management | Yes |
| Weight & dimensions | |
| Depth | 40 mm |
| Height | 548 mm |
| Weight | 3.32 kg |
| Package width | 180 mm |
| Package depth | 120 mm |
| Package height | 489 mm |
| Package weight | 3.8 kg |
| Packaging data | |
| Package width | 180 mm |
| Package depth | 120 mm |
| Package height | 489 mm |
| Package weight | 3.8 kg |
| Other features | |
| VESA mounting | Yes |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 505 mm |
| Master (outer) case gross weight | 15.2 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 96 pc(s) |
| Master (outer) case net weight | 2.8 kg |
| Harmonized System (HS) code | 7326909890 |
