Description

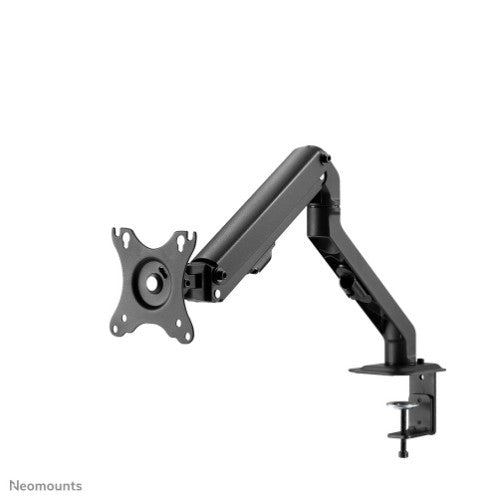

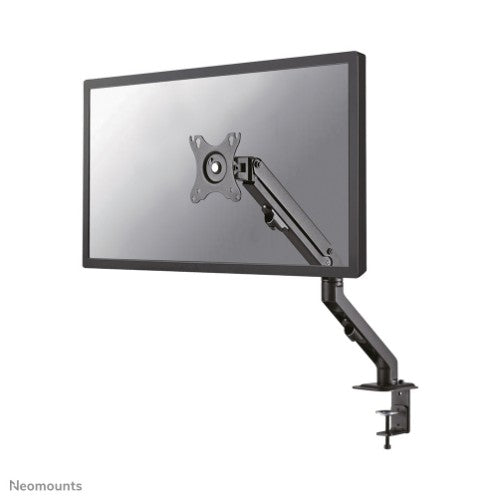

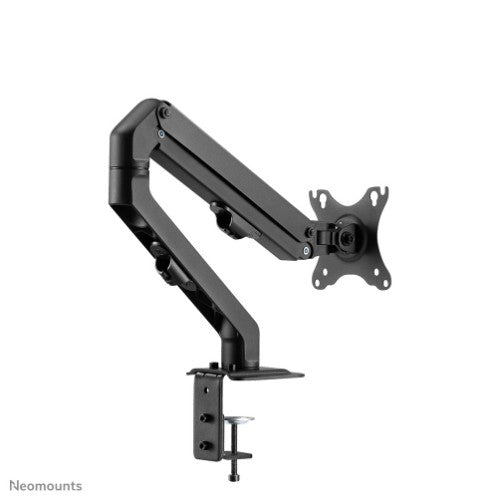

Neomounts FPMA-D650BLACK Single monitor arm - 17-27" - 2-7 kg - coil spring - black
The FPMA-D650BLACK has two pivot points and suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Deviant hole patterns can be covered using one of Neomounts VESA adapter plates. The Neomounts FPMA-D650BLACK comes with both desk clamp and grommet.
Description

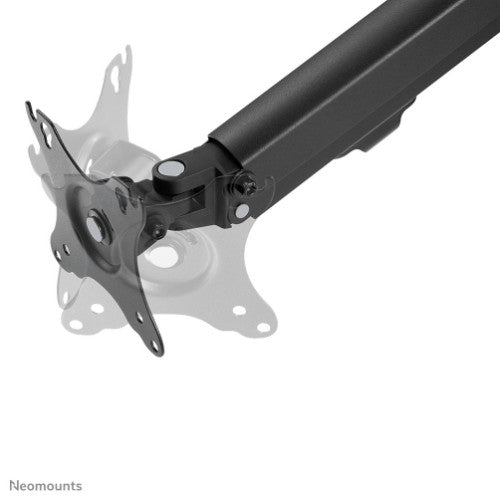

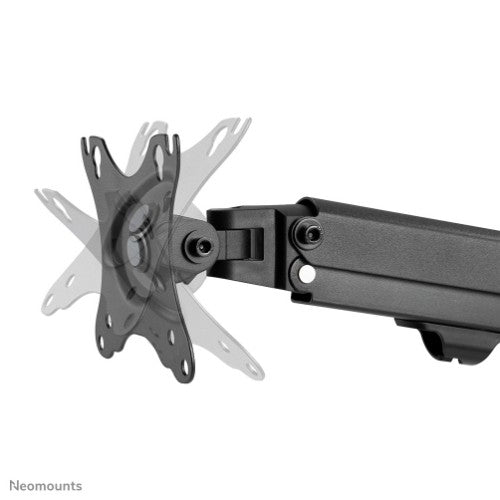

The Neomounts FPMA-D650BLACK is a full motion desk mount for a flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (130°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Additionally, the mount features spring-assisted height adjustment (11-42 cm) and depth adjustment (0-49,4 cm), to create the perfect work situation. The smart cable management clips ensure orderly routing of the cables.The FPMA-D650BLACK has two pivot points and suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Deviant hole patterns can be covered using one of Neomounts VESA adapter plates. The Neomounts FPMA-D650BLACK comes with both desk clamp and grommet.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 7 kg |
| Desk thickness (max) | 8 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity | 7 kg |
| Maximum screen size | 68.6 cm (27") |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 494 mm |
| Height adjustment | Yes |
| Height adjustment range | 108 - 417 mm |
| Swivel angle range | 0 - 180° |
| Swivel angle | 180° |
| Tilt angle range | 0 - 130° |
| Angle of rotation | 360° |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Easy to install | Yes |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Desk |
| Minimum weight | 2 kg |
| Product colour | Black |
| Width adjustment range | 0 - 514 mm |
| Cable management | Yes |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 562 mm |
| Height | 570 mm |
| Weight | 2.05 kg |
| Package width | 390 mm |
| Package depth | 100 mm |
| Package height | 250 mm |
| Package weight | 2.2 kg |
| Packaging data | |
| Package width | 390 mm |
| Package depth | 100 mm |
| Package height | 250 mm |
| Package weight | 2.2 kg |
| Other features | |
| Minimum weight | 2 kg |
| Width adjustment range | 0 - 514 mm |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 390 mm |
| Master (outer) case length | 100 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case gross weight | 2.6 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 126 pc(s) |
| Master (outer) case net weight | 2.2 kg |
| Harmonized System (HS) code | 7326909890 |
