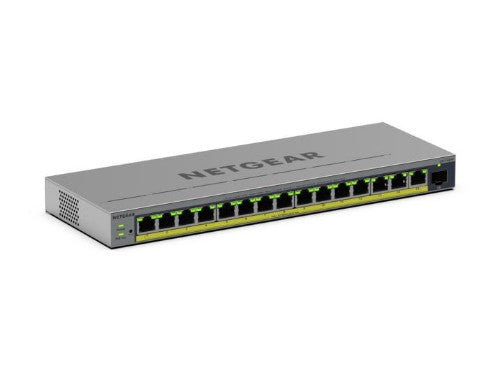

Description
16-Port, 1 Gbit/s, 231 W, 8K, 4.1 MB, 0-40°C, Grey, 286 x 101 x 27 mm, 0.83 kg
Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices
GIGABIT ETHERNET AND FIBER
15 ports provide Gigabit Ethernet connectivity to your devices and 1 SFP fiber port for long distance connections
VLANS
Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Key Features
- 15 x Gigabit Ethernet ports with PoE+ with 1 SFP Fiber port
- Plug-and-play with fundamental network management features
- QoS and VLAN management
- Energy Efficient Ethernet for maximum power savings
- Fanless and silent
- Desktop or wall-mount
Description
EASY POE CONTROLSManage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices
GIGABIT ETHERNET AND FIBER
15 ports provide Gigabit Ethernet connectivity to your devices and 1 SFP fiber port for long distance connections
VLANS
Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3az |
| VLAN support | Yes |
| Rate limiting | Yes |
| Number of VLANs | 64 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Virtual LAN features | Port-based VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 1 Gbit/s |
| Jumbo frames support | Yes |
| Number of multicast groups filtered | 128 |
| Number of VLANs | 64 |
| Security | |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Multicast features | |
| Number of multicast groups filtered | 128 |
| Multicast support | Yes |
| Design | |
| Product colour | Grey |
| Housing material | Metal |
| Performance | |
| Mean time between failures (MTBF) | 5704358 h |
| Packet buffer memory | 4.1 MB |
| Power | |
| Power consumption (max) | 250.6 W |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 15 |
| Total Power over Ethernet (PoE) budget | 231 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Bandwidth | 32 Gbit/s |
| Warranty period | 5 year(s) |
| Ethernet LAN data rates | 1000 Mbit/s |
| Operational conditions | |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 64 |
| Virtual LAN features | Port-based VLAN |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 830 g |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Technical details | |
| Product colour | Grey |
| Mean time between failures (MTBF) | 5704358 h |
| Housing material | Metal |
| Warranty period | 5 year(s) |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KC, VCCI |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Certificates | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KC, VCCI |
| Packaging data | |
| Quick start guide | Yes |
| Manual | Yes |
