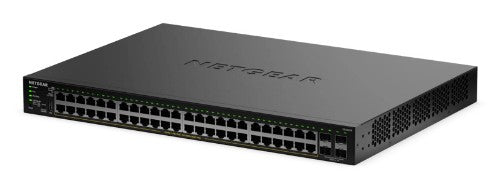

NETGEAR GS348TPv2, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Description
NETGEAR GS348TPv2. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specifications
| Management features |
|---|
| ARP inspection |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| MIB support |
Yes |
| Switch layer |
L2/L3 |
| Ports & interfaces |
|---|
| SFP module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Number of VLANs |
256 |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| Auto-negotiation |
Yes |
| Virtual LAN features |
Port-based VLAN, Private VLAN, Voice VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Packet buffer memory |
1.5 MB |
| MAC address table |
16000 entries |
| Switching capacity |
104 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Number of VLANs |
256 |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Black |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Number of fans |
2 fan(s) |
| Performance |
|---|
| Processor frequency |
800 MHz |
| Noise level |
36.3 dB |
| Memory type |
RAM |
| Internal memory |
512 MB |
| Flash memory |
64 MB |
| Built-in processor |
Yes |
| Packet buffer memory |
1.5 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power source |
PoE |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet plus (PoE+) ports quantity |
48 |
| Total Power over Ethernet (PoE) budget |
380 W |
| Power over Ethernet (PoE) |
Yes |
| Other features |
|---|
| Warranty period |
3 year(s) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
256 |
| Virtual LAN features |
Port-based VLAN, Private VLAN, Voice VLAN |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
316 mm |
| Height |
43 mm |
| Weight |
4.05 kg |
| Packaging content |
|---|
| Quick start guide |
Yes |
| User guide |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Processor frequency |
800 MHz |
| Noise level |
36.3 dB |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Shipping (inner) case width |
56.7 cm |
| Shipping (inner) case net weight |
13.3 kg |
| Shipping (inner) case length |
24.1 cm |
| Shipping (inner) case height |
43.2 cm |
| Products per shipping (inner) case |
2 pc(s) |
| Warranty period |
3 year(s) |
| Memory |
|---|
| Packet buffer memory |
1.5 MB |
| Memory type |
RAM |
| Internal memory |
512 MB |
| Flash memory |
64 MB |
| Indication |
|---|
| LED indicators |
Yes |
| Packaging data |
|---|
| Quick start guide |
Yes |
| User guide |
Yes |
| Manual |
Yes |
