Description

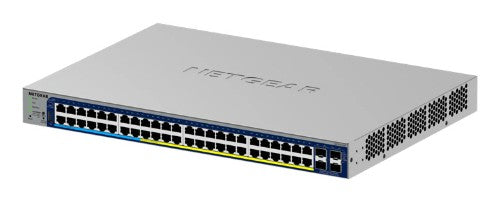

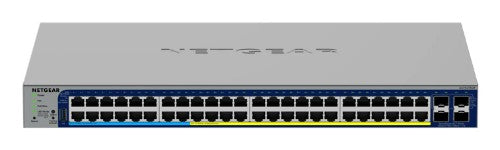

48-Port Gigabit PoE+ and PoE++ Smart Switch w/optional Remote/Cloud Management and 4 SFP+ Ports (640W)
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.
Description
Total Network Solution helps you get the most out of your networkEasily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Number of VLANs | 256 |
| 10G support | Yes |
| Data transmission | |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.94 Mpps |
| Number of VLANs | 256 |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Performance | |
| Noise level | 37.3 dB |
| Mean time between failures (MTBF) | 191643 h |
| Packet buffer memory | 1.5 MB |
| Power | |
| Power source | AC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 640 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 16 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 310 mm |
| Height | 43 mm |
| Weight | 4.79 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Noise level | 37.3 dB |
| Mean time between failures (MTBF) | 191643 h |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
