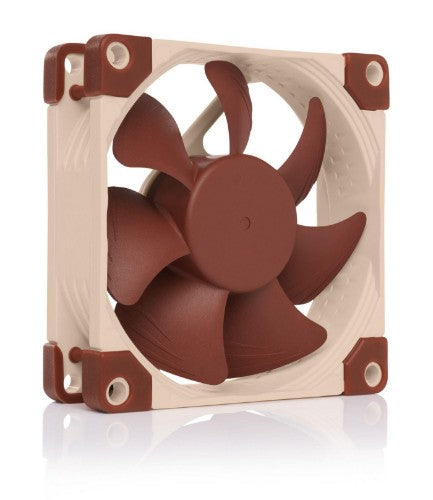

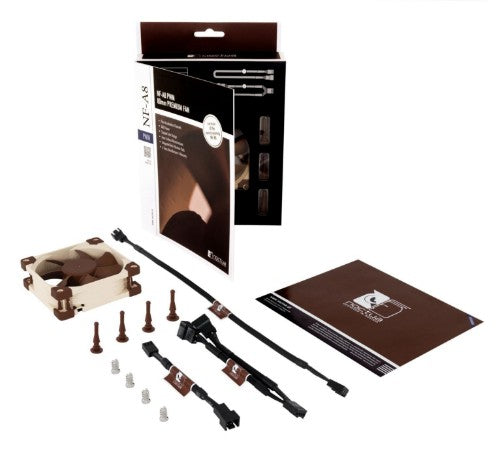

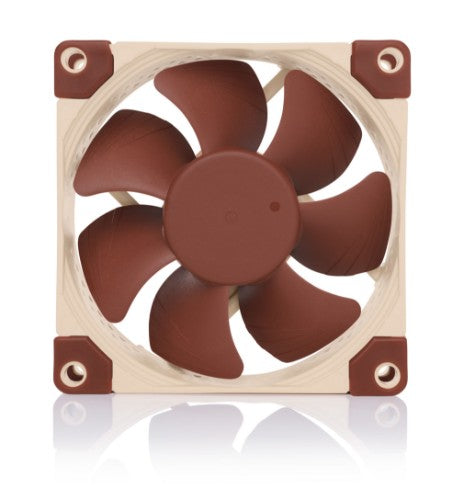

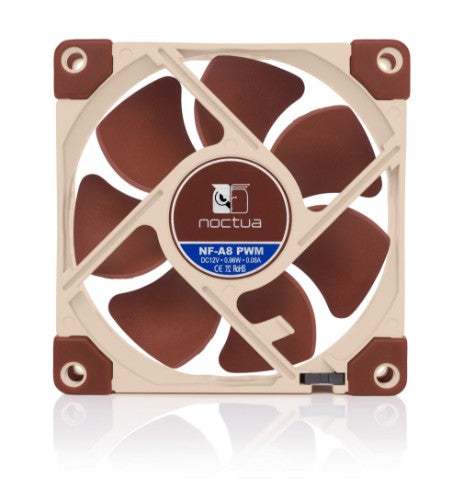

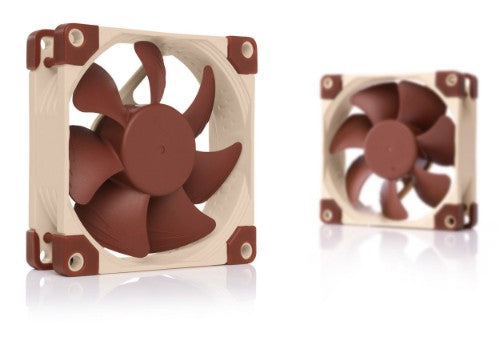

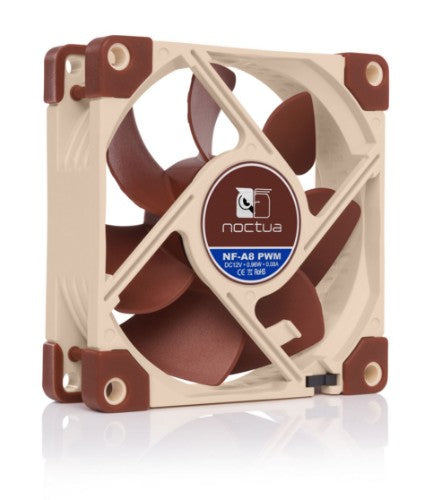

NF-A8 PWM, 2200 RPM, 55.5 m³/h, 17.7 dB(A)
Description

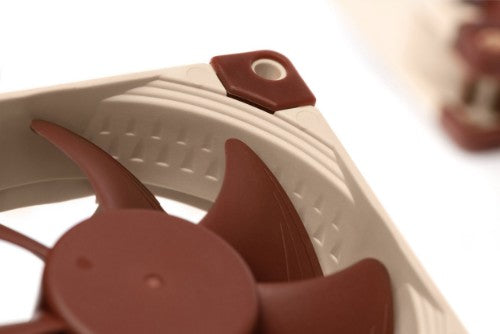

The NF-A8 is a highly optimised, premium quality quiet 80mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2200 to 1750rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
Specifications
| Performance |
|---|
| Suitable location |
Computer case |
| Rotational speed (min) |
450 RPM |
| Rotational speed (max) |
2200 RPM |
| Noise level (low speed) |
13.8 dB |
| Noise level (high speed) |
17.7 dB |
| Type |
Fan |
| Fan diameter |
8 cm |
| Airflow |
55.5 m³/h |
| Mean time between failures (MTBF) |
150000 h |
| Design |
|---|
| Product colour |
Beige, Brown |
| Technical details |
|---|
| Noise level (low speed) |
13.8 dB |
| Noise level (high speed) |
17.7 dB |
| Type |
Fan |
| Fan diameter |
8 cm |
| Airflow |
55.5 m³/h |
| Power |
|---|
| Voltage |
12 V |
| Power supply |
0.96 W |
| Maximum current |
0.08 A |
| Colour |
|---|
| Product colour |
Beige, Brown |
| Weight & dimensions |
|---|
| Width |
80 mm |
| Depth |
80 mm |
| Height |
25 mm |
| Endurance |
|---|
| Mean time between failures (MTBF) |
150000 h |
| Other features |
|---|
| Harmonized System (HS) code |
84733080 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
