100GbE, QSFP56, PCIe 4.0 x16, QoS, Web 2.0
Key Features
- 1/10/25/40/50/100 Gb/s Ethernet, PAM4/NRZ
- Various form factors:
- PCIe low-profile
- OCP 3.0 Small Form Factor (SFF)
- OCP 2.0
- Connectivity options:
- SFP28, SFP56, QSFP28, QSFP56
- PCIe Gen 3.0/4.0 x16 host interface
- Multi-host and single-host flavors
- Crypto and non-crypto versions
Description

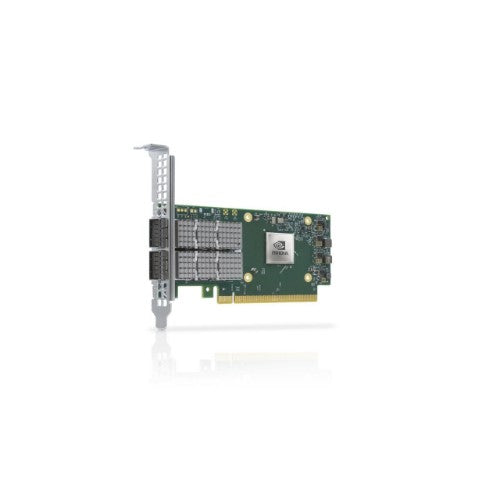

NVIDIA ConnectX-6 DX Ethernet SmartNIC
ConnectX-6 Dx SmartNIC is the industry's most secure and advanced cloud network interface card to accelerate mission-critical data-center applications, such as security, virtualization, SDN/NFV, big data, machine learning, and storage. The SmartNIC delivers the highest return on investment (ROI) of any smart network interface card.
ConnectX-6 Dx is a member of NVIDIA's world-class, award-winning ConnectX series of network adapters powered by leading 50 Gb/s (PAM4) and 25/10 Gb/s (NRZ) SerDes technology and novel capabilities that accelerate cloud and data-center payloads.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| PCI version |
4.0 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
QSFP56 |
| Interface |
Fiber |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Bandwidth |
|---|
| Maximum data transfer rate |
100000 Mbit/s |
| Network |
|---|
| Security algorithms |
128-bit AES, 256-bit AES, 256-bit AES-XTS |
| Supported network protocols |
TCP/UDP/IP |
| Maximum data transfer rate |
100000 Mbit/s |
| Design |
|---|
| Internal |
Yes |
| Component for |
PC |
| Security |
|---|
| Security algorithms |
128-bit AES, 256-bit AES, 256-bit AES-XTS |
| Protocols |
|---|
| Supported network protocols |
TCP/UDP/IP |
| Performance |
|---|
| Security algorithms |
128-bit AES, 256-bit AES, 256-bit AES-XTS |
