AMD GX-412TC 1.4 Ghz 4-core 64-bit x86, 4 GB DDR3 RAM, 16 GB SSD, 2 x USB 2.0, 2 x USB 3.0, 2 x 10/100/1000 Ethernet
Key Features
- 4 Serial, 8 Serial, and 8 Serial/8 Ethernet port combinations
- x86 platform supporting Docker and Python, to automate NetOps processes
- Smart OOB includes automated port discovery and VLAN support on the OM appliances
- Cellular access with a Global LTE-A Pro module (optional)
- x86 CPU supports standard Docker containers and a python runtime environment, to automate NetOps processes
- TPM2.0 chip provides a secure boot process to protect against configuration and firmware tampering
- Open architecture, based on Linux operating system. Standard DevOps tools, including Ansible, Docker and Python, used for automation
Description

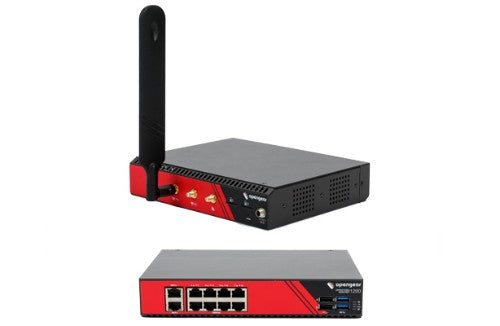

The compact OM1200 appliance is designed specifically for secure edge deployments, used in combination with Lighthouse Management Software. Combining the secure access of Smart OOB™ with the flexibility of NetOps automation tools, it provides the Presence & Proximity at every location that supports emerging requirements in Network Management and Automation.
Specifications
| Technical details |
|---|
| Product colour |
Black, Red |
| Cellular |
Yes |
| 4G LTE |
Yes |
| Supported programming languages |
Python |
| Rack mounting |
Yes |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS |
| Security |
|---|
| Security algorithms |
SSH |
| Authentication method |
AAA – TACACS+ |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
2 |
| Serial ports quantity |
8 |
| Console port |
RS-232 |
| Processor |
|---|
| Processor family |
AMD |
| Processor model |
GX-412TC |
| Processor cores |
4 |
| Processor frequency |
1400 MHz |
| Memory |
|---|
| RAM type |
DDR3 |
| RAM capacity |
4000 MB |
| Internal memory |
16000 MB |
| Weight & dimensions |
|---|
| Weight |
1 kg |
| Dimensions (WxDxH) |
220 x 170 x 42 mm |
| Power |
|---|
| Power source type |
AC |
| AC input voltage |
110 - 240 V |
| Power consumption (typical) |
25 W |
| DC input voltage |
12 V |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 75 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
5 - 50 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Network |
|---|
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Certificates |
|---|
| Certification |
IEC 6950-1, IEC 62368-1, CAN/CSA-C22.2,NERC CIP |
