Description

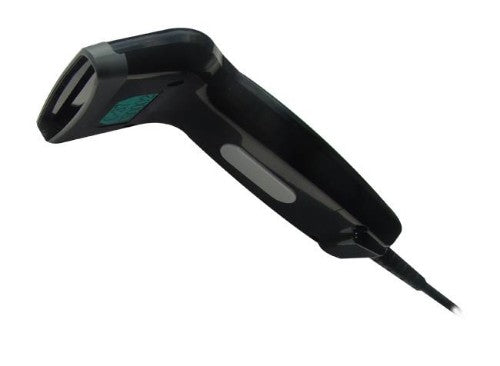

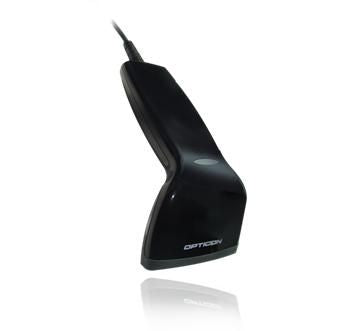

C37 - 1D, 200scans/sec, RS232, USB, MiniDIN6-F/M, 6V, 90g, Black
This lightweight and ergonomically shaped device fits comfortably in anyone's hand, making it suitable for all-day scanning applications.
The C37 is available with the most popular interfaces: USB, Keyboard Wedge and RS232. This device is easily programmable to suite your application.
Description
The C37 is a durable CCD scanner with a wide optical window. With its aggressive scan engine the C37 operates at a speed of 200 scans per second. Available in black and white, this sleek scanner fits on every desk.This lightweight and ergonomically shaped device fits comfortably in anyone's hand, making it suitable for all-day scanning applications.
The C37 is available with the most popular interfaces: USB, Keyboard Wedge and RS232. This device is easily programmable to suite your application.
Specifications
| Scanning | |
|---|---|
| Yaw reading angle | 20 - 70° |
| Wavelength | 650 nm |
| Tilt reading angle | -20 - 20° |
| Sensor type | CCD |
| Read rate (max) | 200 reads/s |
| Pitch reading angle | -35 - 35° |
| Decoding standards | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey Chinese Post, Korean Postal Authority code |
| Ports & interfaces | |
| Bluetooth | No |
| Standard interfaces | USB, RS-232 |
| Performance | |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | CE, FCC, VCCI, RoHS |
| Buzzer | Yes |
| Design | |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | CE, FCC, VCCI, RoHS |
| Power | |
| Input voltage | 6 V |
| Weight & dimensions | |
| Weight | 90 g |
| Technical details | |
| Light source | LED |
| International Protection (IP) code | IP42 |
| Dimensions (WxDxH) | 53 x 150 x 75 mm |
| Product colour | Black |
| Certification | CE, FCC, VCCI, RoHS |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| Light source | LED |
| Dimensions (WxDxH) | 53 x 150 x 75 mm |
