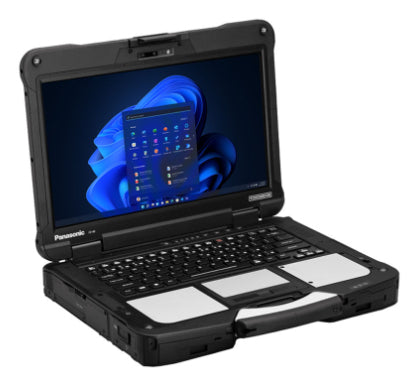

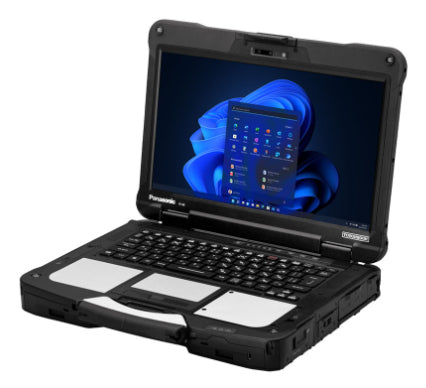

Intel Core Ultra 7 165H (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, 14" Full HD 1920 x 1080 IPS Touch, Intel Arc Graphics, LAN, WLAN, 5G, Webcam, Windows 11 Pro 64-bit
Key Features
- Windows 11 Pro 64-bit
- Intel Core Ultra 7 165H (24MB Cache)
- 14" Full HD 1920 x 1080 IPS Touch
- 16GB (5600MHz) DDR5-SDRAM & 512GB SSD
Description
The 14” fully-rugged Panasonic TOUGHBOOK® 40 offers unrivaled flexibility in even the most demanding and unpredictable environments with its class-leading eight modular areas including its innovative modular expansion packs (xPAK’s). Optical drives, authentication readers, IO ports and even the Barcode Reader xPAK are all user-upgradeable. Its state-of-the-art design optimizes thermals for maximum performance and its latest technology will ensure the TOUGHBOOK 40 will withstand the test of time. It is the first AI-enabled TOUGHBOOK PC featuring an Intel processor with dedicated NPU to optimize AI performance. It also has up to 64GB of RAM, up to 4TB of storage, all-day battery life, four microphones, color-selectable backlit keyboard, 95db speakers, and choice of two cellular modems. The 4G modem provides up to 2Gbps and the 5G modem adds support of 5G Sub6, and C-band with speeds up to 4.1Gbps. It also has the ability to seamlessly connect to the best available network without any disruption or loss of connectivity.
Specifications
| Design |
|---|
| Product type |
Laptop |
| Form factor |
Clamshell |
| Product colour |
Black, Silver |
| Rugged design |
Yes |
| Stylus pen support |
Yes |
| Certified refurbished |
No |
| Display |
|---|
| HD type |
Full HD |
| Panel type |
IPS |
| Display brightness |
1200 cd/m² |
| Touchscreen |
Yes |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
35.6 cm (14") |
| Anti-reflective coating |
Yes |
| Processor |
|---|
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Processor model |
165H |
| Processor boost frequency |
5 GHz |
| Processor cores |
16 |
| Processor threads |
22 |
| Processor manufacturer |
Intel |
| Processor family |
Intel Core Ultra 7 |
| Processor base power |
28 W |
| Maximum turbo power |
115 W |
| Efficient-core base frequency |
0.9 GHz |
| Performance-core base frequency |
1.4 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
5 GHz |
| Performance cores |
6 |
| Efficient cores |
8 |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-cores |
2 |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory |
|---|
| Internal memory |
16 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
5600 MHz |
| Maximum internal memory |
64 GB |
| Storage |
|---|
| Storage media |
SSD |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSDXC, MicroSD (TransFlash), MicroSDHC |
| Total storage capacity |
512 GB |
| NVMe |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel Arc Graphics |
| On-board graphics card |
Yes |
| On-board graphics card model |
Intel Arc Graphics |
| Discrete graphics card model |
Not available |
| On-board GPU manufacturer |
Intel |
| Audio |
|---|
| Audio system |
MaxxAudio |
| Speakers manufacturer |
Waves |
| Built-in microphone |
Yes |
| Camera |
|---|
| Front camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Network |
|---|
| Mobile network connection |
Yes |
| Mobile network generation |
5G |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN controller model |
Intel Wi-Fi 7 BE200 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Ethernet LAN |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Combo headphone/mic port |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| Thunderbolt 4 ports quantity |
1 |
| Intel® Thunderbolt 4 |
Yes |
| Keyboard |
|---|
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Software |
|---|
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Technical details |
|---|
| Form factor |
Clamshell |
| Product colour |
Black, Silver |
| Battery |
|---|
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery recharge time |
3 h |
| Battery voltage |
10.8 V |
| Power |
|---|
| AC adapter input voltage |
100 - 240 V |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| Security |
|---|
| Cable lock slot type |
Kensington |
| Trusted Platform Module (TPM) |
Yes |
| Cable lock slot |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Certificates |
|---|
| Certification |
MIL-STD-810H, MIL-STD-461G |
| Weight & dimensions |
|---|
| Width |
353.1 mm |
| Depth |
302.3 mm |
| Height |
53.3 mm |
| Weight |
3.36 kg |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Other features |
|---|
| WLAN controller model |
Intel Wi-Fi 7 BE200 |
| On-board graphics card |
Yes |
| Audio system |
MaxxAudio |
| AC adapter included |
Yes |
