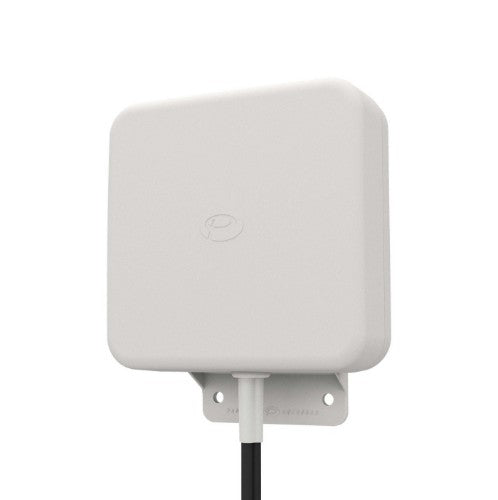

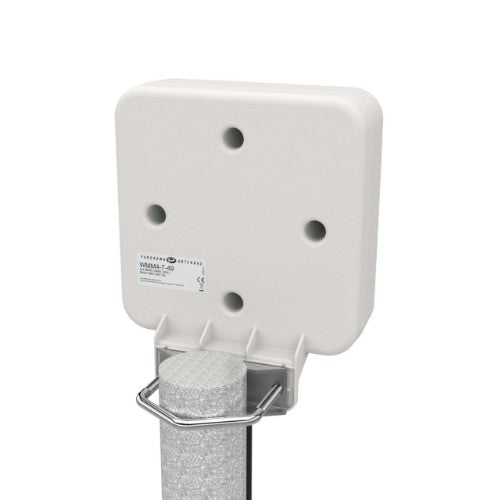

Omni-directional 4x4 MIMO 5G antenna, wall/pole mount, 700-4200MHz, 5 meter cable SMA-M
Description
The WMM4-7-49 antenna provides 4x4 MiMo solution for global 4G/5G networks from 698-960/1710-4900MHz. Incorporating four separately fed, ultra wideband elements within an IP rated compact housing, the WMM4-7-49 is suitable for a wide range of 4G Cat 18/20 and 5G fixed site and failover applications.
Specifications
| Performance |
|---|
| Antenna gain level (max) |
7.7 dBi |
| Frequency band |
0.698 - 4.2 GHz |
| Impedance |
50 Ω |
| Features |
|---|
| Connector gender |
Male |
| Antenna type |
Omni-directional antenna |
| Power handling |
10 W |
| Antenna connector type |
SMA |
| Antenna gain level (max) |
7.7 dBi |
| Frequency band |
0.698 - 4.2 GHz |
| Impedance |
50 Ω |
| Weight & dimensions |
|---|
| Width |
155 mm |
| Depth |
75 mm |
| Height |
155 mm |
| Technical details |
|---|
| Antenna gain level (max) |
7.7 dBi |
| Frequency band |
0.698 - 4.2 GHz |
| Antenna type |
Omni-directional antenna |
| Power handling |
10 W |
| Impedance |
50 Ω |
| Antenna connector type |
SMA |
| Mobile network |
|---|
| 5G bands supported |
700,800,850,900,1400 MHz |
