Description

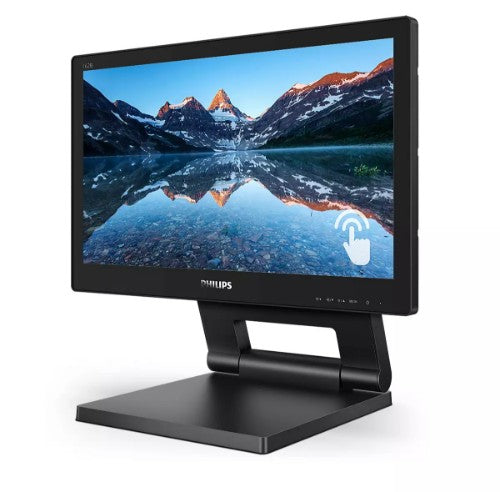

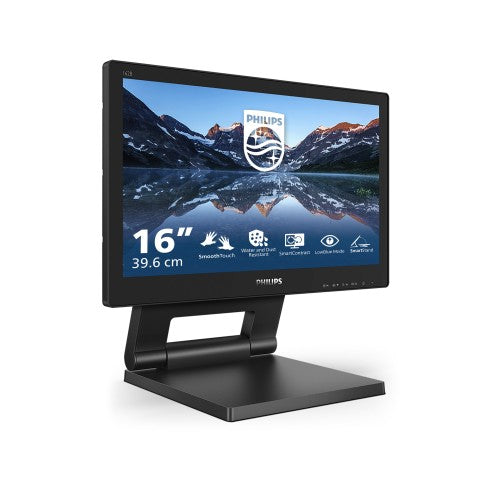

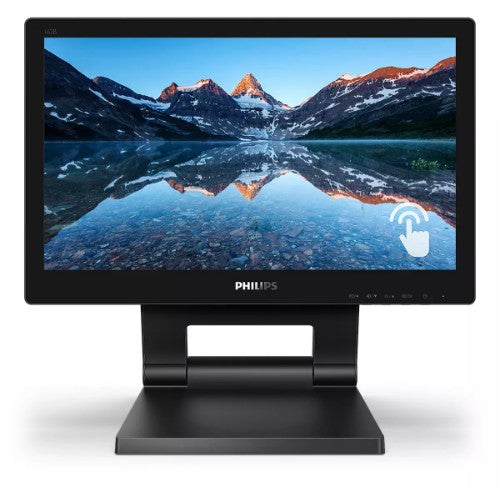

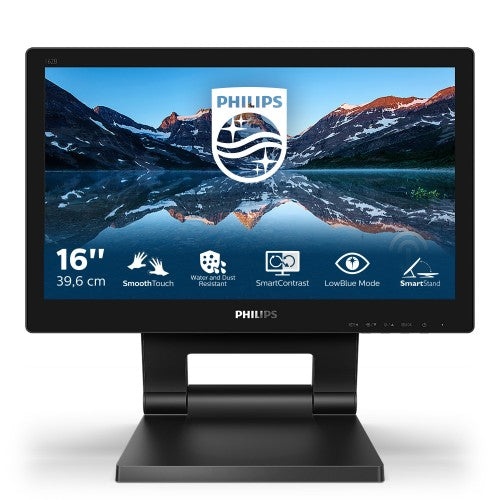

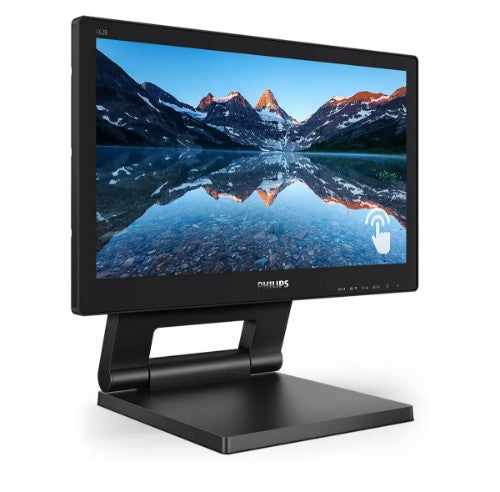

162B9T LCD monitor with SmoothTouch
Reasons To Buy

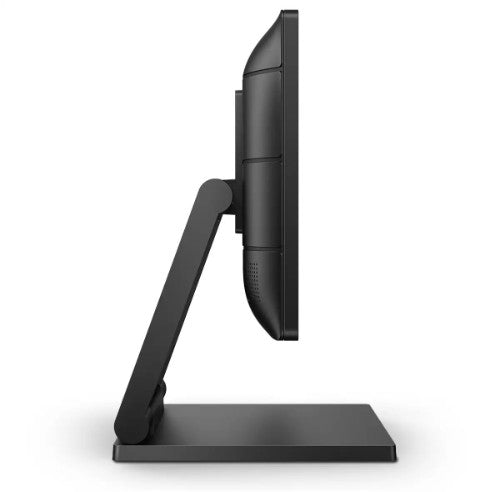

SmartStand with adjustable angles, boosts productivity
Philips SmartStand allows for flexible adjustment of the screen. Its Z-type structure with smooth tilt, height adjustment and folding capabilities enables you to use it in various ergonomic positions. You can set the stand in upright position for better touch control or recline it backwards, making it easy for you to draw or annotate. It even allows you to put the screen almost flat on the table for some applications when required.Description
A sturdy water- and dust-resistant touch-screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts productivity.Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 220 cd/m² |
| Screen shape | Flat |
| Dynamic contrast ratio marketing name | SmartContrast |
| Display number of colours | 262000 colours |
| Native aspect ratio | 16:9 |
| Pixel density | 100 ppi |
| DDC/CI | Yes |
| Colour gamut | 86% |
| Maximum refresh rate | 60 Hz |
| sRGB coverage (typical) | 100% |
| Display surface | Gloss |
| HD type | HD |
| Display technology | LCD |
| Contrast ratio (dynamic) | 20000000:1 |
| Viewing angle, horizontal | 90° |
| Viewing angle, vertical | 60° |
| Pixel pitch | 0.252 x 0.252 mm |
| Horizontal scan range | 30 - 60 kHz |
| Vertical scan range | 50 - 75 Hz |
| Aspect ratio | 16:9 |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Digital horizontal frequency | 30 - 60 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Separate H/V sync | Yes |
| Sync-on-green (SOG) | Yes |
| Backlight type | W-LED |
| Display resolution | 1366 x 768 pixels |
| Response time | 4 ms |
| Display diagonal | 39.6 cm (15.6") |
| Contrast ratio (typical) | 500:1 |
| Display panel size | 15.6 inch/39.6 cm |
| Surface hardness | 7H |
| NTSC coverage (typical) | 86% |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | TN |
| Display diagonal (metric) | 39.6 cm |
| Display sRGB | Yes |
| Touchscreen technology | Projected capacitive system |
| LED backlight | Yes |
| Display brightness | 220 cd/m² |
| Colour gamut standard | sRGB, NTSC |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Mean time between failures (MTBF) | 70000 h |
| AMD FreeSync | No |
| Compatible operating systems | Windows 10 / 8.1 / 8 / 7 |
| NVIDIA G-SYNC | No |
| Operating system installed | Windows 10 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Low Blue Light technology | Yes |
| Component video sync | Separate Sync, Sync-on-green (SOG) |
| Stylus pen hover function | Yes |
| Palm rejection | Yes |
| EasyRead mode | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 21 |
| On Screen Display (OSD) languages | Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
| Plug and Play | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Design | |
| Market positioning | Home |
| Heavy metals free | Hg (mercury) |
| Feet colour | Black |
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Mean time between failures (MTBF) | 70000 h |
| Exterior finish type | Textured |
| Ports & interfaces | |
| USB Type-A downstream ports quantity | 2 |
| Headphone out | Yes |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1.4 |
| DisplayPorts quantity | 1.2 |
| HDCP | Yes |
| Headphone outputs | 1 |
| PC Audio in | Yes |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| HDCP version | 1.4 |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 241 mm |
| Depth (without stand) | 42 mm |
| Width (without stand) | 378 mm |
| Mobile operating systems supported | Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
| Feet colour | Black |
| Cable lock slot | Yes |
| Mean time between failures (MTBF) | 70000 h |
| HDMI | Yes |
| Display viewable area (HxV) | 344.2 x 193.5 mm |
| Product colour | Black |
| User controls | SmartImage; Input; Brightness; Menu; Power On/Off |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS |
| Front bezel colour | Black |
| Sustainability certificates | ENERGY STAR |
| Doesn't contain | Mercury, PVC/BFR |
| Compliance certificates | RoHS, WEEE |
| Compatible operating systems | Windows 10 / 8.1 / 8 / 7 |
| Power supply type | External |
| Weight (with stand) | 5 kg |
| Folding angle | 70° |
| Touch method | Stylus, Finger, Glove* |
| Surface hardness | 7H |
| LowBlue mode | Yes |
| EasyRead mode | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Bundled software | SmartControl |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| LED indicators | Operation, Stand-by |

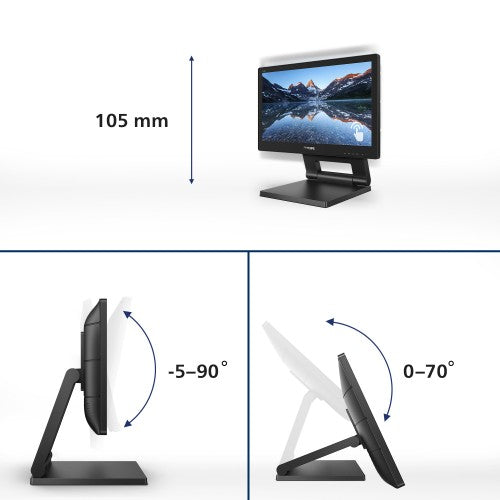

| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 21 |
| On Screen Display (OSD) languages | Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
| Plug and Play | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Palm rejection area | 25 x 25 mm |
| Tilt adjustment | Yes |
| Adjustable height (max) | 10.5 cm |
| Power | |
| Power supply type | External |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 7.1 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 5.6 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Operational conditions | |
| Non-operating altitude | 0 - 12192 m |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Weight & dimensions | |
| Height (without stand) | 241 mm |
| Depth (without stand) | 42 mm |
| Width (without stand) | 378 mm |
| Width (with stand) | 378 mm |
| Depth (with stand) | 227 mm |
| Height (with stand) | 347 mm |
| Dimensions (W x D x H) with stand | 378 x 347 x 227 mm |
| Weight (with stand) | 5 kg |
| Weight (without stand) | 2.01 kg |
| Package width | 445 mm |
| Package depth | 159 mm |
| Package height | 388 mm |
| Package weight | 6.31 kg |
| Packaging data | |
| Package width | 445 mm |
| Package depth | 159 mm |
| Package height | 388 mm |
| Package weight | 6.31 kg |
| Stand included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Bundled software | SmartControl |
| Stylus included | Yes |
| Packaging content | |
| Stand included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Bundled software | SmartControl |
| Stylus included | Yes |
| Indication | |
| LED indicators | Operation, Stand-by |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Doesn't contain | Mercury, PVC/BFR |
| Thin Client | |
| Operating system installed | Windows 10 |
| Other features | |
| Compatible operating systems | Windows 10 / 8.1 / 8 / 7 |
| Heavy metals free | Hg (mercury) |
| Mobile operating systems supported | Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
| Dimensions (W x D x H) with stand | 378 x 347 x 227 mm |

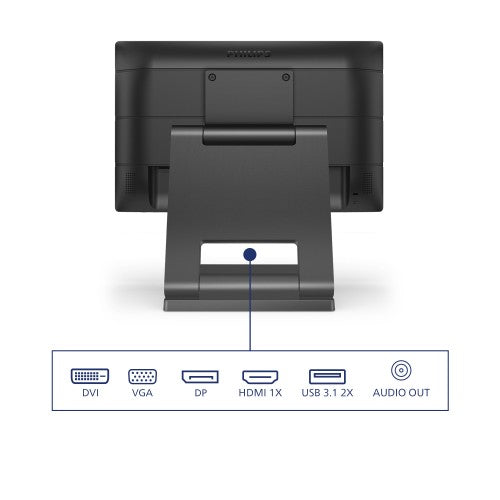

| Signal input | VGA (Analogue); DVI-D (digital, HDCP); DisplayPort 1.2; HDMI 1.4 |
| Monitor sync input signal | Separate Sync; Sync on Green |
| Mean time between failures (MTBF) | 70000 h |
| Display viewable area (HxV) | 344.2 x 193.5 mm |
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
| User controls | SmartImage; Input; Brightness; Menu; Power On/Off |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS |
| Folding angle | 70° |
| Touch method | Stylus, Finger, Glove* |
| LowBlue mode | Yes |
| EasyRead mode | Yes |
| Exterior finish type | Textured |
| International Protection (IP) code | IP65 |
| Height adjustment (vertical mode) | 10.5 cm |
| Height adjustment (horizontal mode) | 18.4 cm |
| Compliance certificates | RoHS, WEEE |
| Energy efficiency class (old) | A |
| Supplied AC adapter type | 1366 x 768 @ 60 Hz |
| Height (without stand) | 241 mm |
| Depth (without stand) | 42 mm |
| Width (without stand) | 378 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Power supply type | External |
| Manual | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Recycling data | |
| Recyclable packaging material | 100% |
| Certificates | |
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
