Description

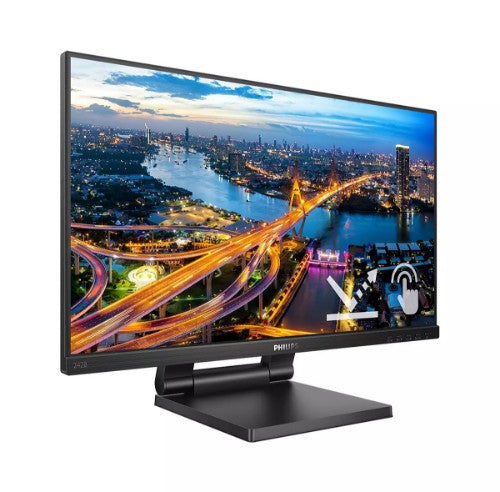

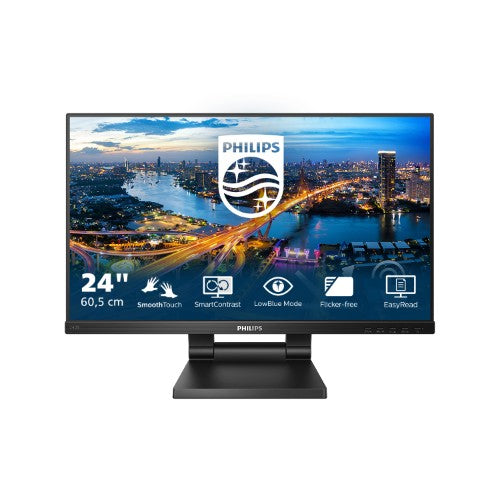

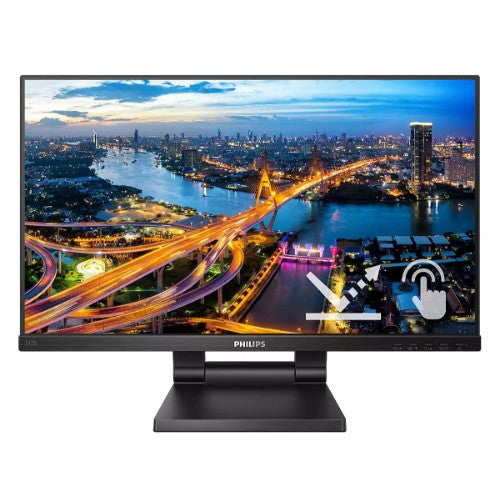

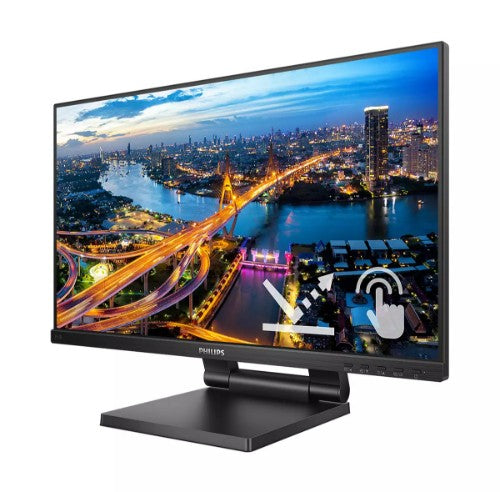

242B1TC LCD monitor with SmoothTouch
Reasons To Buy
SmartStand with adjustable angles, boosts productivity

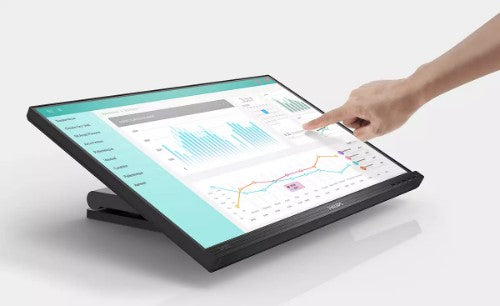

Philips SmartStand allows for flexible adjustment of the screen. Its Z-type structure with smooth tilt, height adjustment and folding capabilities enables you to use it in various ergonomic positions. You can set the stand in upright position for better touch control or recline it backwards, making it easy for you to draw or annotate. It even allows you to put the screen almost flat on the table for some applications when required.Description
A durable, anti-glare touchscreen for flexible use, with articulating stand to angle as you need. Advanced In-Cell Touch (AIT) offers a slimmer look, superior touch sensitivity for quick response, outstanding and clearer visibility.Specifications
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Mean time between failures (MTBF) | 70000 h |
| Built-in camera | No |
| AMD FreeSync | No |
| Compatible operating systems | Windows 10 / 8.1 / 8 / 7 |
| NVIDIA G-SYNC | No |
| Windows operating systems supported | Windows 10 |
| VESA Adaptive Sync support | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Component video sync | Separate Sync, Sync-on-green (SOG) |
| Palm rejection | Yes |
| EasyRead mode | Yes |
| Display | |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Dynamic contrast ratio marketing name | SmartContrast |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Pixel density | 93 ppi |
| DDC/CI | Yes |
| Colour gamut | 88% |
| Maximum refresh rate | 75 Hz |
| sRGB coverage (typical) | 102% |
| Adobe RGB coverage | 83% |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 50000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Aspect ratio | 16:9 |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Backlight type | W-LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 4 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1000:1 |
| Display panel size | 23.8 inch/60.5 cm |
| Surface hardness | 3H |
| NTSC coverage (typical) | 88% |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 60.5 cm |
| Display sRGB | Yes |
| Touch technology | Multi-touch |
| Touchscreen technology | Capacitive |
| Haze rate | 25% |
| LED backlight | Yes |
| Display brightness | 250 cd/m² |
| Colour gamut standard | sRGB, NTSC, Adobe RGB |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 21 |
| On Screen Display (OSD) languages | Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
| Plug and Play | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| Design | |
| Market positioning | Home |
| Heavy metals free | Hg (mercury) |
| Feet colour | Black |
| Certification | UKRAINIAN, CB, SEMKO, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS, CE Mark, ICES-003, FCC Class B, TUV Eye Comfort certified |
| Product colour | Black |
| Front bezel colour | Black |
| Mean time between failures (MTBF) | 70000 h |
| Exterior finish type | Textured |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | No |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 3 |
| Headphone out | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| PC Audio in | Yes |
| HDMI | Yes |
| I/O ports | USB 3.2 x 1 (Upstream); USB 3.2 x 3 (Downstream with 1 fast charge B.C 1.2) |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 323 mm |
| Depth (without stand) | 51 mm |
| Width (without stand) | 540 mm |
| Feet colour | Black |
| Cable lock slot | Yes |
| Mean time between failures (MTBF) | 70000 h |
| HDMI | Yes |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Product colour | Black |
| User controls | SmartImage; Input; Brightness; Menu; Power On/Off |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | UKRAINIAN; CB; SEMKO; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; CE Mark; ICES-003; FCC Class B; TUV Eye Comfort certified |
| Front bezel colour | Black |
| Sustainability certificates | ENERGY STAR, TCO |
| Doesn't contain | Mercury, PVC/BFR |
| Compliance certificates | RoHS |
| Compatible operating systems | Windows 10 / 8.1 / 8 / 7 |
| Power supply type | Internal |
| Weight (with stand) | 6.67 kg |
| Folding angle | 70° |
| Touch method | Finger |
| Surface hardness | 3H |
| LowBlue mode | Yes |
| EasyRead mode | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Software | |
| Windows operating systems supported | Windows 10 |
| Bundled software | SmartControl |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| LED indicators | Operation, Stand-by |
| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 21 |
| On Screen Display (OSD) languages | Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
| Plug and Play | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Palm rejection area | 30 x 30 mm |
| Tilt adjustment | Yes |
| Adjustable height (max) | 8 cm |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 15.6 W |
| Power consumption (off) | 0 W |
| Power consumption (PowerSave) | 9.8 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Operational conditions | |
| Non-operating altitude | 0 - 12192 m |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Weight & dimensions | |
| Height (without stand) | 323 mm |
| Depth (without stand) | 51 mm |
| Width (without stand) | 540 mm |
| Width (with stand) | 540 mm |
| Depth (with stand) | 227 mm |
| Height (with stand) | 403 mm |
| Weight (with stand) | 6.67 kg |
| Weight (without stand) | 3.34 kg |
| Package width | 620 mm |
| Package depth | 140 mm |
| Package height | 420 mm |
| Package weight | 9.01 kg |
| Packaging data | |
| Package width | 620 mm |
| Package depth | 140 mm |
| Package height | 420 mm |
| Package weight | 9.01 kg |
| Stand included | Yes |
| Manual | Yes |
| Cables included | HDMI, DisplayPort, USB Type-A to USB Type-B, AC |
| Bundled software | SmartControl |
| Packaging content | |
| Stand included | Yes |
| Manual | Yes |
| Cables included | HDMI, DisplayPort, USB Type-A to USB Type-B, AC |
| Bundled software | SmartControl |
| Indication | |
| LED indicators | Operation, Stand-by |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, TCO |
| Doesn't contain | Mercury, PVC/BFR |
| Other features | |
| Compatible operating systems | Windows 10 / 8.1 / 8 / 7 |
| Heavy metals free | Hg (mercury) |
| Signal input | VGA (Analogue); DisplayPort 1.2; HDMI 1.4 |
| Monitor sync input signal | Separate Sync; Sync on Green |
| Mean time between failures (MTBF) | 70000 h |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Certification | UKRAINIAN, CB, SEMKO, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS, CE Mark, ICES-003, FCC Class B, TUV Eye Comfort certified |
| User controls | SmartImage; Input; Brightness; Menu; Power On/Off |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | UKRAINIAN; CB; SEMKO; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; CE Mark; ICES-003; FCC Class B; TUV Eye Comfort certified |
| Folding angle | 70° |
| Touch method | Finger |
| LowBlue mode | Yes |
| EasyRead mode | Yes |
| Exterior finish type | Textured |
| Compliance certificates | RoHS |
| Energy efficiency class (old) | E |
| Height (without stand) | 323 mm |
| Depth (without stand) | 51 mm |
| Width (without stand) | 540 mm |
| HDMI | Yes |
| Surface hardness | 3H |
| Power supply type | Internal |
| Manual | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Recycling data | |
| Recyclable packaging material | 100% |
| Certificates | |
| Certification | UKRAINIAN, CB, SEMKO, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS, CE Mark, ICES-003, FCC Class B, TUV Eye Comfort certified |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
