Description

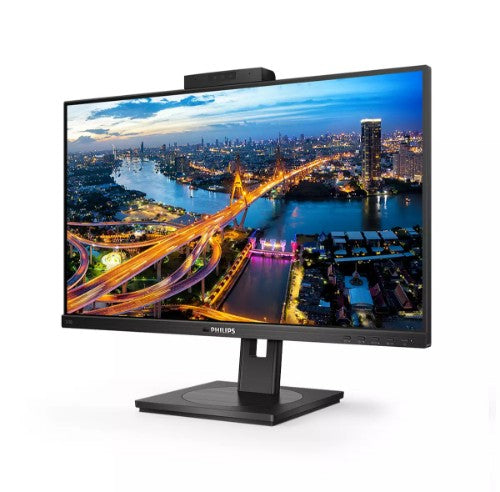

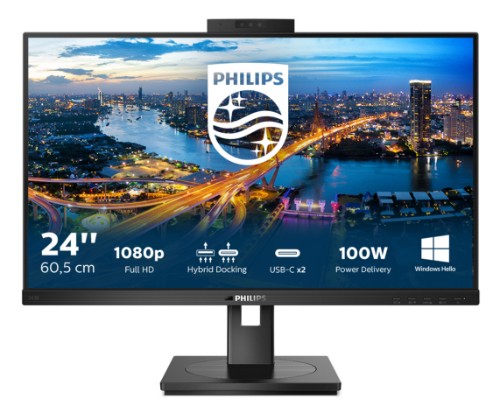

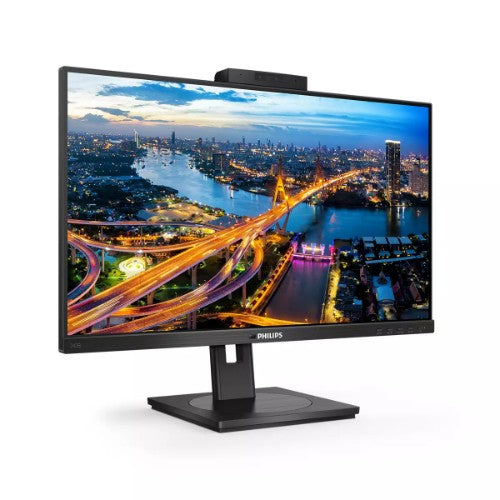

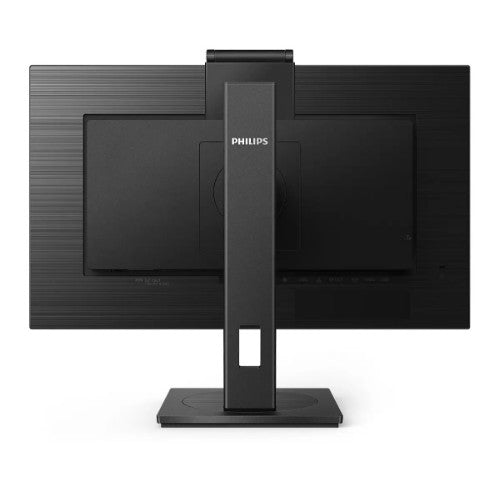

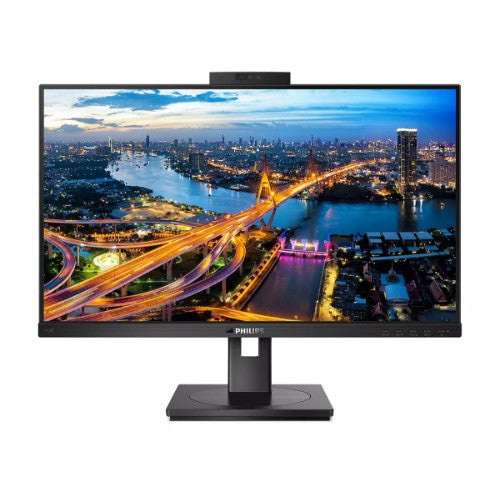

243B1JH LCD monitor with USB docking
Reasons To Buy
Built-in USB docking simplifies your connections
Philips USB-docking monitors deliver universal port replication, for a simple, clutter-free, notebook connection. Securely connect to networks, transmit data, video and audio from laptop only using a single USB cable. Even more, dock with USB Type-C port for extra power charging. For docking monitors with built-in DisplayLink Technology, users can benefit from forward and backward compatibility of USB with virtually any latest notebook. USB-docking can boost business productivity and reduce costs.Designed to meet environmental standards
Designed for sustainability, and reduced operating costs, this monitor meets environmental standards. Such as: ENERGY STAR, EPEAT, TCO Certified. For more information on certification, please visit: ENERGY STAR: https://www.energystar.gov/ EPEAT: https://www.epeat.net/ TCO Certified: https://tcocertified.com/Description
This Philips monitor offers 100W power delivery and a simple laptop docking solution. One USB dual mesh cable with Type C and A connectors delivers video, Ethernet, power-charge and DisplayLink. Windows Hello webcam offers greater security.Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Dynamic contrast ratio marketing name | SmartContrast |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Pixel density | 93 ppi |
| DDC/CI | Yes |
| Colour gamut | 88% |
| Maximum refresh rate | 75 Hz |
| sRGB coverage (typical) | 105% |
| Display surface | Matt |
| HD type | Full HD |
| Display technology | LCD |
| Contrast ratio (dynamic) | 50000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Aspect ratio | 16:9 |
| Viewable size, horizontal | 57.8 cm |
| Viewable size, vertical | 29.6 cm |
| Digital horizontal frequency | 30 - 85 kHz |
| Digital vertical frequency | 48 - 75 Hz |
| Backlight type | W-LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 4 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1000:1 |
| Display panel size | 23.8 inch / 60.5 cm |
| Surface hardness | 3H |
| NTSC coverage (typical) | 88% |
| Touchscreen | No |
| Panel type | IPS |
| Display diagonal (metric) | 60.5 cm |
| Display sRGB | Yes |
| Haze rate | 25% |
| LED backlight | Yes |
| Colour gamut standard | sRGB, NTSC |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Megapixel (approx.) | 2 MP |
| Mean time between failures (MTBF) | 70000 h |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| AMD FreeSync | No |
| Compatible operating systems | Mac OS X; Windows 10 / 8.1 / 8 / 7 |
| NVIDIA G-SYNC | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Component video sync | Separate Sync |
| HBR3 support | Yes |
| EasyRead mode | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 21 |
| On Screen Display (OSD) languages | Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
| Plug and Play | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Megapixel (approx.) | 2 MP |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| Design | |
| Heavy metals free | Hg (mercury) |
| Feet colour | Black |
| Certification | UKRAINIAN, CB, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, CE Mark, FCC Class B, ICES-003, TUV Eye Comfort certified |
| Product colour | Black |
| Front bezel colour | Black |
| Mean time between failures (MTBF) | 70000 h |
| Exterior finish type | Textured |
| Camera | |
| Megapixel (approx.) | 2 MP |
| Built-in camera | Yes |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 4 |
| USB Type-C downstream ports quantity | 1 |
| Headphone out | No |
| DVI port | No |
| DC-in jack | Yes |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Audio input | No |
| Audio output | Yes |
| HDMI | Yes |
| I/O ports | Upstream: USB-C 3.2 Gen 1 x 1; Downstream: USB-C x 1 (PD 15W), USB-A 3.2 x 4 (with 1 fast charge B.C 1.2) |
| HDMI version | 1.4 |
| DisplayPort version | 1.4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Number of USB Type-C upstream ports quantity | 1 |
| HDCP version | 1.4 |
| DisplayPort output | Yes |
| DisplayPort out quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Power Delivery revision | 3.0 |
| Technical details | |
| Height (without stand) | 323 mm |
| Depth (without stand) | 51 mm |
| Width (without stand) | 540 mm |
| Feet colour | Black |
| Cable lock slot | Yes |
| Mean time between failures (MTBF) | 70000 h |
| HDMI | Yes |
| Built-in microphone | Yes |
| Product colour | Black |
| User controls | SmartImage; Input; PowerSensor; Menu; Power On/Off |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | UKRAINIAN; CB; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; CE Mark; FCC Class B; ICES-003; TUV Eye Comfort certified |
| Front bezel colour | Black |
| Sustainability certificates | ENERGY STAR, TCO |
| Doesn't contain | Mercury, PVC/BFR |
| Compliance certificates | RoHS |
| Compatible operating systems | Mac OS X; Windows 10 / 8.1 / 8 / 7 |
| Power supply type | External |
| Light sensor | Yes |
| ECO mode | Yes |
| Weight (with stand) | 4.88 kg |
| Surface hardness | 3H |
| LowBlue mode | Yes |
| EasyRead mode | Yes |
| Touchscreen | No |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Bundled software | SmartControl |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| LED indicators | Operation, Stand-by |
| Swivelling | Yes |
| Swivel angle range | -180 - 180° |
| Tilt angle range | -5 - 30° |
| Pivot | Yes |
| On Screen Display (OSD) | Yes |
| Pivot angle | -90 - 90° |
| Number of OSD languages | 21 |
| On Screen Display (OSD) languages | Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
| Plug and Play | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Power | |
| Power supply type | External |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.35 W |
| Power consumption (typical) | 14.2 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 13.5 W |
| AC adapter output voltage | 19 V |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| Operational conditions | |
| Non-operating altitude | 0 - 12192 m |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Weight & dimensions | |
| Height (without stand) | 323 mm |
| Depth (without stand) | 51 mm |
| Width (without stand) | 540 mm |
| Width (with stand) | 540 mm |
| Depth (with stand) | 205 mm |
| Height (with stand) | 501 mm |
| Weight (with stand) | 4.88 kg |
| Weight (without stand) | 3.27 kg |
| Package width | 600 mm |
| Package depth | 198 mm |
| Package height | 465 mm |
| Package weight | 6.94 kg |
| Packaging data | |
| Package width | 600 mm |
| Package depth | 198 mm |
| Package height | 465 mm |
| Package weight | 6.94 kg |
| Stand included | Yes |
| Manual | Yes |
| Cables included | HDMI, DisplayPort, USB Type-C, DC, AC |
| Bundled software | SmartControl |
| Packaging content | |
| Stand included | Yes |
| Manual | Yes |
| Cables included | HDMI, DisplayPort, USB Type-C, DC, AC |
| Bundled software | SmartControl |
| Indication | |
| LED indicators | Operation, Stand-by |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, TCO |
| Doesn't contain | Mercury, PVC/BFR |
| Other features | |
| Compatible operating systems | Mac OS X; Windows 10 / 8.1 / 8 / 7 |
| Light sensor | Yes |
| ECO mode | Yes |
| Heavy metals free | Hg (mercury) |
| Monitor sync input signal | Separate Sync |
| Mean time between failures (MTBF) | 70000 h |
| Certification | UKRAINIAN, CB, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, CE Mark, FCC Class B, ICES-003, TUV Eye Comfort certified |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| User controls | SmartImage; Input; PowerSensor; Menu; Power On/Off |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | UKRAINIAN; CB; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; CE Mark; FCC Class B; ICES-003; TUV Eye Comfort certified |
| LowBlue mode | Yes |
| EasyRead mode | Yes |
| Exterior finish type | Textured |
| USB Power Delivery revision | 3.0 |
| HBR3 support | Yes |
| Compliance certificates | RoHS |
| Wake-on-LAN | Yes |
| Height (without stand) | 323 mm |
| Depth (without stand) | 51 mm |
| Width (without stand) | 540 mm |
| HDMI | Yes |
| Surface hardness | 3H |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Power supply type | External |
| Manual | Yes |
| Ethernet LAN | Yes |
| Touchscreen | No |
| USB Power Delivery (USB PD) | Yes |
| Front bezel colour | Black |
| Recycling data | |
| Recyclable packaging material | 100% |
| Post-consumer recycled plastic | 85% |
| Certificates | |
| Certification | UKRAINIAN, CB, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, CE Mark, FCC Class B, ICES-003, TUV Eye Comfort certified |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
