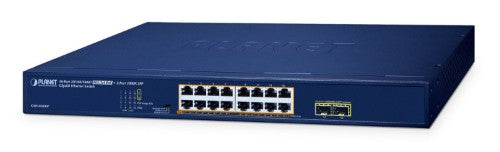

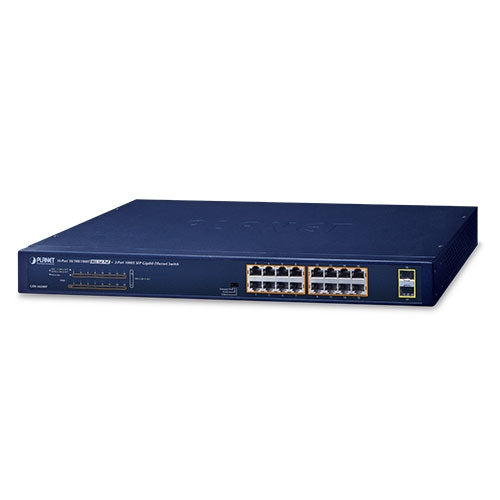

PLANET 16P Sw Gb PoE+ SFP 250W Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue

16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch

Key Features

• Physical Port
• ．16-port 10/100/1000BASE-T Gigabit RJ45 copper with 802.3at PoE+ injector function
• ．2 1000BASE-X SFP slots
• Power over Ethernet
• ．Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
• ．Up to 16 ports of IEEE 802.3af/802.3at devices powered
• ．Supports PoE power up to 30 watts for each PoE port, all power up to 250W PoE budget
• ．PD alive check function
• ．Each port supports 54V DC power to PoE powered device
• ．Auto detects powered device (PD)
• ．Circuit protection prevents power interference between ports
• ．Remote power feeding up to 100m
• Switching
• ．Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
• ．Flow control for full duplex operation and back pressure for half duplex operation
• ．Integrates address look-up engine, supporting 8K absolute MAC addresses
• ．9K jumbo frame
• ．IEEE 802.1Q VLAN transparency
• ．Hardware DIP switch for Standard, VLAN and Extend mode selection
• ．．VLAN mode: Ports 1 to 14 cannot communicate with each other, but can communicate with the uplink ports 15 to 16 and SFP ports 17 to 18
• ．．Extend mode: Ports1 to 8 have data rate of 10Mbps. The farthest transmission distance up to 250 meters and all ports can communicate with each other
• ．The DIP switch can isolate ports to prevent broadcast storm and defend DHCP spoofing
• ．Automatic address learning and address aging
• ．Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
• Hardware
• ．19-inch metal housing, 1U height
• ．LED indicators for PoE ready and PoE activity
• ．Ethernet Link Energy-saving technology
• ．．Link down power savings
• ．．Intelligent use of power based on cable length

Description

Learn more: https://www.planet.com.tw/en/product/gsw-1820hp-v3

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Auto MDI/MDI-X	Yes
Data transmission
Throughput	26.8 Mpps
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Store-and-forward	Yes
Design
Product colour	Blue
LED indicators	Yes
Housing material	Metal
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	5 A
Power source	AC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Heat dissipation	893 BTU/h
Weight & dimensions
Width	441.2 mm
Depth	207.5 mm
Height	44.2 mm
Weight	2.35 kg
Technical details
Product colour	Blue
Housing material	Metal
Indication
LED indicators	Yes
