Description

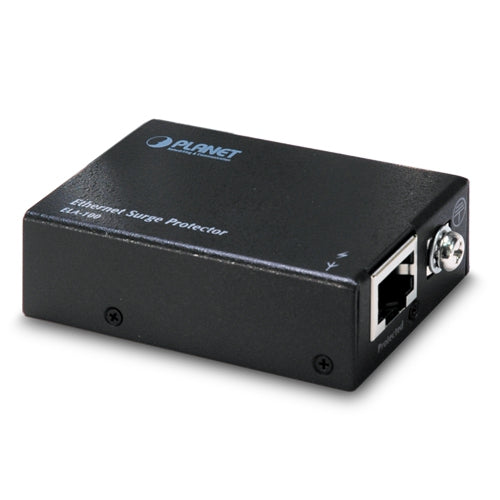

Ethernet Lightning Arrest Box
The ELA-100 Ethernet Lightning Arrest Box provides two passive 10 / 100 / 1000Base-T interfaces for connection of two Ethernet devices and one ground position for earth. The ELA-100 Ethernet Lightning Arrest Box is the ideal solution to preventing damages to Ethernet devices from surge voltages caused by lightning strikes.
Key Features
- 20 KA lightning surge protection
- Two passive 10 / 100 / 1000 Ethernet ports
- One ground position
- Flexibly designed for various Ethernet devices including PoE
Description
To prevent Ethernet devices from possible damage caused by surge voltages as a result of lightning strikes, PLANET has released a new Ethernet Lightning Arrest Box especially made in the current Ethernet environment.The ELA-100 Ethernet Lightning Arrest Box provides two passive 10 / 100 / 1000Base-T interfaces for connection of two Ethernet devices and one ground position for earth. The ELA-100 Ethernet Lightning Arrest Box is the ideal solution to preventing damages to Ethernet devices from surge voltages caused by lightning strikes.
Specifications
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Product colour | Black |
| Technical details | |
| Harmonized System (HS) code | 85364900 |
| Weight & dimensions | |
| Weight | 80 g |
| Width | 65 mm |
| Depth | 42 mm |
| Height | 20 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85364900 |
