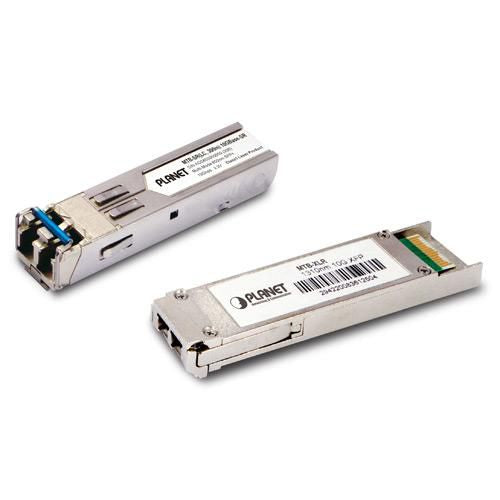

PLANET MTB-TLR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm

1-Port 10GBASE-LR SFP+ Fiber Optic Module, 10km, -40~75 degrees C

Description

The PLANET MTB family of 10G SFP+ fiber optic module that is designed to work with PLANET products with 10G SFP+ interface provides a high-performance 10G Ethernet network for enterprises, telecoms and ISPs. The MTB family is also well applicable for data center cloud computing. The deployment distance can be extended from 300 meters (multi-mode, LC), to up to 60 kilometers (single-mode, LC).

To meet the increasing demand of the Industrial Ethernet fiber solution, PLANET has released the MTB-T series 10GBASE-SR/LR/BX transceivers that can operate reliably in an electrically harsh, climatically demanding, and -40 to 75 degrees C operating temperature environment. The MTB-T series 10GBASE-SR/LR/BX transceivers are definitely easier and faster to connect than the 1000BASE-SX/LX/BX counterpart.

Specifications

Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Technical details
Plug and Play	Yes
Maximum transfer distance	100000 m
Wavelength	1310 nm
Performance
Product colour	Metallic
Plug and Play	Yes
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Maximum transfer distance	100000 m
Wavelength	1310 nm
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
Harmonized System (HS) code	85369010
Features
Product colour	Metallic
Plug and Play	Yes
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Logistics data
Harmonized System (HS) code	85369010
