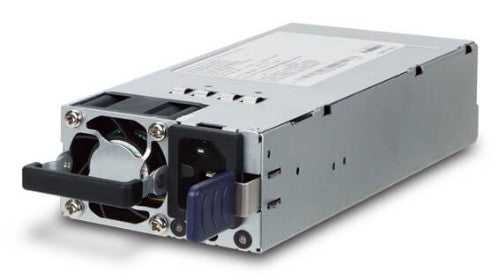

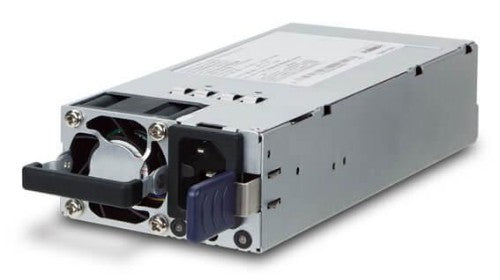

PLANET 1200W CRPS Power Supply, 100-240VAC

1200W CRPS Power Supply, 100-240VAC, 185 x 73.5 x 39.8mm

Description

PLANET PWR-CRPS Series are CRPS powers with input AC connector. It adopts the latest circuit design, obtaining compact structure, reliable performance and high PF. It provides stable performance, high output efficiency and wide input voltage range. The power is characterized with protections for low input voltage, output short circuit, over current and over voltage, backup for parallel operation and hot plug, equipped with a cooling fan.

The PWR-CRPS Series is designed in accordance with Safety Certification, meeting the requirements of Information Technology Equipment Security.

Specifications

Features
Input voltage	90 - 264 V
Output power	1200 W
Output voltage	54.5 V
Power supply type	Indoor
Purpose	Network switch
Power current type	AC-to-DC
Compatibility	GS-6322-24P4x
Product colour	Metallic, Black
Input frequency	47/63 Hz
Power
Input voltage	90 - 264 V
Output power	1200 W
Output voltage	54.5 V
Performance
Power supply type	Indoor
Purpose	Network switch
Power current type	AC-to-DC
Mean time between failures (MTBF)	200000 h
Compatibility	GS-6322-24P4x
Design
Product colour	Metallic, Black
Suitable for indoor use	Yes
Operational conditions
Operating temperature (T-T)	-5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	73 mm
Depth	185 mm
Height	39.8 mm
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Other features
Maximum current	22 A
