1 kVA, 900W, 80-300V, 40/70VHz, 140x329x191mm, 14.5kg, Black
Key Features
- USB with Human Interface Device (HID) support and Intelligent Slot for communication cards
- Wide input voltage range for all environments and support for AC generator
- Several versions - Type F (CEE 7/3), Type E (CEE 7/5), IEC also with UK input cable
- Easy to connect Battery Packs available
- Auto dimming screen (UPS is woken up with single button click)
Description

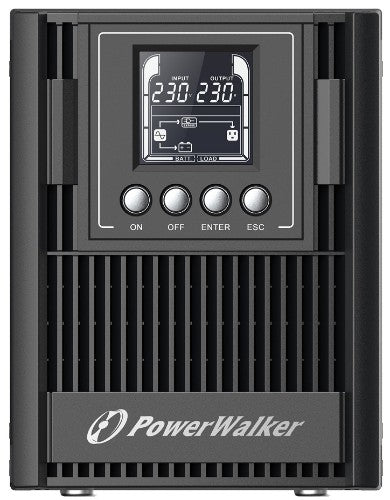

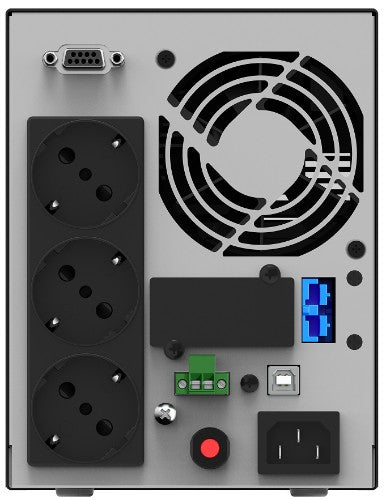

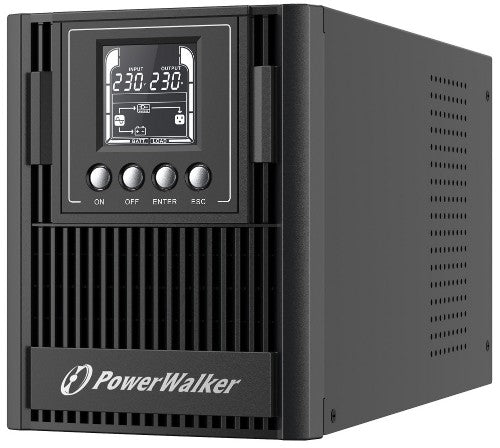

PowerWalker VFI 1000 AT
PowerWalker VFI 1000-3000 AT is an Online UPS series with double conversion technology, designed to safeguard your mission-critical equipment. Despite its professional application, the VFI AT series is easy to operate and comes inside a compact and economic package. Rather uniquely among Online UPS, the VFI AT series features outlet sockets for Type F, Type E and Type G plugs. This broadens its usability and allows for different types of application. Multiple optional accessories such as external battery packs and communication cards, enhance the functionality of the UPS and allow for a greater backup time.
Specifications
| Power |
|---|
| Output voltage regulation |
-1 - 1% |
| Output frequency regulation |
-0.5 - 0.5 Hz |
| Output power factor |
0.9 |
| Input power factor |
0.99 |
| Output power |
900 W |
| Input operation voltage (min) |
80 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Crest factor |
3:1 |
| Output power capacity |
1 kVA |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Pure sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Surge protection |
Yes |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Pure sine |
| Output voltage regulation |
-1 - 1% |
| Output frequency regulation |
-0.5 - 0.5 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output power factor |
0.9 |
| Input power factor |
0.99 |
| Output power |
900 W |
| Input operation voltage (min) |
80 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Crest factor |
3:1 |
| Output power capacity |
1 kVA |
| Input frequency |
40/70 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| AC outlets quantity |
3 AC outlet(s) |
| AC outlet types |
Type F |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| USB port type |
USB Type-B |
| Battery |
|---|
| Number of batteries supported |
2 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Design |
|---|
| Form factor |
Compact |
| Product colour |
Black |
| Built-in fan |
Yes |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Cooling |
|---|
| Built-in fan |
Yes |
| Weight & dimensions |
|---|
| Package width |
218 mm |
| Package depth |
432 mm |
| Package height |
274 mm |
| Weight |
14.5 kg |
| Width |
140 mm |
| Height |
191 mm |
| Depth |
329 mm |
| Packaging data |
|---|
| Package width |
218 mm |
| Package depth |
432 mm |
| Package height |
274 mm |
