1000 VA / 800 W, 110 - 160 VAC, 40 - 70 Hz, LCD, USB, RS-232, 3 x IEC, 9.8 kg
Description

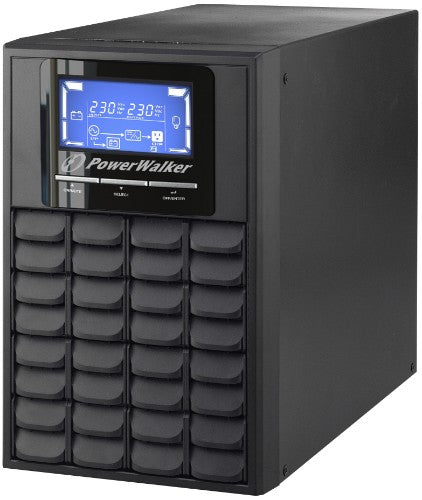

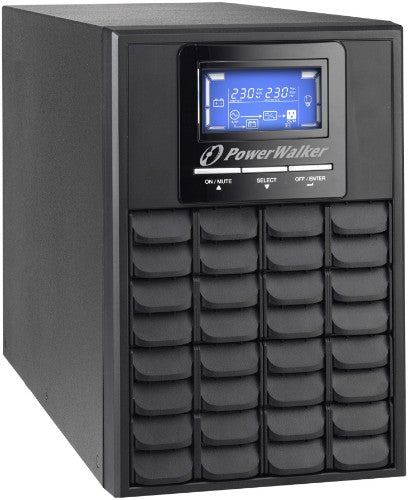

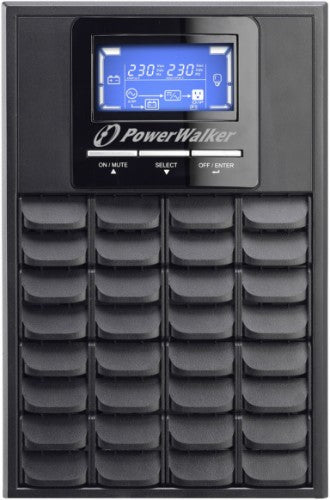

With true double - conversion online UPS design, PowerWalker VFI 10 00 C LCD provides powerful and overall protection to your sensitive devices. It can accep t wide input voltage for harsh environment. It offers full protection for critical devices such as sensitive servers, network/telephone communication systems as well as for industrial applications.
Specifications
| Power |
|---|
| Output voltage regulation |
1% |
| Output power |
800 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
88% |
| Output voltage Total Harmonic Distortion (THD) |
6% |
| Crest factor |
3:1 |
| Output power capacity |
1 kVA |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Number of input phases |
1 |
| Noise level |
50 dB |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Output voltage regulation |
1% |
| Number of input phases |
1 |
| Output power |
800 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
88% |
| Output voltage Total Harmonic Distortion (THD) |
6% |
| Noise level |
50 dB |
| Crest factor |
3:1 |
| Output power capacity |
1 kVA |
| Input frequency |
40/70 Hz |
| Ports & interfaces |
|---|
| AC outlets quantity |
3 AC outlet(s) |
| AC outlet types |
C13 coupler |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| Battery |
|---|
| Number of batteries supported |
2 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery recharge time |
4 h |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Weight & dimensions |
|---|
| Package width |
235 mm |
| Package depth |
360 mm |
| Package height |
340 mm |
| Weight |
9.8 kg |
| Width |
145 mm |
| Package weight |
11.3 kg |
| Height |
220 mm |
| Depth |
282 mm |
| Packaging data |
|---|
| Package width |
235 mm |
| Package depth |
360 mm |
| Package height |
340 mm |
| Bundled software |
ViewPower |
| Package weight |
11.3 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Packaging content |
|---|
| Bundled software |
ViewPower |
