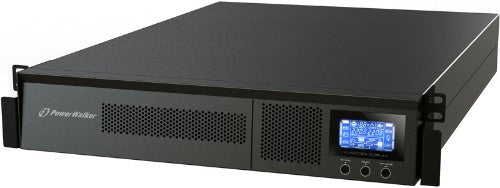

PowerWalker VFI 1000RM LCD Double-conversion (Online) 1 kVA 900 W 6 AC outlet(s)

2U, 1000VA/800W, 3 x 12V/ 7Ah, USB & RS232, 8 x IEC, RJ11/RJ45 (In/Out), 18.4kg, Black

Description

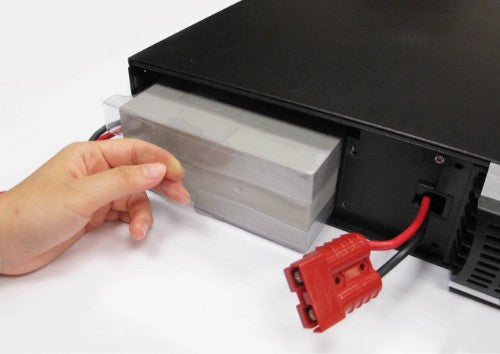

With true double-conversion online UPS design, PowerWalker VFI 1000RM LCD provides powerful and overall protection to your sensitive devices. It can accept wide input voltage for harsh environment. It offers full protection for critical devices such as sensitive servers, network/telephone communication systems as well as for industrial applications. With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower. - True double-conversion - Pure sine wave output - Hot-swappable battery design - Monitoring software included - Output power factor 0.8 - Wide input voltage range (110-300 VAC) - Input power factor correction 0.99 - 50/60 Hz frequency converter mode - ECO mode operation for energy saving - Programmable power management outlet - Emergency power off (EPO) function - Intelligent fan control for reduced noise level - Smart battery charger to extend battery life - Optional: SNMP module, dry contact AS/400 card, MBS, ATS, Battery Pack, Rack installation kit, RBS

Specifications

Power
Output voltage regulation	1%
Output frequency regulation	0.2 Hz
Output power factor	0.9
Input power factor	0.99
Output power	900 W
Input operation voltage (min)	160 V
Input operation voltage (max)	300 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Efficiency	86%
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2%
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	1 kVA
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Surge protection	Yes
Surge protection features	Fax, Modem, Network, Telephone
Power protection features	Overload
Noise level	45 dB
Audible alarm(s)	Yes
Features
UPS topology	Double-conversion (Online)
Waveform	Sine
Output voltage regulation	1%
Output frequency regulation	0.2 Hz
Output power factor	0.9
Input power factor	0.99
Output power	900 W
Input operation voltage (min)	160 V
Input operation voltage (max)	300 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Efficiency	86%
Surge protection	Yes
Surge protection features	Fax, Modem, Network, Telephone
Emergency Power Off (EPO)	Yes
Power protection features	Overload
Output voltage Total Harmonic Distortion (THD)	2%
Noise level	45 dB
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	1 kVA
Input frequency	45/65 Hz
Package type	Box

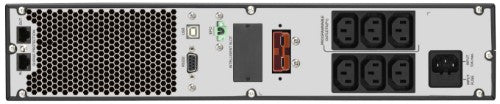

Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
Ethernet LAN (RJ-45) ports	2
Battery
Number of batteries supported	3
Battery voltage	12 V
Battery capacity	7 Ah
Battery recharge time	4 h
Typical backup time at half load	11 min
Typical backup time at full load	4 min
Hot-swap battery	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Cooling type	Active
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Harmonized System (HS) code	85078000
Cooling
Cooling type	Active
Weight & dimensions
Package type	Box
Package width	500 mm
Package depth	600 mm
Package height	240 mm
Weight	18.4 kg
Width	438 mm
Height	88 mm
Depth	480 mm
Packaging data
Cables included	Input power cable, Output power cable, USB cable
Rack mount kit	Yes
Manual	Yes
Package type	Box
Software CD	Yes
Package width	500 mm
Package depth	600 mm
Package height	240 mm
Bundled software	ViewPower
Logistics data
Products per pallet	16 pc(s)
Packaging content
Cables included	Input power cable, Output power cable, USB cable
Rack mount kit	Yes
Manual	Yes
Software CD	Yes
Bundled software	ViewPower
