Description
15kVA, 15kW, 520V, 46/64V, 65 dB
The PowerWalker VFI CPG 3/3 PF1 series is a professional commercial solution built in double conversion technology with power factor 1.0. Equipped with three-level inverter topology, it results in high efficiency reaching 95.5% in Line Mode and even 98.5% in ECO Mode. The series ensures low harmonic distortions and precise voltage regulation (1%). All phases have Active Power Factor Correction. Thanks to its modern design, the VFI CPG series reaches a very high power density (kVA output in relation to the size/volume of the unit). All models of this series offer generator support, dual input and allow parallel operation up to three units. Each unit is equipped by default with SNMP Card to increase control over the unit and offer embedded monitoring over IP. For this model battery numbers can be adjusted (between 32 and 40pcs, except 10K unit), allowing more flexibility and compatibility with existing battery banks. The three stage extendable charging design also enhances battery performance over its life time. On demand we can modify unit to include isolation transformer or negative power absorber. For the convenience of operation, a touch panel has been added to the unit.
Key Features
- Unity Power Factor (kVA = kW)
- Included SNMP Manager (the intelligent slot is by default used for communication card)
- Parallel operation up to 3 units
- Dual input and adjustable charging current
- Adjustable battery number up to 40pcs for high efficiency
Description

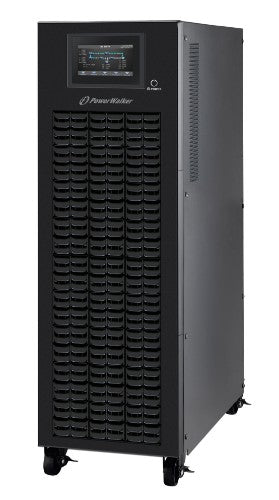

PowerWalker VFI 15K CPG PF1 3/3 BEThe PowerWalker VFI CPG 3/3 PF1 series is a professional commercial solution built in double conversion technology with power factor 1.0. Equipped with three-level inverter topology, it results in high efficiency reaching 95.5% in Line Mode and even 98.5% in ECO Mode. The series ensures low harmonic distortions and precise voltage regulation (1%). All phases have Active Power Factor Correction. Thanks to its modern design, the VFI CPG series reaches a very high power density (kVA output in relation to the size/volume of the unit). All models of this series offer generator support, dual input and allow parallel operation up to three units. Each unit is equipped by default with SNMP Card to increase control over the unit and offer embedded monitoring over IP. For this model battery numbers can be adjusted (between 32 and 40pcs, except 10K unit), allowing more flexibility and compatibility with existing battery banks. The three stage extendable charging design also enhances battery performance over its life time. On demand we can modify unit to include isolation transformer or negative power absorber. For the convenience of operation, a touch panel has been added to the unit.
Specifications
| Power | |
|---|---|
| Output voltage regulation | -1 - 1% |
| Output frequency regulation | -0.1 - 0.1 Hz |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 15000 W |
| Input operation voltage (min) | 190 V |
| Input operation voltage (max) | 520 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 400 V |
| Efficiency | 95.5% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 4% |
| Input current Total Harmonic Distortion (THD) | 6% |
| Crest factor | 3:1 |
| Output power capacity | 15 kVA |
| Efficiency (ECO mode) | 98.5% |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of input phases | 3 |
| Response time | 4 ms |
| Noise level | 65 dB |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Output voltage regulation | -1 - 1% |
| Output frequency regulation | -0.1 - 0.1 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of input phases | 3 |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Response time | 4 ms |
| Output power | 15000 W |
| Input operation voltage (min) | 190 V |
| Input operation voltage (max) | 520 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 400 V |
| Efficiency | 95.5% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 4% |
| Noise level | 65 dB |
| Input current Total Harmonic Distortion (THD) | 6% |
| Crest factor | 3:1 |
| Output power capacity | 15 kVA |
| Efficiency (ECO mode) | 98.5% |
| ECO mode | Yes |
| Input frequency | 46/64 Hz |
| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Battery | |
| Number of batteries supported | 32 |
| Battery voltage | 12 V |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Built-in fan | Yes |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Cooling | |
| Built-in fan | Yes |
| Weight & dimensions | |
| Weight | 43 kg |
| Width | 250 mm |
| Package weight | 67 kg |
| Height | 827 mm |
| Depth | 627 mm |
| Packaging data | |
| Package weight | 67 kg |
| Logistics data | |
| Products per pallet | 3 pc(s) |
| Harmonized System (HS) code | 85078000 |
