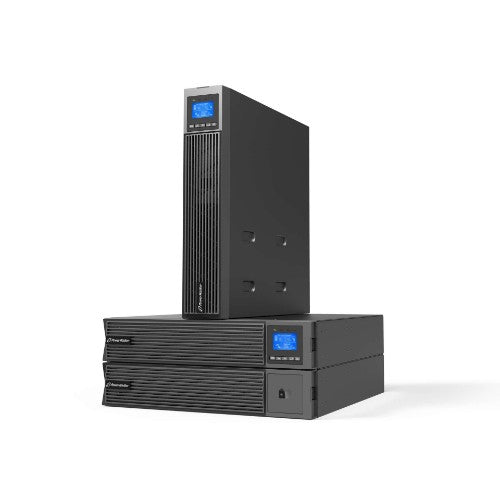

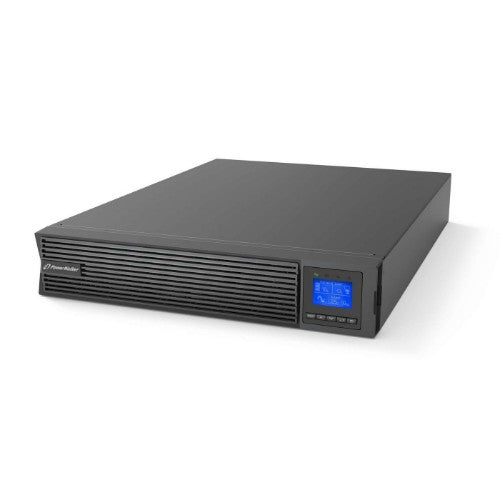

PowerWalker VFI 3000 ICR IoT UK uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 9 AC outlet(s)

3000 VA/3000 W, 40-70 Hz, 3:1, 1 x RJ-45, 1 x USB Type B, 1 x RS-232, 600 x 438 x 86 mm

Key Features

• IoT Solution with the PW-WinPower App
• Output Power Factor 1.0
• Optimized Battery Management (OBM) – for longer Battery Life
• EBM Auto-Detection for easy setup of External Baterry Packs
• Hot-Swappable Batteries!
• Built-in ethernet port offers Modbus TCP/ IP
• Internet Options: LAN Cable or WLAN Dongle

Description

The PowerWalker VFI 1000-3000 ICR IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly regardless of time and place. This cloud based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis.

This UPS series utilizes double conversion (Online) technology and features unity power factor, ensuring the availability of your mission critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS.

Specifications

Power
Output voltage regulation	1%
Output frequency regulation	0.2 Hz
Output power factor	1
Output power	3000 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	93%
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	3 kVA
Charging current	1.5 A
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of output phases	1
Number of input phases	1
Noise level	50 dB
Features
UPS topology	Double-conversion (Online)
Waveform	Sine
Output voltage regulation	1%
Output frequency regulation	0.2 Hz
Number of output phases	1
Number of input phases	1
Output power factor	1
Output power	3000 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	93%
Emergency Power Off (EPO)	Yes
Noise level	50 dB
Crest factor	3:1
Output power capacity	3 kVA
Input frequency	40 - 70 Hz
Charging current	1.5 A

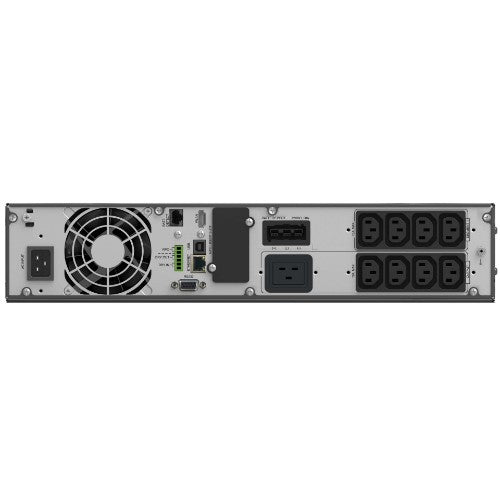

Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
Ethernet LAN (RJ-45) ports	1
USB port type	USB Type-B
Battery
Number of batteries supported	6
Battery voltage	12 V
Battery capacity	9 Ah
Battery recharge time	3 h
Typical backup time at half load	10.1 min
Typical backup time at full load	3.7 min
Hot-swap battery	Yes
Charging current	1.5 A
Design
International Protection (IP) code	IP20
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
Built-in fan	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Cooling
Built-in fan	Yes
Weight & dimensions
Package width	580 mm
Package depth	780 mm
Package height	240 mm
Weight	26.2 kg
Width	438 mm
Package weight	30.4 kg
Height	86 mm
Depth	600 mm
Packaging data
Cables included	Input power cable, Output power cable, USB cable
Manual	Yes
Package width	580 mm
Package depth	780 mm
Package height	240 mm
Package weight	30.4 kg
Packaging content
Cables included	Input power cable, Output power cable, USB cable
Manual	Yes
