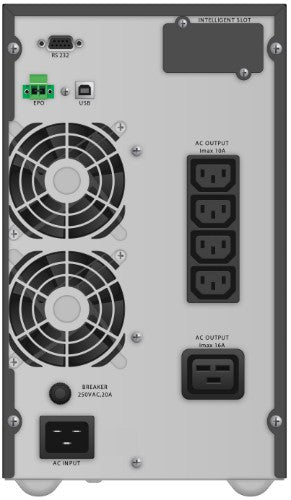

PowerWalker VFI 3000 TG uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 5 AC outlet(s)

3000VA / 2700W, Online, 4x C13, C19, USB HID, RS-232, Intelligent Slot, EPO, 6x 12V/9Ah, 22.2 kg

Description

- 3000VA / 2700W Online UPS with Power Factor 0.9
- C20 Input, 4x IEC C13 Outlet, 1x IEC C19 Outlet
- Batteries included: 6x 12V/9Ah
- Online technology with Power Factor 0.9
- Human Interface Device (USB HID) support
- Wide Input Range 100-300VAC for all environments
- Available with integrated batteries

The PowerWalker VFI 1000-3000 TG and its long-run version VFI 1000-3000 TGS offer a professional solution for home and office environment. UPSs are available with internal batteries or alternatively with stronger charger (6A instead of 1A) for an external battery solution.

VFI TG(S) series are detected as HID Power Device by the internal O/S drivers and can be managed without additional software. It finds its application in all dedicated systems for kiosks, ATMs as well as in high security level systems, where additional software is not allowed (i.e. banking).

Specifications

Power
Output voltage regulation	-2 - 2%
Output frequency regulation	-0.05 - 0.05 Hz
Output power factor	0.9
Input power factor	0.99
Output power	2700 W
Input operation voltage (min)	80 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	90%
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	3 kVA
Charging current	1.5 A
Performance
UPS topology	Double-conversion (Online)
Response time	4 ms
LED indicators	Yes
Noise level	50 dB
Features
UPS topology	Double-conversion (Online)
Output voltage regulation	-2 - 2%
Output frequency regulation	-0.05 - 0.05 Hz
Output power factor	0.9
Input power factor	0.99
Response time	4 ms
Output power	2700 W
Input operation voltage (min)	80 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	90%
Emergency Power Off (EPO)	Yes
Noise level	50 dB
Crest factor	3:1
Output power capacity	3 kVA
Input frequency	40 - 70 Hz
Charging current	1.5 A
Ports & interfaces
Emergency Power Off (EPO) connector	Yes
AC outlets quantity	5 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Number of batteries supported	6
Battery voltage	12 V
Battery capacity	9 Ah
Battery recharge time	4 h
Typical backup time at full load	4.5 min
Charging current	1.5 A
Design
Form factor	Tower
LED indicators	Yes
Product colour	Black
Cooling type	Active
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Harmonized System (HS) code	85078000
Cooling
Cooling type	Active
Weight & dimensions
Package width	500 mm
Package depth	464 mm
Package height	324 mm
Weight	22.2 kg
Width	190 mm
Package weight	24.6 kg
Height	328 mm
Depth	399 mm
Packaging data
Cables included	Input power cable, USB cable
Resource CD	Yes
Manual	Yes
Package width	500 mm
Package depth	464 mm
Package height	324 mm
Package weight	24.6 kg
Logistics data
Harmonized System (HS) code	85078000
Packaging content
Cables included	Input power cable, USB cable
Resource CD	Yes
Manual	Yes
