Description

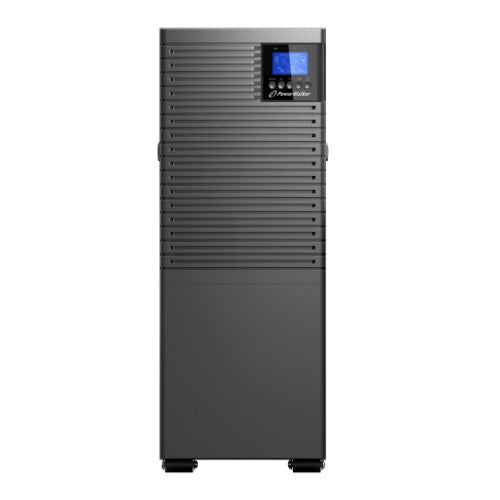

6 kVA, 6 kW, 160-276V, 40-70Hz, LCD
PowerWalker VFI 1000-10K ICT/ICR IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly – regardless of time and place. This cloud-based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis. This UPS series utilizes double conversion technology and features unity power factor, ensuring the availability of your mission-critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS. Stay up to date everywhere and anytime
Key Features
- IOT Solution with Cloud Integration and WinPower App
- Communication via LAN cable or WLAN Modem
- Online technology with Power Factor 1.0
- EBM Auto-Detection for easy setup of External Battery Packs
- Optimized Battery Management (OBM) for a longer Battery Life
Description
PowerWalker VFI 6000 ICT IoTPowerWalker VFI 1000-10K ICT/ICR IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly – regardless of time and place. This cloud-based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis. This UPS series utilizes double conversion technology and features unity power factor, ensuring the availability of your mission-critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS. Stay up to date everywhere and anytime
Specifications
| Power | |
|---|---|
| Output voltage regulation | ±1% |
| Output frequency regulation | ±0,1 Hz |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 6000 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 95% |
| Crest factor | 3:1 |
| Output power capacity | 6 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Response time | 0 ms |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output voltage regulation | ±1% |
| Output frequency regulation | ±0,1 Hz |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Response time | 0 ms |
| Output power | 6000 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 95% |
| Crest factor | 3:1 |
| Output power capacity | 6 kVA |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| AC outlet types | Terminal |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Number of batteries supported | 20 |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Battery recharge time | 3 h |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Packaging content | |
| Cables included | USB cable |
| Weight & dimensions | |
| Weight | 57.9 kg |
| Width | 225 mm |
| Height | 589 mm |
| Depth | 416 mm |
| Packaging data | |
| Cables included | USB cable |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
