Description

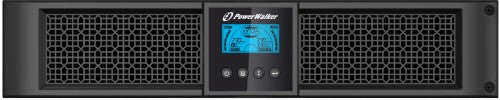

PowerWalker VI 1000 RT LCD - 1000VA/900W, 0-300VAC, 430/250 J, 50/60Hz, 12V / 7Ah, USB, RS-232, 8x IEC, RJ11, 17.8kg
- High Frequency Topology
- Pure Sinewave Output
- Output THDV < 3%
- Selectable Line Sensitive
- Swappable LCD Direction
- Extended Run Time
- Power Management Software
- Multi Communication Ports
- Optional SNMP and Relay Card
- Self-Monitoring and Fault Diagnosis
- Load Segments Control
- EPO Connector
Description

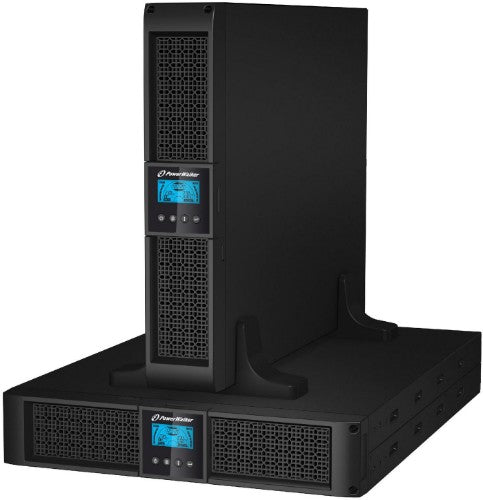

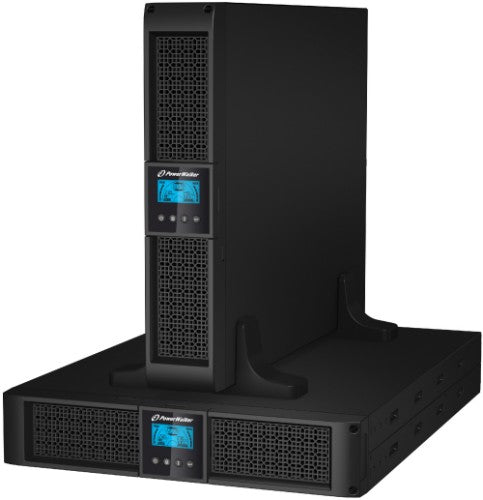

PowerWalker VI 1000 RT LCD is a Line-Interactive UPS with pure sine wave, microprocessor control and designed for fulfilling high quantity power protection demand. This series UPS can be applied to standard 19” rack, and the 2U height design facilities your whole system planning and installation.- High Frequency Topology
- Pure Sinewave Output
- Output THDV < 3%
- Selectable Line Sensitive
- Swappable LCD Direction
- Extended Run Time
- Power Management Software
- Multi Communication Ports
- Optional SNMP and Relay Card
- Self-Monitoring and Fault Diagnosis
- Load Segments Control
- EPO Connector
Specifications
| Power | |
|---|---|
| Output power | 900 W |
| Input operation voltage (min) | 154 V |
| Input operation voltage (max) | 288 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 430 J |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output power capacity | 1 kVA |
| Battery | |
| Battery type | 12V / 7Ah |
| Number of battery cells | 3 |
| Battery recharge time | 4 h |
| Performance | |
| LED indicators | Yes |
| Power protection features | Over power, Overload, Short circuit |
| Features | |
| Output power | 900 W |
| Input operation voltage (min) | 154 V |
| Input operation voltage (max) | 288 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 430 J |
| Power protection features | Over power, Overload, Short circuit |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output power capacity | 1 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | IEC 309 516C6 |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Form factor | Rackmount |
| LED indicators | Yes |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Weight | 17.8 kg |
| Width | 438 mm |
| Height | 86.5 mm |
| Depth | 436 mm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Battery type | 12V / 7Ah |
| Overload protection | Yes |
