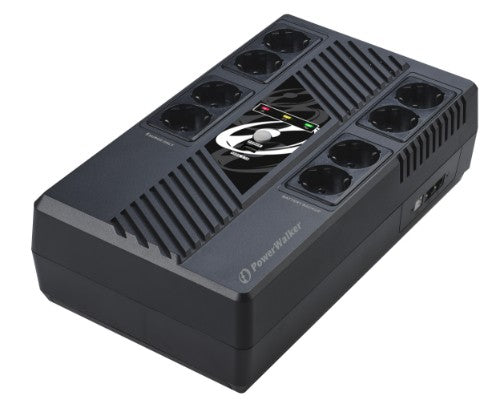

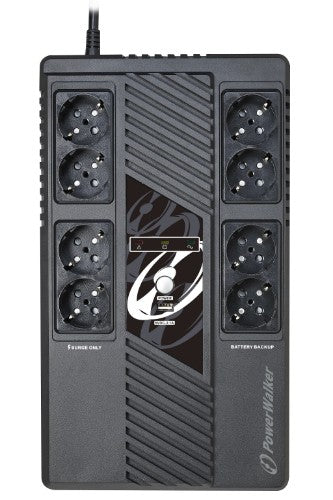

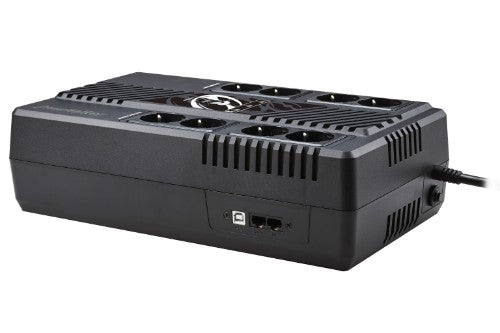

VI 600 MS, Line-Interactive, 600VA / 360W, 8 CEE 7/3 (Type F) Outlets, USB, RS-232, RJ-45/RJ-11 protection
Key Features
- Human Interface Device (HID) compatible USB connection (no additional drivers needed)
- Multi Socket Design
- Automatic Voltage Regulator
- USB Charging Port (2.1A)
- Easy user-replaceable battery design
Description
PowerWalker VI MS is a line-interactive UPS series with multiple sockets. 4 sockets with battery backup for critical loads and 4 sockets with bypass for non critical loads. The integrated AVR function ensures clean and stable output during power outages or voltage fluctuations. The UPS functions can be monitored and controlled via USB communication, either with a software or without (HID).
The multi socket design makes the VI MS series especially suitable for home and office applications. The UPS can be used on top of a desk or it can be mounted to a wall. Applications include home office, workstations, NAS etc.
Furthermore, the USB charging port (2.1A) offers additional functionality, and the design allows access to the battery compartment via the back panel for easy battery replacement.
Specifications
| Power |
|---|
| Output voltage regulation |
10% |
| Output power factor |
0.6 |
| Output power |
360 W |
| Input operation voltage (min) |
170 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Surge energy rating |
156 J |
| Power factor |
0.6 |
| Output power capacity |
0.6 kVA |
| Charging current |
2.1 A |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Response time |
6 ms |
| LED indicators |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Power protection features |
Overcharge, Overdischarge, Overload |
| Noise level |
40 dB |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Output voltage regulation |
10% |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output power factor |
0.6 |
| Response time |
6 ms |
| Output power |
360 W |
| Input operation voltage (min) |
170 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Surge energy rating |
156 J |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Power protection features |
Overcharge, Overdischarge, Overload |
| Power factor |
0.6 |
| Noise level |
40 dB |
| Output power capacity |
0.6 kVA |
| Input frequency |
50/60 Hz |
| Charging current |
2.1 A |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
No |
| Number of type F outputs |
8 |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
Type F |
| Serial ports quantity |
1 |
| RS-232 ports |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Battery |
|---|
| Number of batteries supported |
1 |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery recharge time |
8 h |
| Typical backup time at half load |
5.3 min |
| Typical backup time at full load |
0.1 min |
| Charging current |
2.1 A |
| Design |
|---|
| Form factor |
Compact |
| LED indicators |
Yes |
| Product colour |
Black |
| Cooling type |
Passive |
| Built-in fan |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Cooling |
|---|
| Cooling type |
Passive |
| Built-in fan |
No |
| Weight & dimensions |
|---|
| Package width |
146 mm |
| Package depth |
425 mm |
| Package height |
210 mm |
| Weight |
4.4 kg |
| Width |
200 mm |
| Package weight |
4.7 kg |
| Height |
100 mm |
| Depth |
345 mm |
| Packaging data |
|---|
| Package width |
146 mm |
| Package depth |
425 mm |
| Package height |
210 mm |
| Package weight |
4.7 kg |
