1.75" - 4", Max 3 lbs, aluminum, 2.09 lb
Key Features
- 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
- Includes 4" clamping base for posts and a short length, C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Description

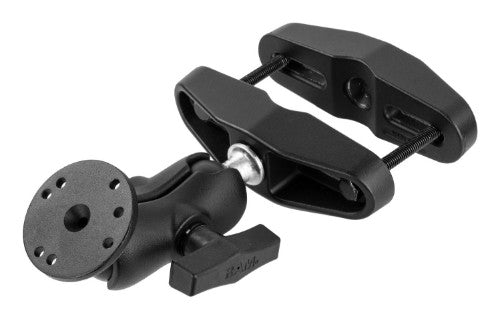

The RAM® Universal Post Clamp Mount with Round Plate - C Size Short Arm (RAM-101U-B-247) is a mounting solution designed to secure large handheld devices to forklifts. This kit consists of one (1) double socket C size medium arm, one (1) round plate with C size ball, and one (1) square post clamp. The square post clamp will wrap around a square post with a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. The RAM® rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.
Specifications
| Technical details |
|---|
| Maximum weight |
1.81436948 kg |
| Mounting hole pattern (W x D) |
29.9974 x 37.9984 mm |
| Maximum weight capacity |
1.81436948 kg |
| Material |
Aluminium |
| Product colour |
Black |
| Ball diameter |
3.81 cm |
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
|---|
| Weight |
948.008053 g |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
