60 W, 500 mA, 5V - 20V @ 3A, 0.55 lb
Key Features
- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- RAM® Mounts Compatible™
Description

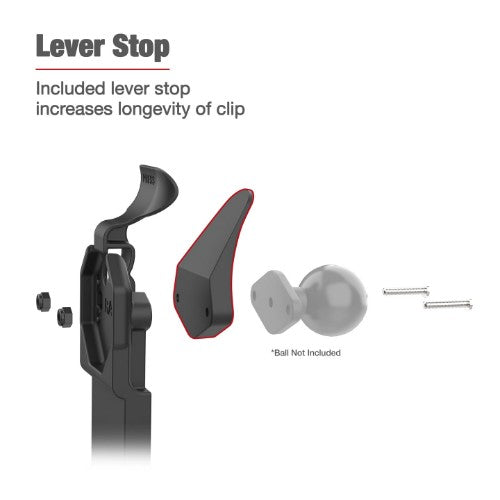

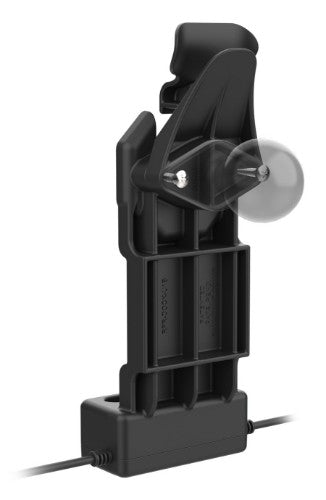

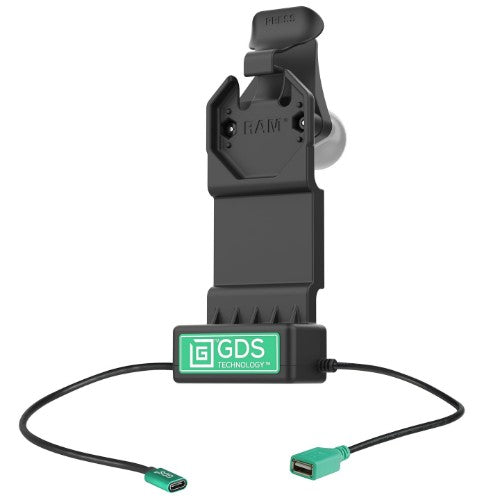

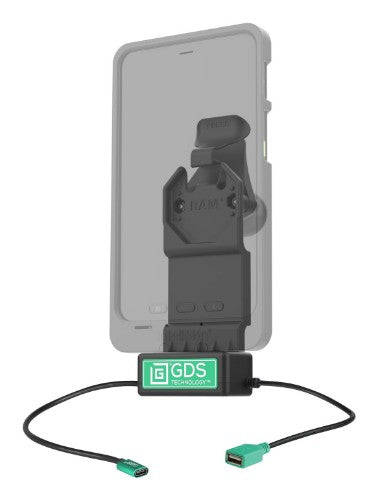

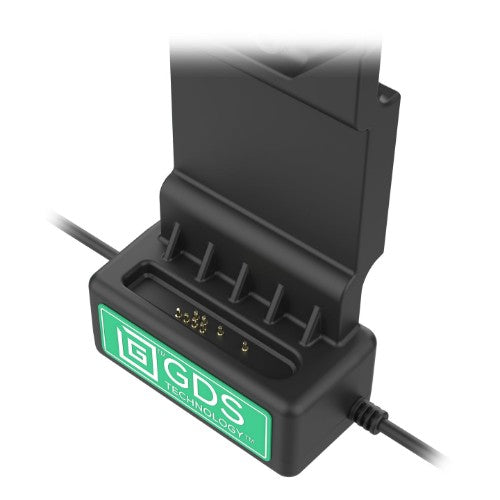

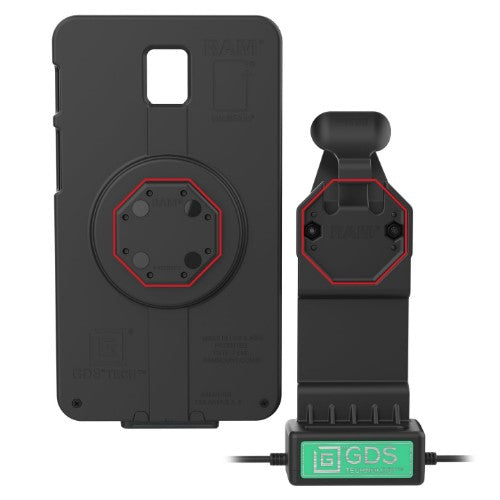

The GDS® Uni-Conn™ Dock + Single USB-A (RAM-GDS-DOCK-U1CDU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to one peripheral device into your solution with the USB-A female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
Specifications
| Performance |
|---|
| Basic device type |
Tablet |
| Brand compatibility |
Samsung |
| Compatibility |
Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+ |
| Product colour |
Black, Green |
| Material |
Composite |
| Ports & interfaces |
|---|
| Docking connector type |
USB Type-C |
| USB Power Delivery up to |
60 W |
| Power |
|---|
| Power source type |
DC |
| Power consumption (max) |
60 W |
| DC output voltage |
20, +5V |
| DC output current |
3 A |
| Weight & dimensions |
|---|
| Cable length |
0.215 m |
| Weight |
249.475804 g |
| Packaging data |
|---|
| Quantity |
1 |
| Design |
|---|
| Product colour |
Black, Green |
| Material |
Composite |
| Technical details |
|---|
| Quantity |
1 |
| Cable length |
0.215 m |
