Description
fi-7600 - ADF, 50.8 x 69 mm - 304.8 x 431.8 mm, 2x CCD, 600dpi, USB 3.1, 11 kg
Key Features
- Straight paper path and Paper Picking Control function to ensure stable paper feeding
- Manual Feed Mode for handling various thicknesses and sizes
- Paper Protection function and Skew Reducer to protect important documents

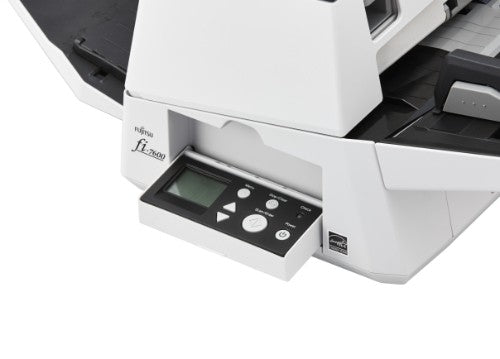

- Back-lit LCD panel for easy operation
- Independent Side Guides to easily align mixed batches
Description
The fi-7600 achieves scanning speeds of 100 ppm/200 ipm (A4 landscape, color, 200/300 dpi), is capable of loading up to 300 sheets at a time and scanning up to as many as 44,000 sheets a day. With its high quality technologies and user-friendly design, the scanner is suitable for continuous high volume scanning. The scanner's ability to scan various documents such as thin paper, plastic cards, envelopes and long page documents boosts user productivity.Specifications
| Scanning | |
|---|---|
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| Selectable background colour | Yes |
| Background colours | Black, White |
| Black/white scanning colour modes | Grayscale, Monochrome |
| Maximum scan size | 304.8 x 5588 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| ADF scan speed (b/w, A4) | 100 ppm |
| ADF scan speed (colour, A4) | 100 ppm |
| Duplex ADF scan speed (b/w, A4) | 200 ipm |
| Duplex ADF scan speed (colour, A4) | 200 ipm |
| Sensor type | Dual CCD |
| Light source | White LED (4x) |
| Daily duty cycle (max) | 44000 pages |
| Design | |
| Built-in display | Yes |
| Scanner type | ADF + Manual feed scanner |
| Display | LCD |
| Product colour | Black, White |
| Performance | |
| Sensor type | Dual CCD |
| Light source | White LED (4x) |
| Daily duty cycle (max) | 44000 pages |
| Scan drivers | ISIS, TWAIN |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 300 sheets |
| Paper handling | |
| Maximum ISO A-series paper size | A3 |
| Scanning media types supported | Envelopes, Plain paper, Plastic Card, Thin paper |
| Maximum scan area (ADF) | 304.8 x 431.8 mm |
| Minimum scan area (ADF) | 50.8 x 69 mm |
| Auto Document Feeder (ADF) media weight | 20 - 413 g/m² |
| Multi feed detection | Yes |
| ISO A-series sizes (A0...A9) | A3, A3+, A4, A5, A6, A7, A8 |
| Ports & interfaces | |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| USB port | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Socket connector type | C5 |
| Software | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64 |
| Bundled software | PaperStream Capture, PaperStream IP, Software Operation Panel, Error Recovery Guide, Scanner Central Admin tools |
| Scan drivers | ISIS, TWAIN |
| Drivers included | Yes |
| Power | |
| Power consumption (typical) | 64 W |
| Power consumption (standby) | 0.35 W |
| Power consumption (off) | 0.35 W |
| Input voltage | 100-240 V |
| Power supply type | AC |
| Power consumption (PowerSave) | 1.7 W |
| Weight & dimensions | |
| Width | 236 mm |
| Depth | 432 mm |
| Height | 214 mm |
| Weight | 11 kg |
| Package depth | 595 mm |
| Package weight | 16 kg |
| Package width | 396 mm |
| Package height | 506 mm |
| Packaging data | |
| Package depth | 595 mm |
| Package weight | 16 kg |
| Package width | 396 mm |
| Package height | 506 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB |
| Stacker | Yes |
| ADF paper chute | Yes |
| AC adapter included | Yes |
| Bundled software | PaperStream Capture, PaperStream IP, Software Operation Panel, Error Recovery Guide, Scanner Central Admin tools |
| Drivers included | Yes |
| Technical details | |
| Pallet gross width | 101.6 cm |
| Pallet gross length | 121.9 cm |
| Black/white scanning colour modes | Grayscale, Monochrome |
| Scanner type | ADF + Manual feed scanner |
| Country of origin | Indonesia |
| Product colour | Black, White |
| Downloadable software | ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader, 2D barcode |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 8471607000 |
| Wood packaging weight | 0 g |
| Plastic packaging weight | 15 g |
| Paper packaging weight | 2.4 kg |
| Metal packaging weight | 0 g |
| Compliance certificates | RoHS |
| Display | |
| Display | LCD |
| Media formats | |
| ISO A-series sizes (A0...A9) | A3, A3+, A4, A5, A6, A7, A8 |
| Features | |
| Country of origin | Indonesia |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Other features | |
| Selectable background colour | Yes |
| Background colours | Black, White |
| Downloadable software | ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader, 2D barcode |
| Compliance certificates | RoHS |
| Scanner type | ADF + Manual feed scanner |
| Country of origin | Indonesia |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin | Indonesia |
| Quantity per pack | 1 pc(s) |
| Pallet gross width | 101.6 cm |
| Pallet gross length | 121.9 cm |
| Harmonized System (HS) code | 8471607000 |
| Wood packaging weight | 0 g |
| Plastic packaging weight | 15 g |
| Paper packaging weight | 2.4 kg |
| Metal packaging weight | 0 g |
| Products per pallet (sea) | 15 pc(s) |
| Products per pallet (air) | 10 pc(s) |
| Polystyrene (EPS/EPP) packaging weight | 200 g |
| Pallet height (sea) | 166.8 cm |
| Pallet height (air) | 116.2 cm |
| Foil packaging weight | 15 g |
| Glass packaging weight | 0 g |
| Cardboard packaging weight | 1.2 kg |
