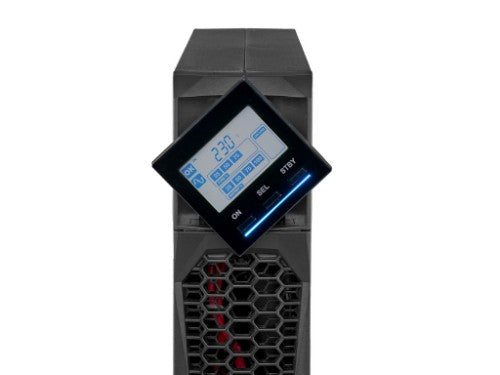

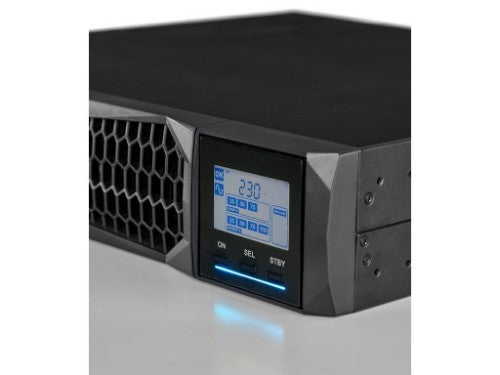

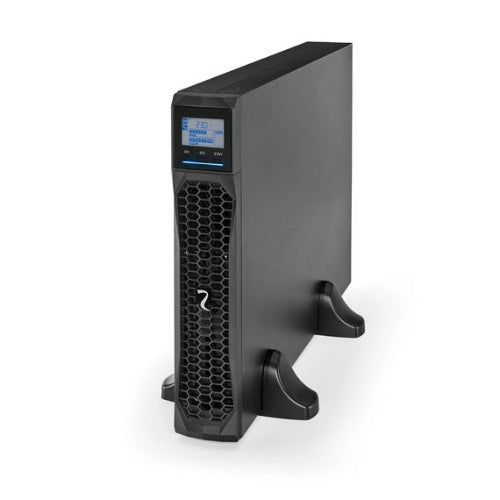

Riello Sentinel Dual2 1500, Double-conversion (Online), 1.5 kVA, 1500 W, Sine, 220 V, 240 V
Description
Riello Sentinel Dual2 1500. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 4 h. Form factor: Tower, Product colour: Black, Display type: LCD. Cables included: Input power cable, Serial, USB cable
Specifications
| Power |
|---|
| Input power factor |
1 |
| Output power |
1500 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Surge energy rating |
300 J |
| Efficiency |
93.7% |
| Crest factor |
3:1 |
| Output power capacity |
1.5 kVA |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Response time |
20 ms |
| LED indicators |
Yes |
| Power protection features |
Over current, Short circuit, Over voltage, Under voltage |
| Noise level |
40 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Input power factor |
1 |
| Response time |
20 ms |
| Output power |
1500 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Surge energy rating |
300 J |
| Efficiency |
93.7% |
| Power protection features |
Over current, Short circuit, Over voltage, Under voltage |
| Noise level |
40 dB |
| Crest factor |
3:1 |
| Output power capacity |
1.5 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| RS-232 ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
4 h |
| Hot-swap battery |
Yes |
| Design |
|---|
| Form factor |
Tower |
| LED indicators |
Yes |
| Product colour |
Black |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Manual |
Yes |
| Weight & dimensions |
|---|
| Package width |
550 mm |
| Package depth |
600 mm |
| Package height |
245 mm |
| Weight |
16 kg |
| Width |
87 mm |
| Package weight |
19.5 kg |
| Height |
450 mm |
| Depth |
425 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Manual |
Yes |
| Package width |
550 mm |
| Package depth |
600 mm |
| Package height |
245 mm |
| Package weight |
19.5 kg |
