Description

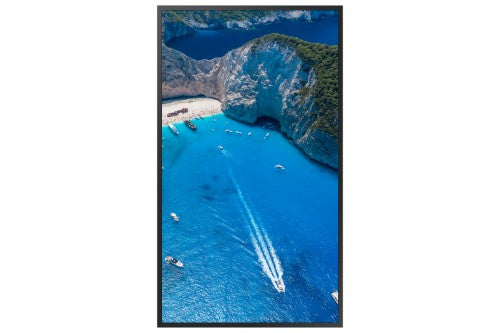

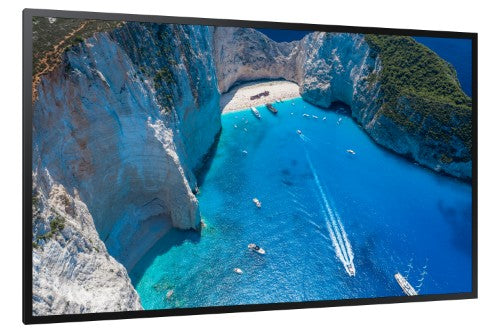

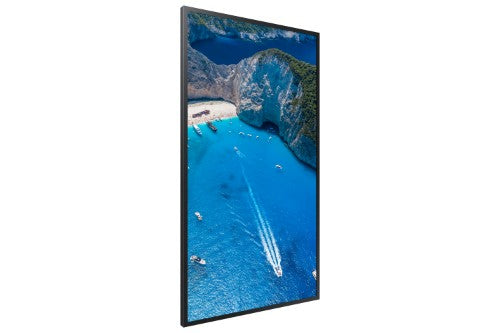

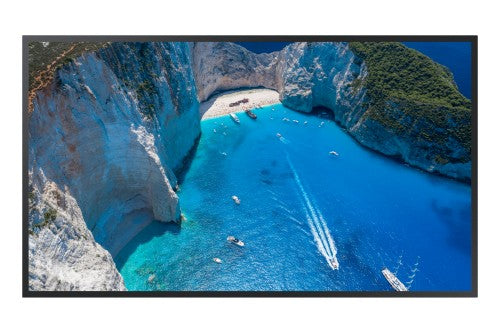

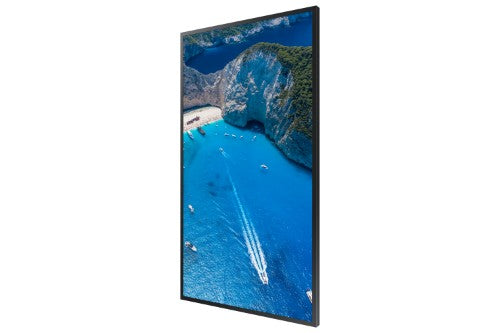

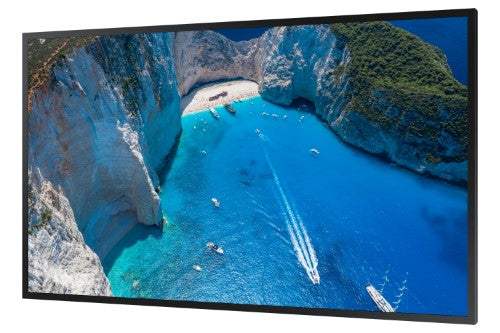

Samsung OM75A, Digital signage flat panel, 190.5 cm (75"), LCD, 3840 x 2160 pixels, Wi-Fi, 24/7
Description
Samsung OM75A. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 4000 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen 5.0. Product colour: BlackSpecifications
| Display | |
|---|---|
| Panel type | ADS |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Touchscreen | No |
| Display technology | LCD |
| Colour gamut | 72% |
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 4000 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 14 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.4296 x 0.4296 mm |
| Vertical scan range | 24 - 75 Hz |
| Horizontal scan range | 15 - 85 kHz |
| Haze rate | 2.5% |
| RGB colour space | NTSC |
| Pixel frequency (max) | 77 MHz |

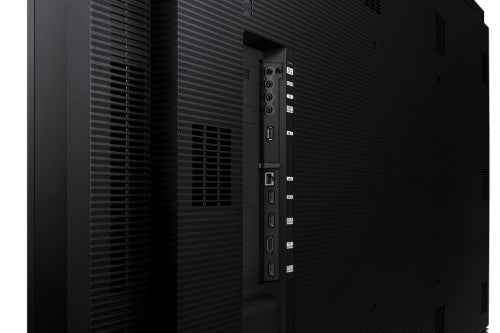

| Ports & interfaces | |
| Remote (IR) input | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| DisplayPorts in | 1 |
| HDMI version | 2.0 |
| Infrared data port | Yes |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| DVI port | No |
| RS-232 interface | Yes |
| USB ports quantity | 1 |
| Design | |
| Product design | Digital signage flat panel |
| Bezel width (top) | 2.39 cm |
| Bezel width (side) | 2.39 cm |
| Bezel width (bottom) | 2.39 cm |
| Product colour | Black |
| Panel mounting interface | 400 x 400 mm |
| Certification | Class A 60950-1 |
| VESA mounting | Yes |
| Screen shape | Flat |
| Bezel colour | Charcoal Black |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Wi-Fi | Yes |
| Power | |
| Power consumption (sleep) | 0.5 W |
| Power consumption (typical) | 900 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Computer system | |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Operating system installed | Tizen 5.0 |
| Built-in processor | Yes |
| Weight & dimensions | |
| Display width | 1703.1 mm |
| Display depth | 85.4 mm |
| Display height | 981.1 mm |
| Display weight | 37.2 kg |
| Packaging data | |
| Package width | 1890 mm |
| Package depth | 215 mm |
| Package height | 1144 mm |
| Package weight | 48.5 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | Class A 60950-1 |
| Technical details | |
| VESA mounting | Yes |
| Panel type | ADS |
| DisplayPort version | 1.2 |
| RJ-45 input ports | 1 |
| Video out | 1 |
| DisplayPorts in | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Audio out (mini jack) | 1 |
| Thin Client | |
| Operating system installed | Tizen 5.0 |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Panel type | ADS |
| DisplayPort version | 1.2 |
| RJ-45 input ports | 1 |
| Video out | 1 |
| DisplayPorts in | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Wi-Fi | Yes |
| Display technology | LCD |
| Bezel width (top) | 2.39 cm |
| Bezel width (side) | 2.39 cm |
| Bezel width (bottom) | 2.39 cm |
