Description
PS105, Fast Ethernet, IEEE1284B, RJ-45, SSL/TLS, HTTPs, IEEE 802.1x, 80g
Description

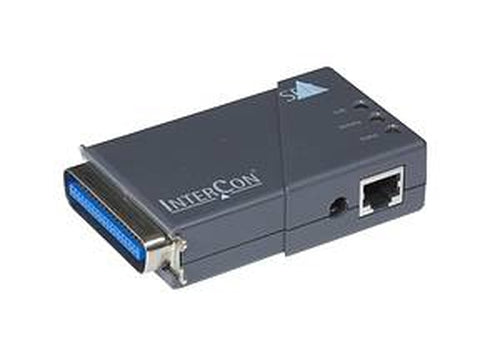

PS105 Print Server The PS105 is a compact Ethernet print server with one port to connect a parallel output device to a network. It supports 10BaseT and 100BaseTX networks (RJ45 connector). The pocket print server PS105 plugs directly into the parallel port – no additional cable required! The network speed used is automatically adopted. For all common operating systems: Windows, Apple, Novell, Linux. Security: Encryption, Authentication, Acces Control, and more! General Print Server Features - Quick and easy installation; - Support of all standard operating systems and protocols including Windows 7; - IPv6 support; - The latest ThinPrint .print Client, supports ThinPrint SSL encryption; - Button for status information and diagnostic purposes; - Access protection; - Encryption of print data (TLS/SSL); - Automatic printer error notification; - Browser-based management; - Print job monitoring; - Software Download via FTP, IPX or HTML; - Regular firmware updates; - Support of 10 languages; - Up to 5 years guarantee.Specifications
| Features | |
|---|---|
| IPP support | Yes |
| Processor | |
| Processor model | RISC |
| Processor frequency | 60 MHz |
| Memory | |
| Internal memory | 16 MB |
| Flash memory | 4 MB |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Security algorithms | 802.1x RADIUS, EAP, HTTPS |
| Network connection type | Ethernet LAN |
| Protocols | |
| Supported network protocols | DHCP, BootP, ARP, IPv4, IPv6, IPv6 / TCP, IPv6 / ICMP, IPv6 / FTP, IPv6 / FTPs, IPv6 / TFTP, IPv6 / HTTP, HTTPs, IPv6 / SSL, TLS, TCP, IPv6 / Raw TCP, UDP, ICMP, IGMP, FTP, FTPs, TFTP, LPD, HTTP, HTTPs, ZeroConf, DNS, SLP, SNMPv1, SNTP, SMTP, POP3, SSL/TLS, IPPv1.0, IPPv1.1, Raw TCP, Apple Bonjour, AARP, RTMP, ADSP, ATP, NBP, ZIP, ATSP, PAP, DDP, BCP1, BCP2, TBCP, IPX, SPX, SPX2, SAP, SNAP, NCP, NDS, NDPS, PureIP, RIP, Bindery, R/N, SMB/CIFS, WINS |
| Management protocols | Raw TCP, LPR/LPD, IPP v1.1, AppleTalk, HTTP, FTP, NetBIOS, Novell iPrint (LPR/IPP), NDPS(IP/IPX), R/N, POP3, Bonjour, KonicaMinolta GDI |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| IPP support | Yes |
| Sustainability certificates | ENERGY STAR |
| Certificates | |
| Certification | CE, FCC, VCCI, WEEE, RoHS, C-Tick |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Security | |
| Security algorithms | 802.1x RADIUS, EAP, HTTPS |
| Weight & dimensions | |
| Weight | 80 g |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Other features | |
| Data transfer rate | 100 Mbit/s |
| Power requirements | 100 - 240V |
| Dimensions (WxDxH) | 63 x 98 x 26 mm |
| Supported data transfer rates | 10Mbit/s |
| Networking features | Fast Ethernet |
| Interface | RJ-45, IEEE1284B |
| Compatible operating systems | Windows 95 Windows 98 Windows Me Windows NT 3.x Windows NT 4.x Windows XP Windows 2003 Server Windows 2008 Server Windows Vista Windows 7 Mac OS 7.x MAC OS 8.x MAC OS 9.x MAC OS 10.x NetWare 3.x NetWare 4.x NetWare 5.x NetWare 6.x Linux |
| Cabling technology | 10/100BASE-T(X) |
