Description

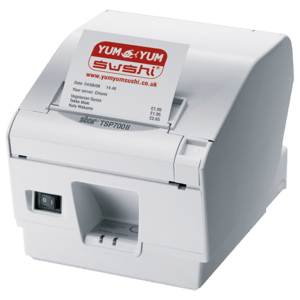

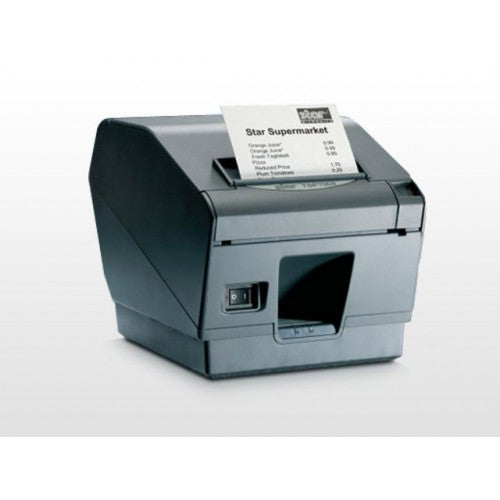

TSP743U II - 203 dpi, 250 mm/s, Thermal Printer, USB, W/O PSU
Its improved and sleeker design features a new top cover which extends to the edge of the printer making it more difficult for dust and liquids to penetrate and harm the printer. In addition to the extended cover, sound and vibration dampening channels within the printer help reduce printing noise and also add an extra layer of protection from moisture or dust when used in harsher environments.
Description
Building on the industry success of the TSP700 from Star Micronics, with a print speed of 48 receipts per minute (250mm/sec), the TSP700II is the best single station printer you can expect. The TSP700II now features a double resolution mode to increase sharpness to any graphic! Eye catching graphics for company logos and/or coupons are a print away.Its improved and sleeker design features a new top cover which extends to the edge of the printer making it more difficult for dust and liquids to penetrate and harm the printer. In addition to the extended cover, sound and vibration dampening channels within the printer help reduce printing noise and also add an extra layer of protection from moisture or dust when used in harsher environments.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 406 x 203 DPI |
| Maximum printing width | 8 cm |
| Printing | |
| Colour | No |
| Print speed | 250 mm/sec |
| Maximum resolution | 406 x 203 DPI |
| Maximum printing width | 8 cm |
| Print technology | Direct thermal |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | No |
| Paper handling | |
| Supported paper width | 58, 80, 82.5 mm |
| Media thickness | 0.06-0.15 mm |
| Maximum roll diameter | 10 cm |
| Maximum label width | 8.25 cm |
| Autocutter durability | 2 million cuts |
| Autocutter | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Wi-Fi | No |
| Ethernet LAN | No |
| USB port | Yes |
| Performance | |
| Built-in barcodes | Code 39, Code 93, Code-128 Codabar Library, ITF, UPC-A, UPC-E |
| Certification | UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost |
| Cutter | Yes |
| Design | |
| Product colour | Grey |
| Certification | UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost |
| Power | |
| AC adapter output voltage | 24 V |
| Technical details | |
| Product colour | Grey |
| Built-in barcodes | Code 39, Code 93, Code-128 Codabar Library, ITF, UPC-A, UPC-E |
| Maximum label width | 8.25 cm |
| Cutter | Yes |
| Harmonized System (HS) code | 84433210 |
| Certificates | |
| Certification | UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 147 mm |
| Depth | 213 mm |
| Height | 148 mm |
| Weight | 1.75 kg |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
