Description
4.4”, 180mm/sec, Serial, 2 Color, Grey

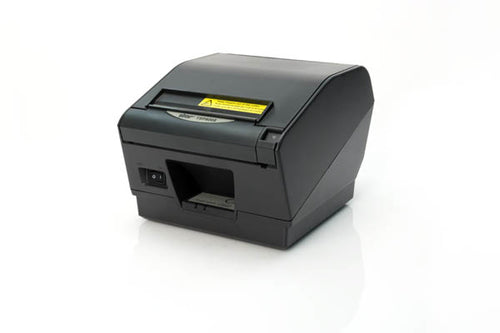

The TSP800II is the only printer on the market that provides printing on 3” to 4.4” wide paper at an amazing speed. It is the perfect printer for applications that need to print a large amount of information on a receipt. The TSP800II can also be purchased with a locking mechanism to secure any sensitive or costly roll of paper (See Model: TSP800Rx).
Description
This revolutionary wide-format POS printer provides a solution to a number of applications where no POS printer was able to before. From compact web printing to mobile transportation printing as well as producing wide high-quality POS receipts with professional and crisp graphics, the TSP800II is the solution!The TSP800II is the only printer on the market that provides printing on 3” to 4.4” wide paper at an amazing speed. It is the perfect printer for applications that need to print a large amount of information on a receipt. The TSP800II can also be purchased with a locking mechanism to secure any sensitive or costly roll of paper (See Model: TSP800Rx).
Specifications
| Printing | |
|---|---|
| Print speed | 7 ppm |
| Print technology | Direct thermal |
| Print speed | 180 mm/sec |
| Performance | |
| Print speed | 7 ppm |
| Print technology | Direct thermal |
| Print speed | 180 mm/sec |
| Paper handling | |
| Media thickness | 0.065 - 0.15 mm |
| Supported paper width | 58, 80, 82.5, 112 mm |
| Maximum roll diameter | 11.2 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Optional connectivity | Serial (RS-232) |
| Print technology | |
| Print speed | 7 ppm |
| Print technology | Direct thermal |
| Print speed | 180 mm/sec |
| Technical details | |
| Maximum print height | 8 mm |
| Media thickness | 0.065 - 0.15 mm |
| Product colour | Grey |
| Autocutter durability | 2 million cuts |
| Harmonized System (HS) code | 84433210 |
| Features | |
| Media thickness | 0.065 - 0.15 mm |
| Internal memory | 8 MB |
| Product colour | Grey |
| Certification | UL, C-UL, TüV, CB, FCC, VCCI, EN55022, CE |
| Autocutter durability | 2 million cuts |
| Design | |
| Product colour | Grey |
| Memory | |
| Internal memory | 8 MB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 6 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | UL, C-UL, TüV, CB, FCC, VCCI, EN55022, CE |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 213 mm |
| Height | 148 mm |
| Weight | 1.9 kg |
| Print quality | |
| Maximum print height | 8 mm |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
