Description

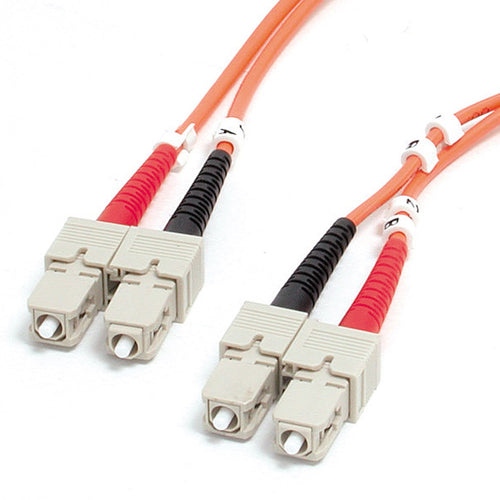

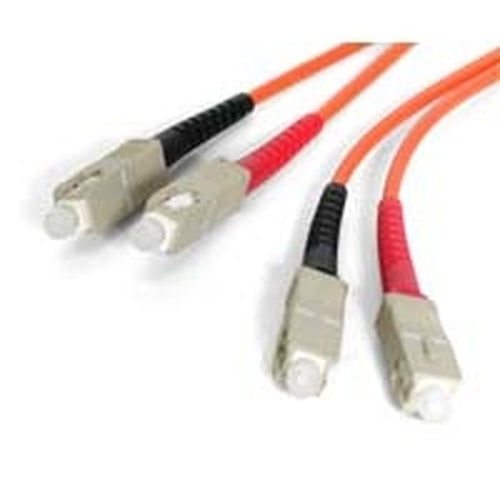

StarTech.com 1m (3.3ft) SC to SC OM1 Multimode Fiber Optic Cable, 62.5/125 Fiber Size, 10G Networks, LSZH Fiber Patch Cord (FIBSCSC1)
The FIBSCSC1 1-meter (3.3ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated at both ends with SC (male) connectors, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This SC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our SC-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
The StarTech.com Advantage
Key Features
- FIBER CABLE: OM1 Fiber Cable is immune to EMI and supports up to 10 Gbps Ethernet; Duplex-cord with color-coded TX/RX connectors enable quick visual identification of polarity
- QUALITY CONSTRUCTION: SC/SC connectors with UPC ends significantly improve return loss; Robust molded connector strain reliefs minimize wear from bending
- SAFETY AND RELIABILITY: Individually tested for signal integrity; LSZH (Low-Smoke, Zero-Halogen) cable jacket emits low-smoke and toxic fumes if combusted
- SPECS: Cable length: 1m (3.3ft); Color: Orange; Connectors: SC/SC; Fiber Size: 62.5/125µm; Fiber Classification: OM1; Fiber Type: Multi Mode; Supported network speed: 1/10 Gbps; Cable OD: 2.9mm
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this fiber optic cable is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description
Connect fiber network devices for high-speed transfers with LSZH rated cableThe FIBSCSC1 1-meter (3.3ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated at both ends with SC (male) connectors, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This SC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our SC-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Fibre optic type | OM1 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 1 m |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 10 Gbit/s |
| Product colour | Orange |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 27 mm |
| Package weight | 40 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 1 m |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Compliance certificates | RoHS, CE |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Weight & dimensions | |
| Cable length | 1 m |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 27 mm |
| Package weight | 40 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 245 mm |
| Master (outer) case height | 317 mm |
| Products per master (outer) case | 320 pc(s) |
| Harmonized System (HS) code | 85447000 |
