Description

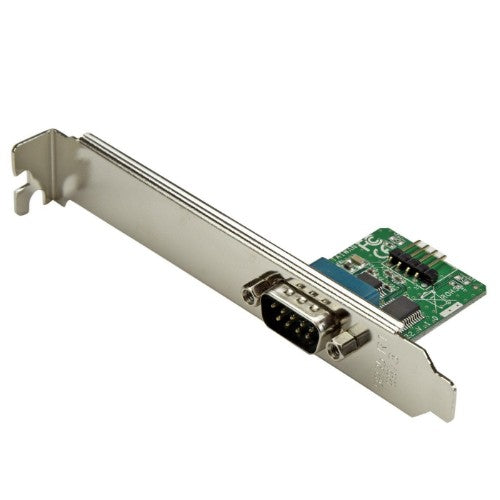

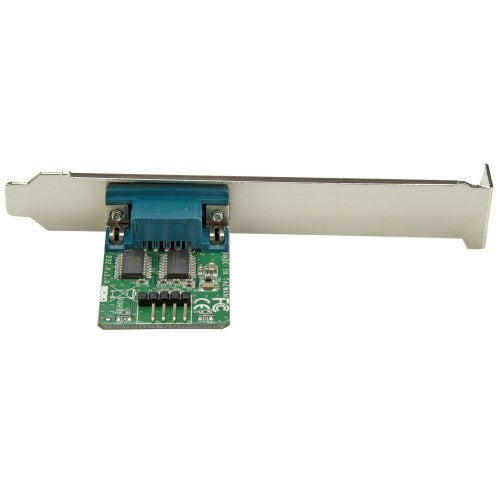

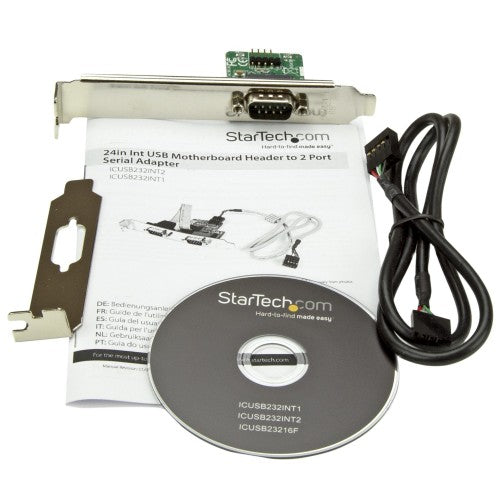

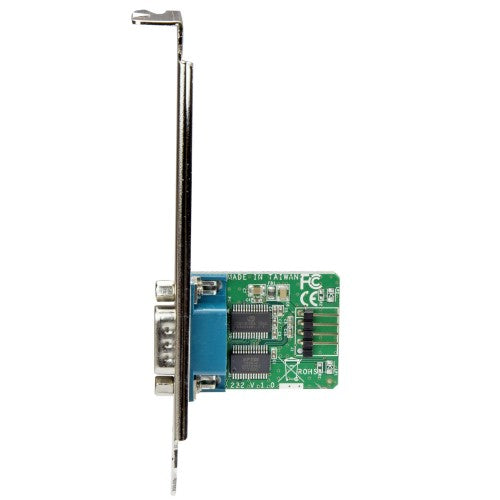

StarTech.com Internal USB Motherboard Header to USB Serial Adapter - DB9 - FTDI USB to Serial Adapter - RS232 Adapter - 1-Port
The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header. Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed. This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Description
Add an RS232 serial port to any system with an available USB motherboard headerThe ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header. Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed. This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Host interface | IDC |
| Technical details | |
| Chipset | FTDI - FT232RL |
| FIFO (First In, First Out) | 256 B |
| Performance | |
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Baud rate | 115.2 Kbit/s |
| Chipset | FTDI - FT232RL |
| FIFO (First In, First Out) | 256 B |
| Product colour | Black, Green, Silver |
| Harmonized System (HS) code | 84733020 |
| Certificates | |
| Certification | Microsoft WHQL, CE, FCC |
| Colour | |
| Product colour | Black, Green, Silver |
| Design | |
| Internal | Yes |
| Product colour | Black, Green, Silver |
| Certification | Microsoft WHQL, CE, FCC |
| Features | |
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Baud rate | 115.2 Kbit/s |
| Chipset | FTDI - FT232RL |
| FIFO (First In, First Out) | 256 B |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 85 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Weight & dimensions | |
| Width | 123 mm |
| Depth | 45 mm |
| Height | 12 mm |
| Weight | 31 g |
| Package width | 143 mm |
| Package depth | 173 mm |
| Package height | 32 mm |
| Package weight | 160 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Package width | 143 mm |
| Package depth | 173 mm |
| Package height | 32 mm |
| Package weight | 160 g |
| Logistics data | |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 682 mm |
| Master (outer) case height | 319 mm |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Other features | |
| Chipset | FTDI - FT232RL |
