Description

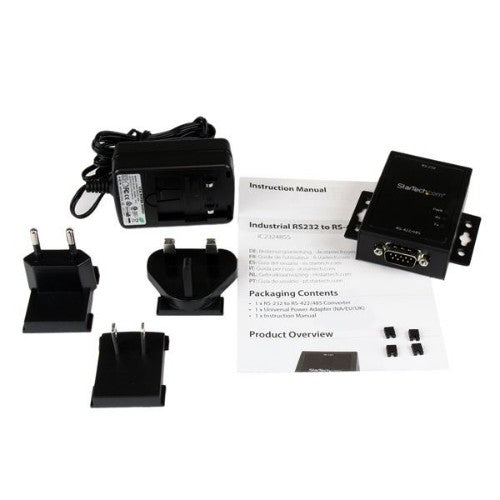

StarTech Industrial RS232 to RS422/485 Serial Port Converter w/ 15KV ESD Protection - RS232 to RS 422 RS485 Converter Adapter (IC232485S)
The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.

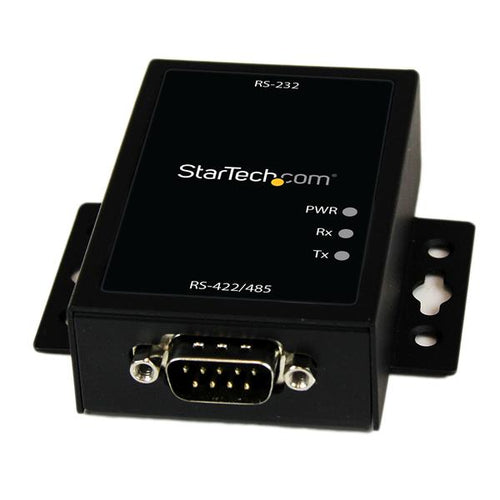

Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.
The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
Key Features
- RS232 to 2/4-wire RS485 or RS422 conversion
- Supports RS422 and RS485 auto detect and manual switching
- ±15KV ESD protection on all signal pins
- Supports baud rates up to 921.6 Kbps
- Wall-mountable
- Supports a maximum connection distance of 4000ft (1200m)
Description
Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapterThe IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.
Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.
The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specifications
| Technical details | |
|---|---|
| Connector 1 | DB-9 |
| Connector 2 | DB-9 |
| Maximum cable length | 1200 m |
| Connector gender | Male/Female |
| Output interface | RS-232 |
| Host interface | RS-232 |
| Product colour | Black |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 59 mm |
| Depth | 117 mm |
| Height | 22 mm |
| Package width | 189 mm |
| Package depth | 119 mm |
| Package height | 71 mm |
| Package weight | 351 g |
| Weight | 143 g |
| Power | |
| Input voltage | 110 - 240 V |
| Input current | 0.3 A |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Packaging data | |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC, REACH |
| Material | |
| Housing material | Steel |
| Logistics data | |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 396 mm |
| Master (outer) case length | 362 mm |
| Master (outer) case height | 264 mm |
