Description
StarTech.com 4K USB-C or USB-A Docking Station Module for Conference Table Connectivity Box - 4K HDMI - 60W USB-C Power Delivery, 4x USB, RJ45 (MOD4DOCKACPD)
Add docking and video conferencing capabilities to a boardroom, classroom or huddle space. This laptop docking module for the StarTech.com conference table connectivity box lets you:
• Access your room's display and collaboration peripherals with a single connection
• Charge mobile devices using the USB-A charge port
• Power a supported USB-C laptop with USB Power Delivery
Dock Your Laptop
Modern office environments need to support technology more than ever, to keep laptops, phones and tablets connected. During meetings, you may need to set up video conference calls using applications such as Microsoft Teams, Zoom or Google Hangouts. Unlike other boardroom conferencing solutions that are limited to only one or two collaboration applications, this module lets you use your own laptop, so you are not restricted to a specific platform.

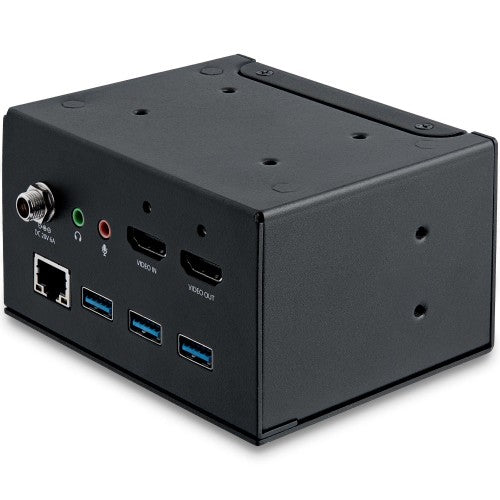

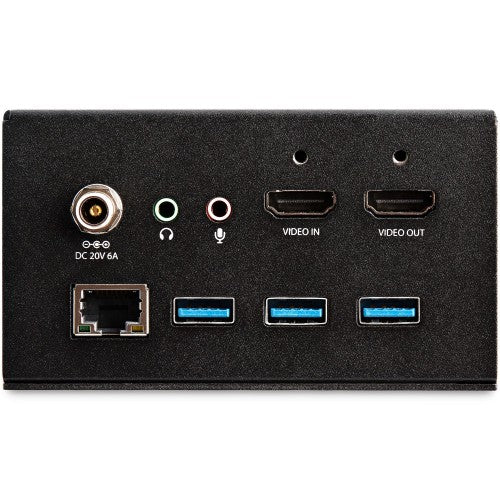

Connect a USB-C or USB-A laptop to the module and access your room's peripherals, webcams, speakers, mics, network and HDMI display. This docking station module lets you easily connect your laptop with each video conferencing device in your boardroom. You can collaborate with others in the room and around the globe.

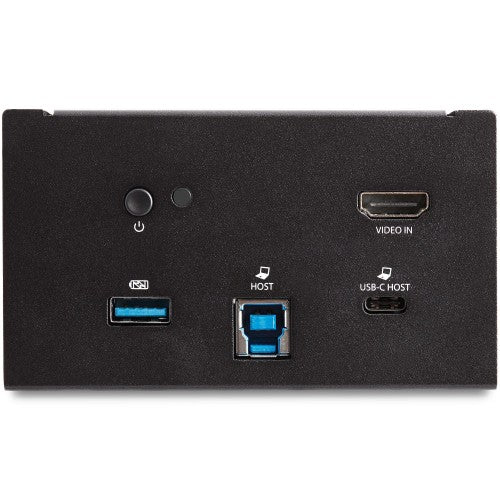

For users that are unable to dock or for quick access to the display, the front-facing HDMI port lets you connect a laptop directly to the display.
Customizable
Architectural connectivity is becoming the trend when designing a boardroom or huddle space. StarTech.com docking station modules let you:
• Customize according to the specific needs of your small, medium or large size room
• Install in easy-to-access locations
• Easily integrates with existing and new collaboration hardware
You can install this module as a standalone solution using the supplied table-mounting bracket, or as an addition to a StarTech.com single-module (BEZ4MOD) or dual-module (BOX4MODULE) conference room table connectivity box (each sold separately).
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
MOD4DOCKACPD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- Easily access boardroom or huddle space devices and set up conference calls using applications such as Skype for Business
- Connect to all your boardroom peripherals from a USB-C or USB-A laptop
- Power and charge your USB-C laptop with USB Power Delivery 2.0 (up to 60W)
- Keep your mobile devices charged with the USB-A charging port
- Use as a standalone solution or combine with a single-module or dual-module StarTech.com Connectivity Box
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
Description
Boardroom Docking Station | 4K HDMI® | USB-C™ and USB-A | USB-C Power DeliveryAdd docking and video conferencing capabilities to a boardroom, classroom or huddle space. This laptop docking module for the StarTech.com conference table connectivity box lets you:
• Access your room's display and collaboration peripherals with a single connection
• Charge mobile devices using the USB-A charge port
• Power a supported USB-C laptop with USB Power Delivery
Dock Your Laptop
Modern office environments need to support technology more than ever, to keep laptops, phones and tablets connected. During meetings, you may need to set up video conference calls using applications such as Microsoft Teams, Zoom or Google Hangouts. Unlike other boardroom conferencing solutions that are limited to only one or two collaboration applications, this module lets you use your own laptop, so you are not restricted to a specific platform.
Connect a USB-C or USB-A laptop to the module and access your room's peripherals, webcams, speakers, mics, network and HDMI display. This docking station module lets you easily connect your laptop with each video conferencing device in your boardroom. You can collaborate with others in the room and around the globe.
For users that are unable to dock or for quick access to the display, the front-facing HDMI port lets you connect a laptop directly to the display.
Customizable
Architectural connectivity is becoming the trend when designing a boardroom or huddle space. StarTech.com docking station modules let you:
• Customize according to the specific needs of your small, medium or large size room
• Install in easy-to-access locations
• Easily integrates with existing and new collaboration hardware
You can install this module as a standalone solution using the supplied table-mounting bracket, or as an addition to a StarTech.com single-module (BEZ4MOD) or dual-module (BOX4MODULE) conference room table connectivity box (each sold separately).
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
MOD4DOCKACPD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 3 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Connectivity technology | Wired |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Yes |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Product colour | Black |
| Card reader integrated | No |
| LED indicators | Power |
| Data transfer rate | 5 Gbit/s |
| Certification | CE, FCC, TAA, REACH |
| Housing material | Aluminium, Plastic |
| Technical details | |
| Product colour | Black |
| Data transfer rate | 5 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 273 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 246 mm |
| Storage | |
| Card reader integrated | No |
| Power | |
| Input current | 2 A |
| Power plug type | Type N |
| Compatible power plug types | EU, UK, US |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 60 W |
| Output voltage | 20 V |
| Output current | 6 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
| Indication | |
| LED indicators | Power |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Weight | 588 g |
| Width | 94 mm |
| Depth | 12 mm |
| Height | 61 mm |
| Package weight | 2.1 kg |
| Package width | 211 mm |
| Package depth | 251 mm |
| Package height | 10 mm |
| Design | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Product colour | Black |
| LED indicators | Power |
| Certification | CE, FCC, TAA, REACH |
| Packaging data | |
| Package weight | 2.1 kg |
| Package width | 211 mm |
| Package depth | 251 mm |
| Package height | 10 mm |

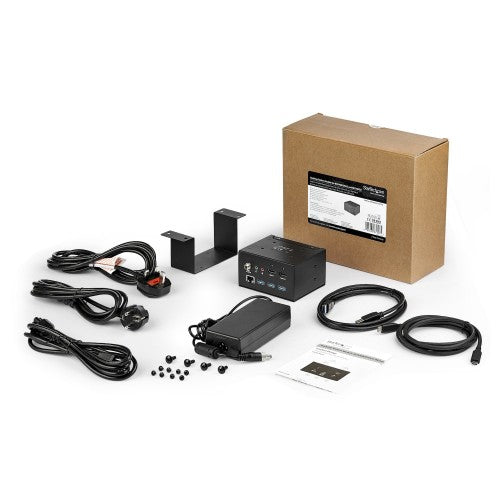

| Packaging content | |
| Quick start guide | Yes |
| Cables included | USB Type-A to USB Type-B, USB Type-C to USB Type-C |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Number of screws | 12 |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Logistics data | |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 273 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 246 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Chipset | DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153 |
