Description

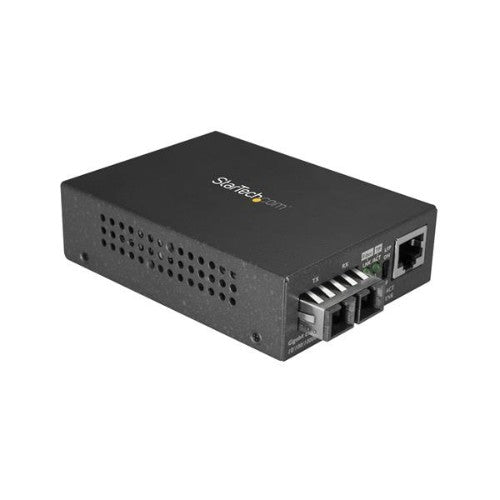

StarTech Single-Mode (SM) SC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to SC Fiber Converter, 1310nm, 10km - TAA
This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively

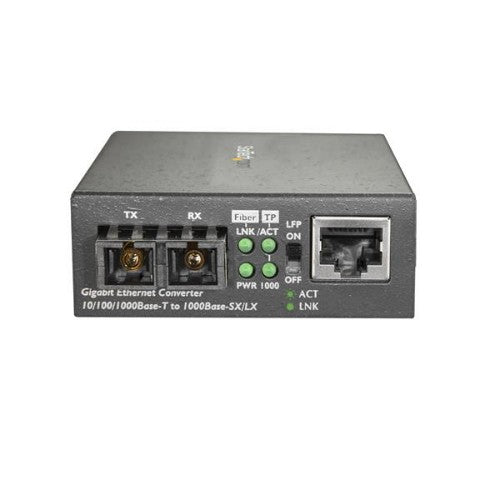

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
Key Features
- Extend Ethernet Over Distances: Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit single-mode SC fiber, up to 10km (6.2 mi); For specialized edge, industrial / remote deployments requiring long-range, secure wired connectivity
- Compact and Durable: Media converter installs almost anywhere with little to no configuration; Also mounts in the MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS for clean, professional integration into structured data centers, or server rooms; TAA compliant
- Reliable Performance Across Mixed Speeds: Supports IEEE 802.3 standards, Jumbo Frames (up to 9K), full-duplex flow control, auto-negotiation, and auto MDI/MDI-X; Delivers plug-and-play setup and reduced packet loss across legacy and high-speed links

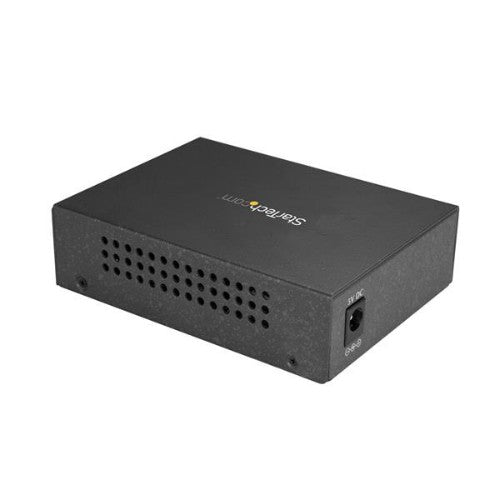

- Deploy Efficiently in Compact, Power-Sensitive Spaces: Consumes only 3.75W (typical) via 5V DC input from included power adapter or chassis power supply and rated for 0°C to 50°C operating environments; Does not support PoE
- The IT Pro's Choice: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Description
Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiberThis fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
Specifications
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Jumbo frames | 9000 |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full |
| Converter output interface | 100Base-LX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 50000 h |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Features | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 0 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Power plug type | Type N |
| Input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Output voltage | 5 V |
| Output current | 2.6 A |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 70 mm |
| Weight | 196 g |
| Height | 26 mm |
| Package depth | 285 mm |
| Package width | 138 mm |
| Package height | 66 mm |
| Package weight | 560 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Packaging data | |
| Package depth | 285 mm |
| Package width | 138 mm |
| Package height | 66 mm |
| Package weight | 560 g |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Single-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Activity, Link, Power |
| Design | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
