Description
StarTech.com 12U Hinged Open Frame Wall Mount Server Rack - 4 Post 22 in. Depth Network Equipment Rack Cabinet - 140 lbs capacity (RK1219WALLOH)

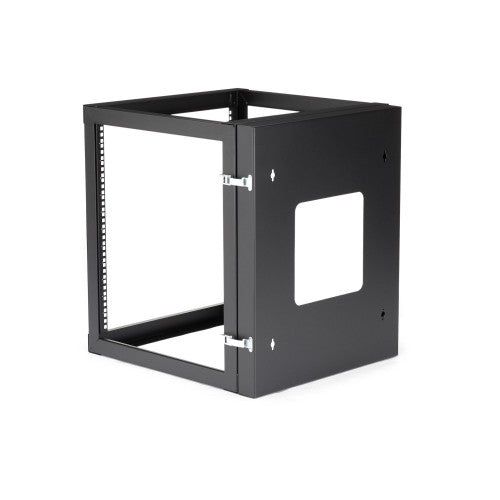

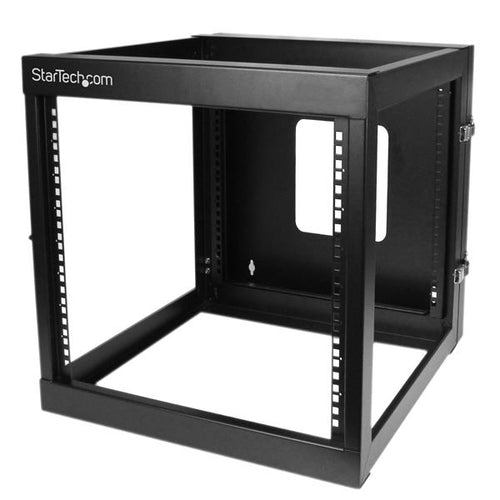

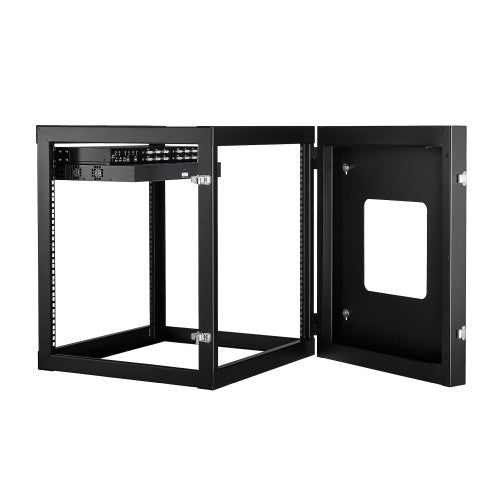

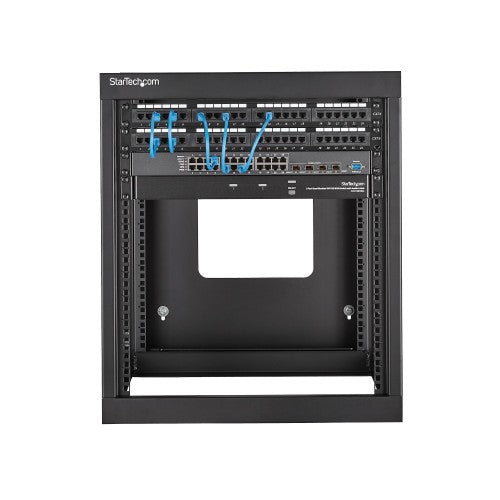

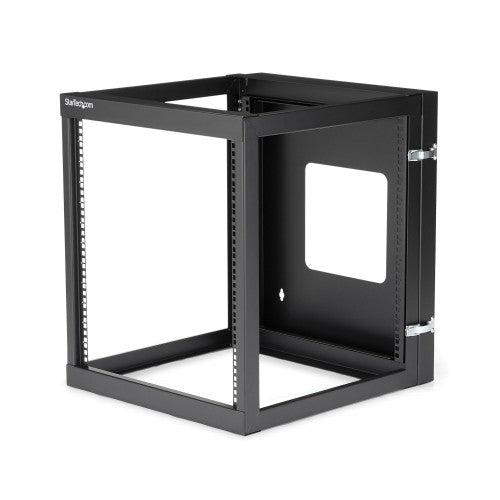

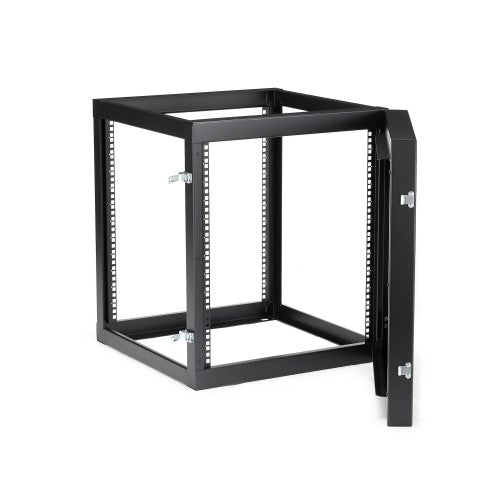

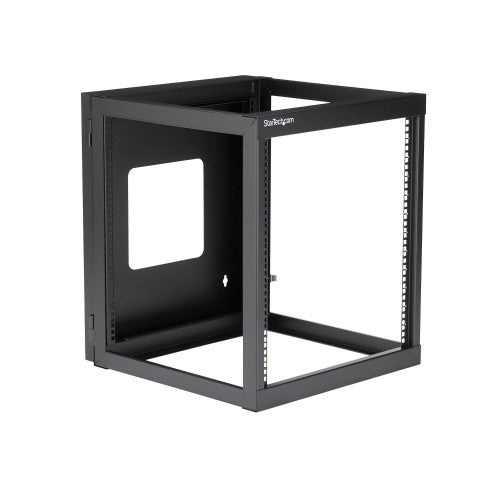

The RK1219WALLOH 12U Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.
The 12U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (139 lbs) with a maximum mounting depth of 19.8inch (50.2cm) . Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
The StarTech.com Advantage
Key Features
- 12U Hinged Wall Mount Rack
- Hinged design for easy access to rear panels
- TAA compliant for GSA Schedule purchases

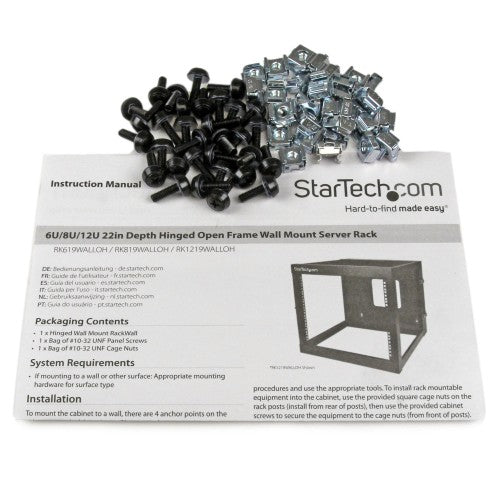

- Package includes all necessary screws/nuts for mounting rack equipment
- Open frame design provides additional airflow
- 4 Post design for added stability
- Sturdy SPCC cold-rolled steel construction
Description
Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenanceThe RK1219WALLOH 12U Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.
The 12U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (139 lbs) with a maximum mounting depth of 19.8inch (50.2cm) . Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
The StarTech.com Advantage
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 660 mm |
| Package width | 635 mm |
| Package height | 718 mm |
| Package weight | 20.7 kg |
| Inner depth | 50.5 cm |
| Mounting depth (max) | 50.7 cm |
| Width | 556 mm |
| Depth | 600 mm |
| Height | 647 mm |
| Weight | 18 kg |
| Maximum weight capacity | 63.4 kg |
| Packaging content | |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 48 |
| Screws included | Yes |
| Number of screws | 48 |
| Features | |
| Number of fans | 0 fan(s) |
| Key lock | No |
| Frame type | Open |
| Product design | 4-post |
| Rack capacity | 12U |
| Castor wheels | No |
| Adjustable mounting rails | No |
| Cable management | No |
| Mounting hole shape | Square |
| Front door key lock | No |
| Type | Wall mounted rack |
| Maximum weight capacity | 63.4 kg |
| Material | Steel |
| Product colour | Black |
| Certification | RoHS, CE, UL, TAA |
| Packaging data | |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 48 |
| Package depth | 660 mm |
| Package width | 635 mm |
| Package height | 718 mm |
| Package weight | 20.7 kg |
| Screws included | Yes |
| Number of screws | 48 |
| Technical details | |
| Package width | 635 mm |
| Package height | 718 mm |
| Type | Wall mounted rack |
| Compliance industry standards | EIA-310-D, EIA RS310-D |
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 12U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | RoHS, CE, UL, TAA |
| Material | |
| Material | Steel |
| Logistics data | |
| Master (outer) case width | 635 mm |
| Master (outer) case length | 660 mm |
| Master (outer) case height | 718 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85381000 |
| Other features | |
| Compliance industry standards | EIA-310-D, EIA RS310-D |
