Description

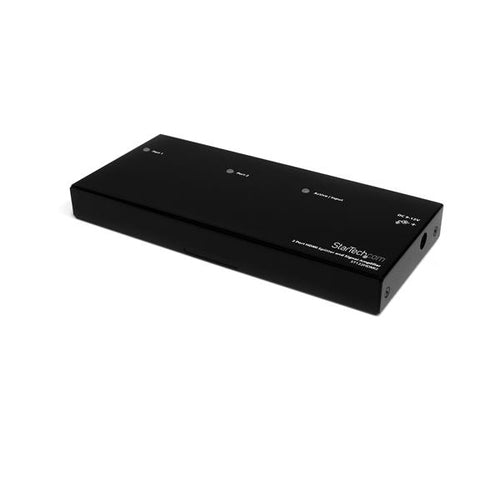

StarTech.com HDMI Splitter 1 In 2 Out - 1080p - 2 Port - Signal Amplifier - Rugged - HDMI Multi Port - HDMI Audio Splitter (ST122HDMI2)
The ST122HDMI2 2-Port High Speed HDMI® Splitter and Signal Amplifier lets you share a single HDMI source signal with audio between two HDMI or DVI (using HDMI to DVI adapter - see Accessories) enabled displays simultaneously.
Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 50ft (15m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.
The HDMI splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMI output devices such as Blu-ray players or desktop/laptop computers.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
Key Features
- 2-PORT HDMI SPLITTER: Displays the same image with sound on 2 screens; HDMI splitter with signal amplifier splits an HDMI source into two Full HD 1080p video signals with no loss of quality
- EDID EMULATION: 1x2 HDMI splitter automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured
- AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Supports HDMI audio or 3.5mm stereo audio connection, allowing you to send your accompanying audio signal through the HDMI cable, or through a separate channel
- EASY SETUP: Reach up to 49ft (15m) with this HDMI splitter with signal amplifier; Simply connect the cables and power to start using; Wide screen monitor formats supported; TAA Compliant
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Splitter with rugged steel enclosure is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Description
Split an HDMI® audio and video signal to two displays simultaneouslyThe ST122HDMI2 2-Port High Speed HDMI® Splitter and Signal Amplifier lets you share a single HDMI source signal with audio between two HDMI or DVI (using HDMI to DVI adapter - see Accessories) enabled displays simultaneously.
Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 50ft (15m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.
The HDMI splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMI output devices such as Blu-ray players or desktop/laptop computers.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Audio ports quantity | 2 |
| Video out | 2x HDMI |
| Features | |
| LED indicators | Yes |
| Housing material | Steel |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum operating distance | 15 m |
| Product colour | Black |
| Certification | CE, FCC, TAA, REACH |
| Power | |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 13 W |
| Output voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Weight | 380 g |
| Width | 80 mm |
| Depth | 180 mm |
| Height | 20 mm |
| Package weight | 716 g |
| Package depth | 97 mm |
| Package width | 221 mm |
| Package height | 98 mm |
| Packaging data | |
| Package weight | 716 g |
| Package depth | 97 mm |
| Package width | 221 mm |
| Package height | 98 mm |

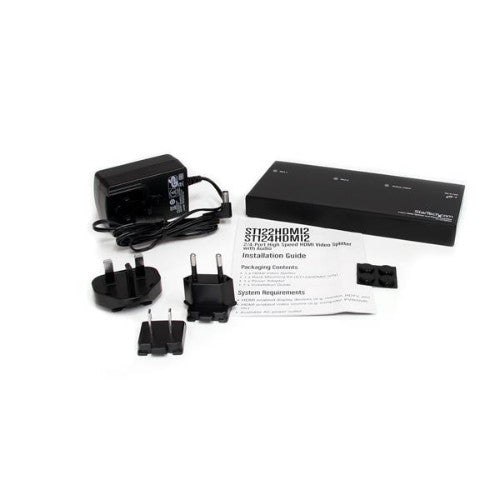

| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | AU, EU, NA, UK |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Video | |
| Maximum resolution | 1920 x 1200 pixels |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Indication | |
| LED indicators | Yes |
| Technical details | |
| Housing material | Steel |
| Package width | 221 mm |
| Package height | 98 mm |
| Video out | 2x HDMI |
| Maximum operating distance | 15 m |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
