Description
StarTech 2 Port USB VGA Cable KVM Switch - USB Powered with Remote Switch - KVM with VGA - Dual Port VGA KVM Switch (SV211USB)
The SV211USB 2-Port VGA Cable KVM Switch lets you control two VGA, USB-equipped PCs with a single monitor, keyboard and mouse.
To help organize your desk without sacrificing valuable work space, this VGA USB KVM switch features a compact footprint and integrated KVM cables that can be connected directly to your systems. Plus, the KVM is USB-powered, eliminating the need for a bulky external power adapter and wall outlet.
This VGA KVM switch offers support for resolutions up to 2048x1536, for the ability to drive a high-resolution VGA display. For simple switching between connected systems, the KVM features a convenient push-button remote switch on a 1.5 meter (5ft) cable, as well as keyboard hot-key support and PC or Mac® compatible switching software.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key Features
- Supports resolutions up to 2048x1536
- Switch PCs via push-button, hot-keys or switching software (included)
- Space-saving design, minimal footprint
- Integrated KVM cables and remote switch
- Switching software supports PC and Mac® platforms
- USB Powered - No external power adapter required
- Supports hot-plugging

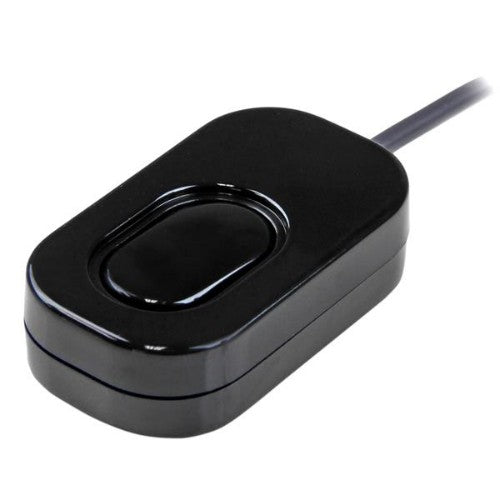

- Remote switch on 1.5m (5ft.) cable
Description
Control two VGA, USB-equipped PCs with a single monitor, keyboard, and mouse peripheral setThe SV211USB 2-Port VGA Cable KVM Switch lets you control two VGA, USB-equipped PCs with a single monitor, keyboard and mouse.
To help organize your desk without sacrificing valuable work space, this VGA USB KVM switch features a compact footprint and integrated KVM cables that can be connected directly to your systems. Plus, the KVM is USB-powered, eliminating the need for a bulky external power adapter and wall outlet.
This VGA KVM switch offers support for resolutions up to 2048x1536, for the ability to drive a high-resolution VGA display. For simple switching between connected systems, the KVM features a convenient push-button remote switch on a 1.5 meter (5ft) cable, as well as keyboard hot-key support and PC or Mac® compatible switching software.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |
| Console ports | USB A, VGA (D-Sub) |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Audio connections | No |
| Cable length | 0.85 m |
| Performance | |
| Daisy chain | No |
| Hot-Plug support | Yes |
| Maximum resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 2048 x 1536 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Hot-Plug support | Yes |
| LED indicators | Yes |
| IP control | No |
| Audio support | Yes |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Cable length | 0.85 m |
| Rack mounting | No |
| LED indicators | Yes |
| Certification | CE, FCC |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| USB powered | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Video | |
| Maximum resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 2048 x 1536 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 88 mm |
| Height | 23 mm |
| Weight | 380 g |
| Package width | 162 mm |
| Package depth | 249 mm |
| Package height | 64 mm |
| Package weight | 435 g |
| Packaging data | |
| Package width | 162 mm |
| Package depth | 249 mm |
| Package height | 64 mm |
| Package weight | 435 g |
| Packaging content | |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC |
| Other features | |
| IP control | No |
| Audio support | Yes |
| Logistics data | |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 354 mm |
| Master (outer) case height | 351 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85176200 |
