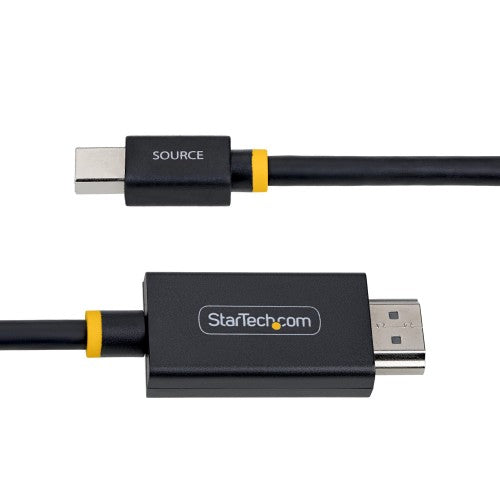

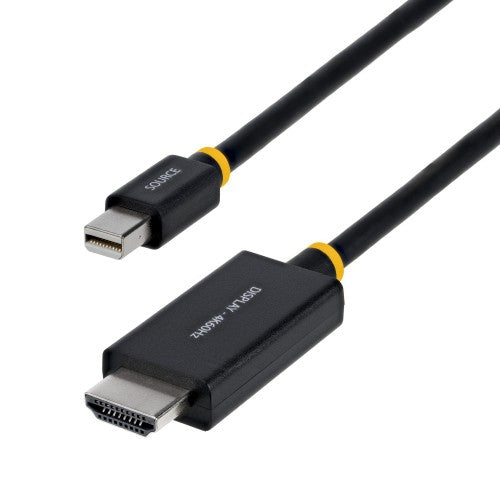

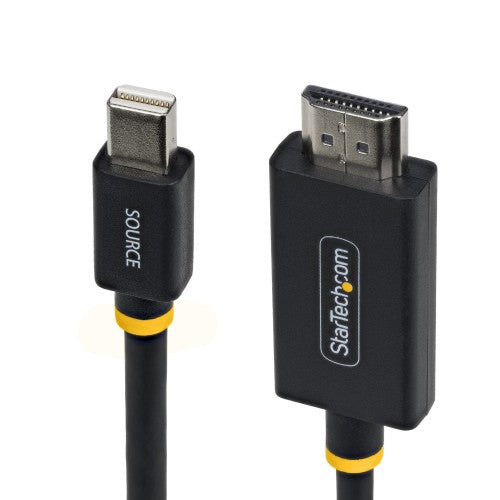

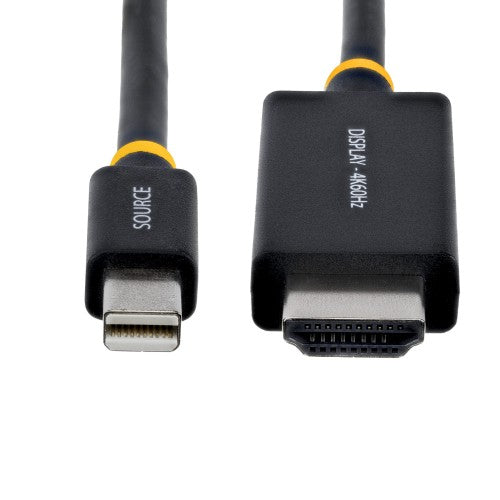

StarTech.com 2M-MDP-HDMI2-4K60, 2 m, Mini DisplayPort, HDMI Type A (Standard), Male, Male, Straight
Description
StarTech.com 2M-MDP-HDMI2-4K60. Cable length: 2 m, Connector 1: Mini DisplayPort, Connector 2: HDMI Type A (Standard). Compliance certificates: RoHS. Cable diameter: 5 mm, Weight: 100 g. Package width: 220 mm, Package depth: 128 mm, Package height: 15 mm. Master (outer) case width: 500 mm, Master (outer) case length: 320 mm, Master (outer) case height: 21 mm
Specifications
| Features |
|---|
| Converter type |
Active video converter |
| Chipset |
Parade PS176 |
| HDMI version |
2.0 |
| DisplayPort version |
2.1 |
| Product colour |
Black |
| Cable length |
2 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Jacket material |
Thermoplastic elastomer (TPE) |
| Bandwidth |
32000 MB/s |
| Maximum resolution |
3840 x 2160 pixels |
| Supported graphics resolutions |
3840 x 2160, 3200 x 1800, 3072 x 1728, 2560 x 1440, 2048 x 1536 (QXGA), 1920 x 1200 (WUXGA), 1920 x 1080 (HD 1080) |
| HDCP |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
144 Hz |
| HDCP version |
2.3 |
| Supported audio channels |
7.1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
5 mm |
| Weight |
100 g |
| Package width |
220 mm |
| Package depth |
128 mm |
| Package height |
15 mm |
| Package weight |
68 g |
| Packaging data |
|---|
| Package width |
220 mm |
| Package depth |
128 mm |
| Package height |
15 mm |
| Package weight |
68 g |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
500 mm |
| Master (outer) case length |
320 mm |
| Master (outer) case height |
21 mm |
| Products per master (outer) case |
80 pc(s) |
