Description

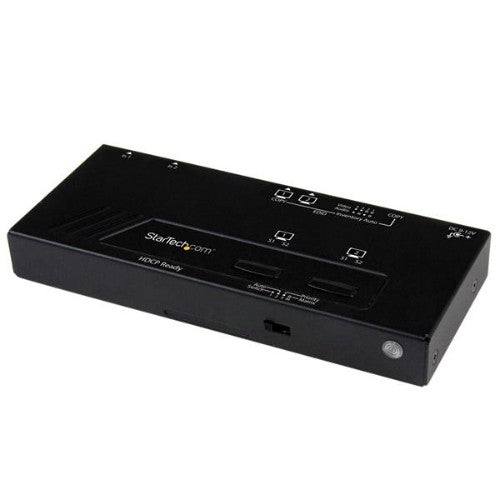

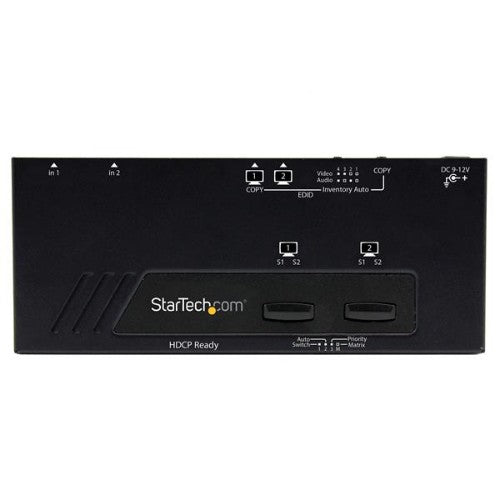

StarTech 2x2 HDMI Matrix Switch with Remote - 1080p Automatic & Priority Switcher - Video Wall Auto Selector Splitter Box - Audio Out , TAA (VS222HDQ)
Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS222HDQ 2X2 HDMI Matrix Switcher. This easy-to-use HDMI Matrix switch ensures seamless transition while switching video and display sources, with EDID copy maintaining your video resolution.
Seamless Signal Selection
Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.
Effortless Control
Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.
Versatile Switching Options
Enjoy hassle-free operation with four different switching modes:
Automatic port selection : Enables your most recently activated video source to be displayed automatically.
Priority port selection : Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Matrix port selection : Independently switch two displays between two video sources.
Manual port selection : Enables you to manually select your HDMI source with easy-to-use front panel buttons.
This product is TAA compliant and backed by a Startech.com 2 warranty with lifetime technical support
Key Features
- Auto switching
- Priority switching
- Built-in manual control console
- 2x2 Matrix switching
- EDID emulation
- Video connection emulation
- Support for video resolution up to 1080p
- Mounting hardware included
Description
Discover hassle-free HDMI connection and automatic video port selection with high-definition picture qualitySave time and hassle by automatically switching between your HDMI audio/video sources, using the VS222HDQ 2X2 HDMI Matrix Switcher. This easy-to-use HDMI Matrix switch ensures seamless transition while switching video and display sources, with EDID copy maintaining your video resolution.
Seamless Signal Selection
Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.
Effortless Control
Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.
Versatile Switching Options
Enjoy hassle-free operation with four different switching modes:
Automatic port selection : Enables your most recently activated video source to be displayed automatically.
Priority port selection : Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Matrix port selection : Independently switch two displays between two video sources.
Manual port selection : Enables you to manually select your HDMI source with easy-to-use front panel buttons.
This product is TAA compliant and backed by a Startech.com 2 warranty with lifetime technical support
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| Number of HDMI outputs | 2 |
| HDMI in | 2 |
| Features | |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Supported video modes | 1080p, 720p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 10 m |
| Material | Aluminium, Plastic |
| LED indicators | Activity |
| HDCP | Yes |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 0.6 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Power plug type | Type M |
| Power consumption (max) | 18 W |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Weight & dimensions | |
| Width | 65 mm |
| Height | 20 mm |
| Depth | 157 mm |
| Weight | 290 g |
| Package width | 196 mm |
| Package height | 76 mm |
| Package depth | 294 mm |
| Package weight | 545 g |
| Technical details | |
| Audio output channels | 7.1 channels |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 65 mm |
| Height | 20 mm |
| Depth | 157 mm |
| Product colour | Black |
| Video port type | HDMI |
| Supported video modes | 1080p, 720p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 10 m |
| Material | Aluminium, Plastic |
| LED indicators | Activity |
| HDMI ports quantity | 4 |
| HDCP | Yes |
| Remote control included | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Packaging data | |
| Package width | 196 mm |
| Package height | 76 mm |
| Package depth | 294 mm |
| Package weight | 545 g |

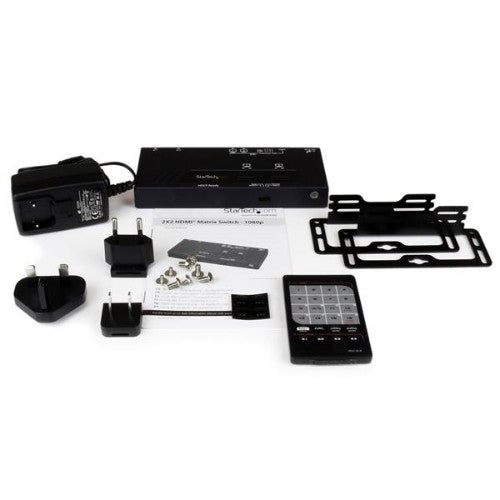

| Packaging content | |
| Plug adapter type | NA, EU, UK, AU |
| Manual | Yes |
| Remote control included | Yes |
| AC adapter included | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case width | 412 mm |
| Master (outer) case length | 454 mm |
| Master (outer) case height | 334 mm |
| Harmonized System (HS) code | 85176990 |
