Description

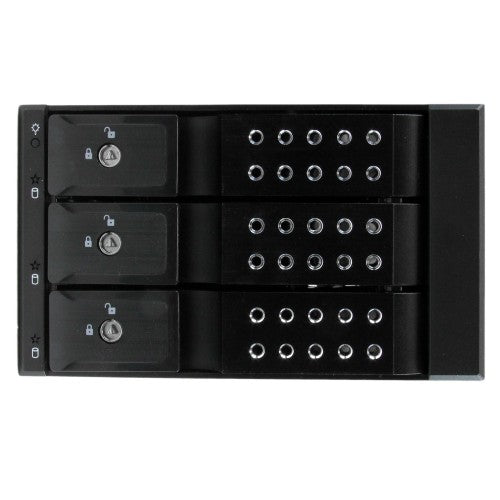

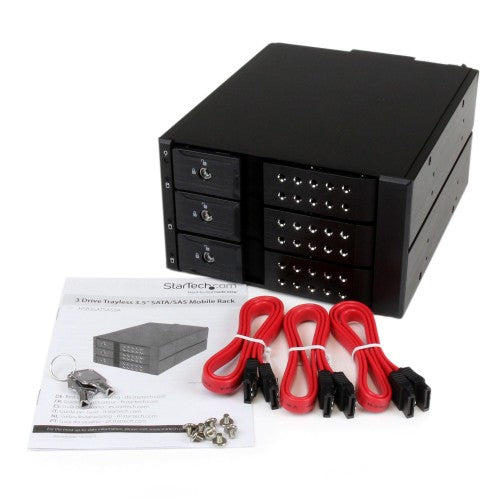

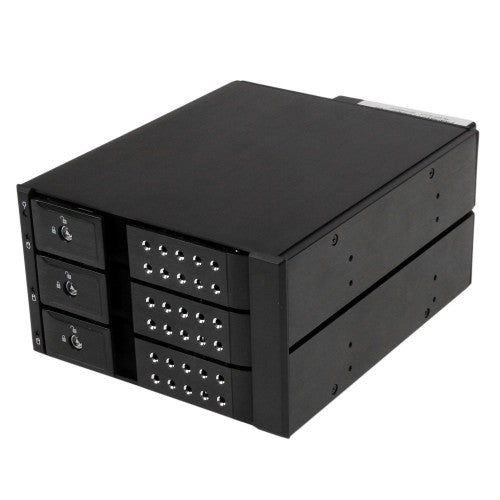

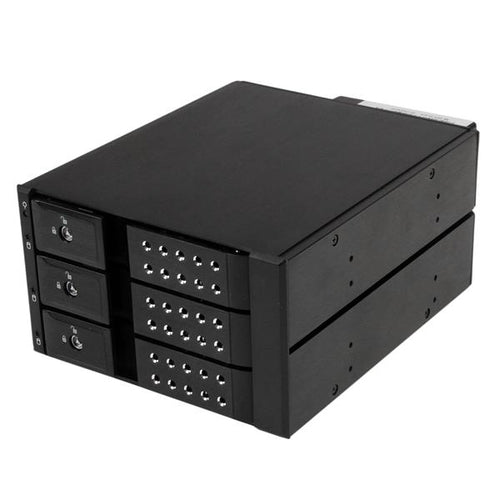

StarTech 3-Bay Hot Swap Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD - Aluminum Trayless Mobile Rack Backplane (HSB3SATSASBA)
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key Features
- INCREASED PRODUCTIVITY: The 3-drive hot swap backplane lets you turn two 5.25in bays into a hot-swappable interface for you to connect up to three 3.5in SATA or SAS hard drives (HDD)
- MAXIMUM COMPATIBILITY: For added versatility, the hard mobile rack backplane can interface with SATA I/II/III and SAS I/II hard drives; An ideal accommodation for enterprise system applications; Power and status LEDs for each bay

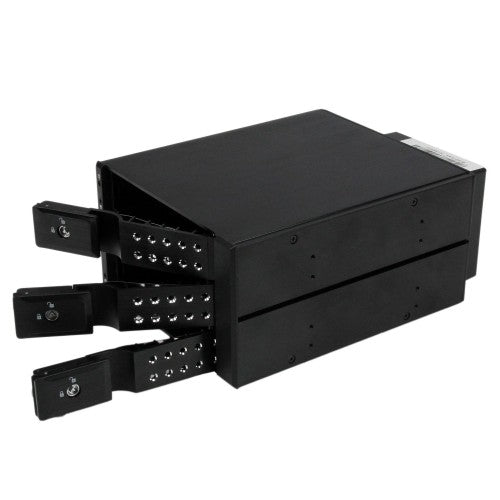

- QUICK SETUP: For a quick and secure method of installing and removing drives, this trayless SATA hot swap backplane features individual ejection levers for each bay with a key-lock design for optional added security (includes two keys)

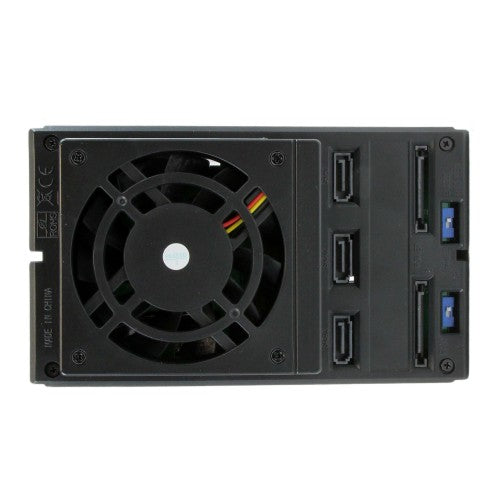

- MAINTAIN OPTIMAL TEMPERATURE: To help prevent drive failure, the 3-drive hot swap backplane features a vented solid aluminum enclosure that provides excellent heat dissipation in addition to a built-in fan with speed control; UL VO flammability rated
- THE IT PRO'S CHOICE: Designed and built for IT professionals, this 3-Bay hard drive backplane is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Description
Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” baysThe HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Hot-swap drive bays | Yes |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD |
| Number of storage drives supported | 3 |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive size | 3.5" |
| Storage drives installed | No |
| Maximum supported storage capacity | 12 TB |
| Data transfer rate | 6 Gbit/s |
| Ports & interfaces | |
| Number of SATA power connectors | 2 |
| SATA power connector type | SATA 15-pin |
| SATA host port | Yes |
| Host ports | 3 |
| Technical details | |
| Backplanes support | Yes |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Internal | No |
| LED indicators | Activity, Power |
| Data transfer rate | 6 Gbit/s |
| Harmonized System (HS) code | 84717020 |
| Compliance certificates | RoHS |
| Design | |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Internal | No |
| LED indicators | Activity, Power |
| Performance | |
| Backplanes support | Yes |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 194.1 mm |
| Weight | 1.2 kg |
| Height | 110 mm |
| Package width | 253 mm |
| Package depth | 184 mm |
| Package height | 126 mm |
| Package weight | 1.2 kg |
| Packaging data | |
| Package width | 253 mm |
| Package depth | 184 mm |
| Package height | 126 mm |
| Package weight | 1.2 kg |
| Cables included | SATA |
| Packaging content | |
| Cables included | SATA |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Other features | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case width | 541 mm |
| Master (outer) case length | 391 mm |
| Master (outer) case height | 287 mm |
| Harmonized System (HS) code | 84717020 |
