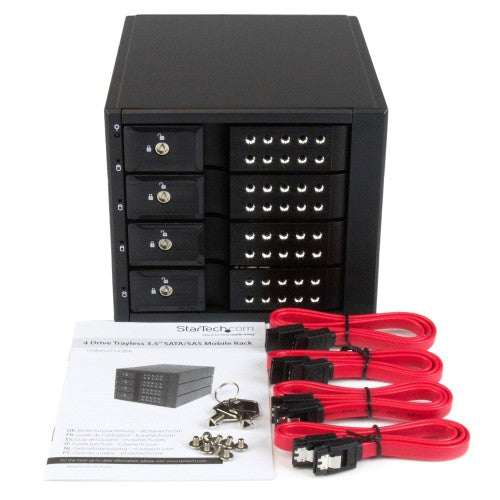

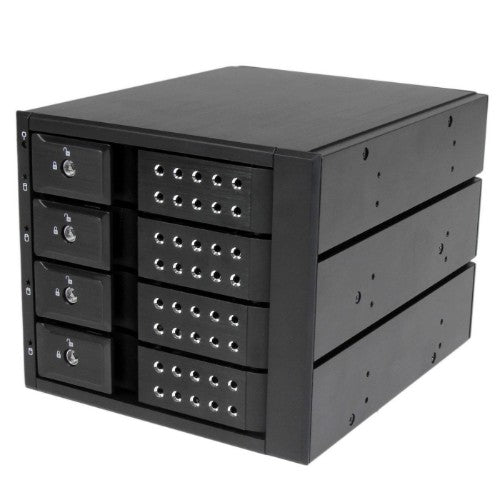

StarTech 4-Bay Mobile Rack Backplane - Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD (HSB4SATSASBA)
The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key Features
- INCREASED PRODUCTIVITY: The mobile rack backplane for 3.5in SAS II/SATA III turns three 5.25in bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD)
- MAXIMUM COMPATIBILITY: The hot swap backplane for 3.5in SAS II/SATA III can interface with SATA I/II/III and SAS I/II hard drives, an ideal solution for enterprise system applications; Power and status LEDs for each bay
- EASY TO USE: For a quick and secure method of installing and removing drives, this trayless hot swap mobile rack backplane features individual ejection levers for each bay and a key-lock design (includes two keys)
- MAINTAIN OPTIMAL TEMPERATURE: To help prevent drive failure, the 4-drive hot swap backplane features a vented solid aluminum enclosure that provides excellent heat dissipation in addition to a built-in fan with speed control; UL VO flammability rated
- THE IT PRO'S CHOICE: Designed and built for IT professionals, this 4-Bay hard drive backplane is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Description
Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 GbpsThe HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Features | |
|---|---|
| LED indicators | Activity, Power |
| Certification | CE, FCC |
| Hot-swap | Yes |
| Key lock | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 7 cm |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Aluminium |
| Technical details | |
| LED indicators | Activity, Power |
| Certification | CE, FCC |
| Hot-swap | Yes |
| Operating relative humidity (H-H) | 5 - 85% |
| Key lock | Yes |
| Operating temperature (T-T) | 0 - 55 °C |
| Number of fans | 1 fan(s) |
| Fan diameter | 7 cm |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Aluminium |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 531 mm |
| Master (outer) case length | 392 mm |
| Master (outer) case height | 288 mm |
| Package width | 254 mm |
| Package height | 185 mm |
| Package depth | 169 mm |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| External SATA ports quantity | 4 |
| Weight & dimensions | |
| Width | 145 mm |
| Weight | 1.3 kg |
| Height | 124 mm |
| Depth | 197 mm |
| Packaging data | |
| Package weight | 1.59 kg |
| Package width | 254 mm |
| Package height | 185 mm |
| Package depth | 169 mm |
| Packaging content | |
| Screws included | Yes |
| Manual | Yes |
| Cables included | SATA |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 531 mm |
| Master (outer) case length | 392 mm |
| Master (outer) case height | 288 mm |
| Harmonized System (HS) code | 84733080 |
