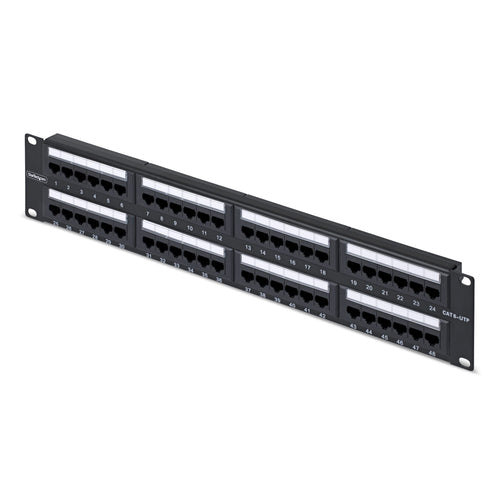

StarTech.com 48-Port 2U Rackmount Cat6 Patch Panel, RJ45, UTP, 110 Punch-Down, Cat 6 Ethernet Patch Panel for Network Server Rack

StarTech.com 48-Port 2U Rackmount Cat6 Patch Panel, RJ45, UTP, 110 Punch-Down, Cat 6 Ethernet Patch Panel for Network Server Rack

Key Features

• HIGH-DENSITY CONNECTIVITY: 48-Port UTP Cat6 Patch Panel offers a structured cabling solution with clearly labeled ports for organized, high-performance networking; Suitable for data centers, enterprise networks, and server rack installations
• DURABLE CONSTRUCTION: Sturdy 2U steel housing with black powder-coated finish for durability; Gold-plated RJ45 contacts ensure long-term signal integrity and corrosion resistance; 110 punch-down RJ45 terminals provide reliable, fixed wiring points
• RELIABLE PERFORMANCE: Supports 1 Gigabit and 10/100 Mbps Ethernet speeds for stable and uninterrupted data transmission; Engineered to meet ANSI/TIA-568-C.2 Cat6 specifications for consistent signal quality and minimal crosstalk
• SIMPLE INSTALLATION: Color-coded 110 punch-down blocks support both T568A and T568B wiring configurations for streamlined cable termination; Numbered RJ45 port layout simplifies setup, ongoing maintenance, and troubleshooting
• WIDE COMPATIBILITY: Compatible with all standard 19in network racks and enclosures; Supports solid and stranded Cat6 and Cat5e cables; Ideal for scaling LAN infrastructure or centralizing network cabling in high-density IT environments

Description

Organize up to 48 Cat6 cables with a rackmount patch panel built for high-capacity network setups

This 48-Port 2U Cat6 Patch Panel provides a reliable way to route and manage Ethernet connections in rack-mounted network setups. It's designed for high-density environments like data centers and server rooms, where structured cable management and long-term performance are critical.

Structured Connectivity

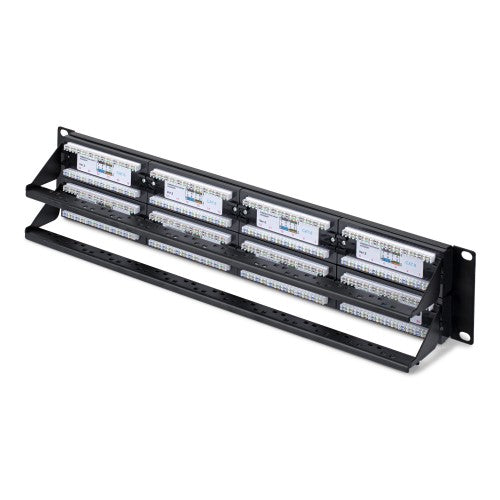

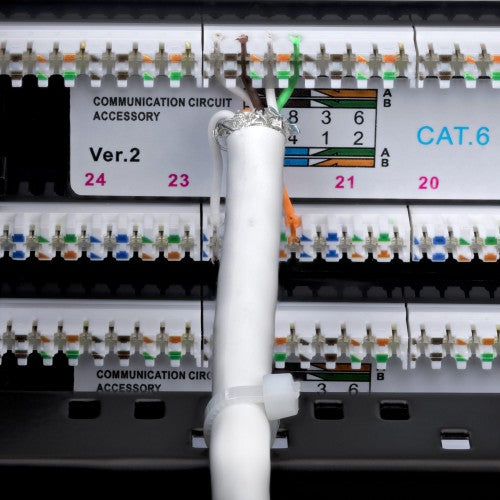

The 2U network patch panel features clearly numbered RJ45 ports and color-coded 110 punch-down blocks that support both T568A and T568B wiring. The intuitive layout helps simplify installation, keeps cable paths organized, and facilitates accurate fault isolation when troubleshooting.

Durable Construction

A robust steel housing with a black powder-coated finish protects the rackmount patch panel in demanding environments. Gold-plated contacts ensure lasting signal integrity, and 110 punch-down terminals facilitate secure, fixed cable connections for stable Ethernet performance.

Specifications

Network
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Maximum data transfer rate	1000 Mbit/s
Cable types supported	Cat6
Cable shielding	U/UTP (UTP)
Ports quantity	48
Connector(s)	RJ-45
Cabling technology	10/100/1000Base-T(X)
Design
Mounting	Rack mounting
Rack capacity	2U
Material	Steel
Product colour	Black
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	0 - 50%
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Width	89 mm
Weight	980 g
Height	34 mm
Depth	483 mm
Package weight	1.5 kg
Package width	515 mm
Package height	75 mm
Packaging content
Quick start guide	Yes
Packaging data
Package weight	1.5 kg
Package depth	120 mm
Package width	515 mm
Package height	75 mm
Features
Mounting	Rack mounting
Rack capacity	2U
Material	Steel
Product colour	Black
Technical details
Mounting	Rack mounting
Operating temperature (T-T)	0 - 70 °C
Package width	515 mm
Package height	75 mm
Material	Steel
Compliance certificates	RoHS
Colour
Product colour	Black
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	530 mm
Master (outer) case length	400 mm
Master (outer) case height	260 mm
