StarTech.com DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB Powered - Latching DP Connector

StarTech.com DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB Powered - Latching DP Connector (DP2DVID2)

Key Features

• DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D dual-link adapter connects a DVI display supporting 2560x1600 60Hz (dual-link) or 1920x1200/1080p 120Hz (single-link); HDCP compliant; / 15" (37cm) attached cable / USB-Powered / EDID pass-through
• COMPATIBILITY: Active video converter supports DP (single mode) or DP++ (multi-mode) source including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations

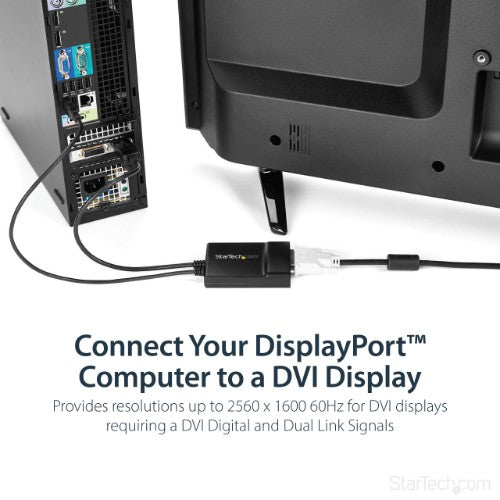

• CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation / Compact design /Tested w/ DVI cables up to 25ft / Supports widescreen/ultrawide & Apple Cinema Display HD / Ideal for digital signage

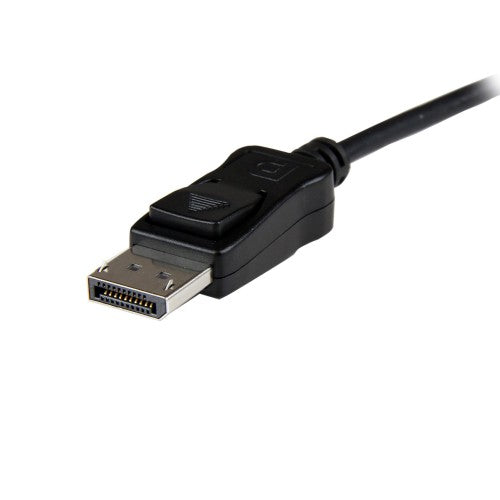

• LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching nickel-plated DP connector with gold-plated contacts ensure a solid host connection / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection / 18" (46cm) USB cable
• EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS; DisplayPort male to DVI female adapter dongle

Description

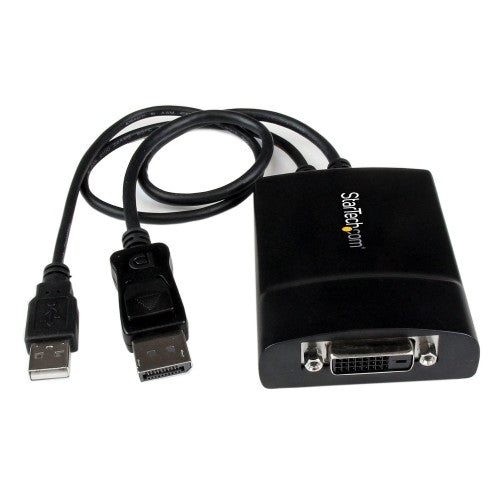

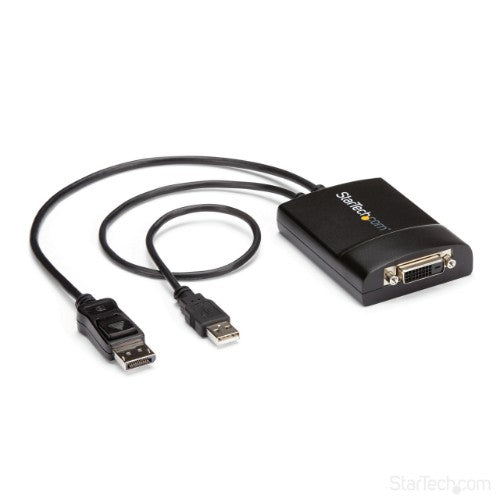

Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications

The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.

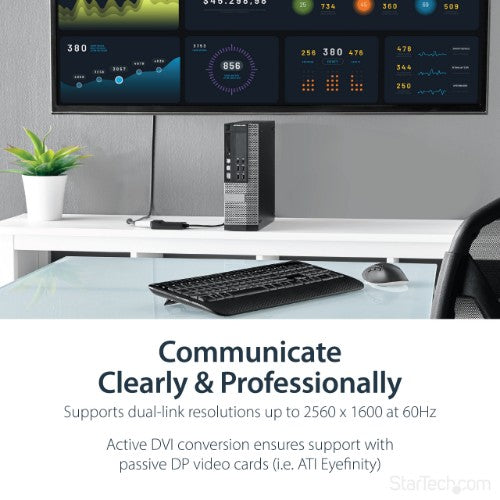

The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.

DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.

Back by StarTech.com 3-year warranty, with free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
Converter type	Active video converter
DisplayPort version	1.2
Product colour	Black
Cable length	0.37 m
Connector 1	DisplayPort
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	2560 x 1600 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
HDCP	Yes
Certification	RoHS
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	Yes
Maximum refresh rate	120 Hz
Power source	USB
HBR2 support	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Other features
Width	64 mm
Height	22 mm
Depth	549 mm
Weight & dimensions
Width	64 mm
Height	22 mm
Depth	549 mm
Weight	160 g
Package width	174 mm
Package depth	143 mm
Package height	35 mm
Package weight	232 g
Packaging data
Package width	174 mm
Package depth	143 mm
Package height	35 mm
Package weight	232 g
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	337 mm
Master (outer) case length	497 mm
Master (outer) case height	220 mm
Products per master (outer) case	28 pc(s)
Harmonized System (HS) code	84733080
