Description

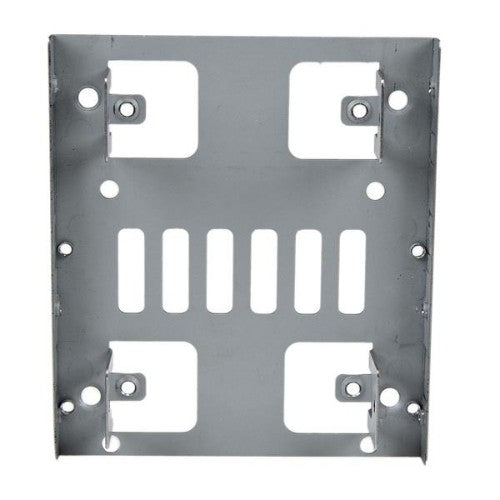

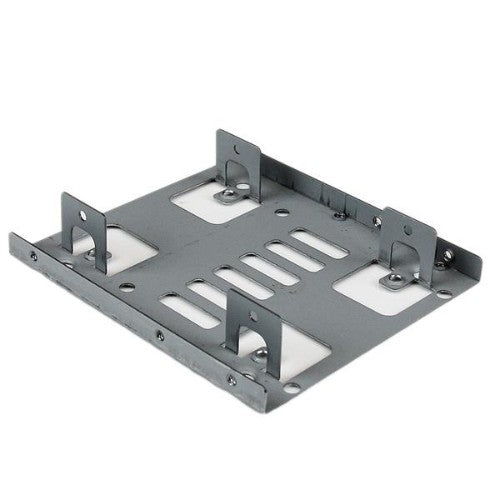

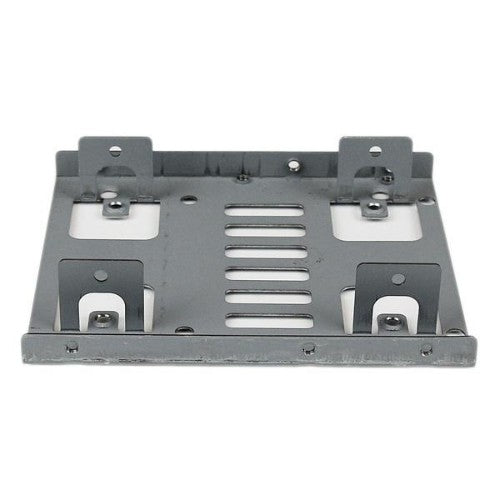

StarTech 2.5" to 3.5" SATA Hard Drive Mounting Bracket Kit - Dual SATA SSDs/HDDs Mounting Bracket for Mounting Bay , TAA (BRACKET25X2)

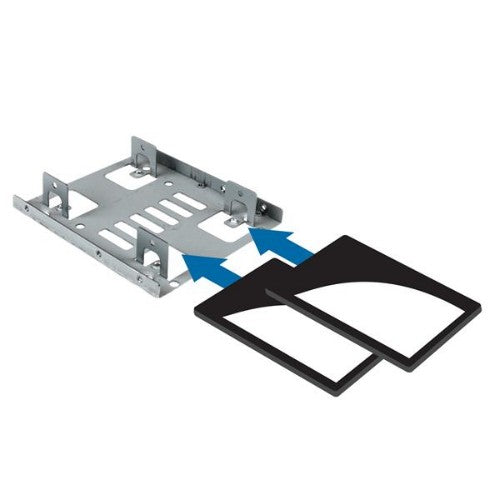

The BRACKET25X2 Dual hard drive mounting bracket kit lets you install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) into a single 3.5in mounting bay -- enabling you to significantly increase the performance of your desktop by adding the speed of a 2.5in SSD.
Maximize the internal mounting space of your computer, by installing two 2.5in hard drives in the same 3.5in bay. The bracket can be used with SATA hard drives and solid states
For a hassle-free installation, the hard drive mounting kit includes all required data and power cabling for both SATA drives. Plus, the bracket can support IDE drives when using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044).
The BRACKET25X2 features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Key Features
- CONVENIENT SETUP: Use this dual 2.5in HDD / SDD mounting bracket to install two 2.5 inch SSDs (solid-state drives) or HDDs (hard drives) into a 3.5 inch drive bay on your desktop PC

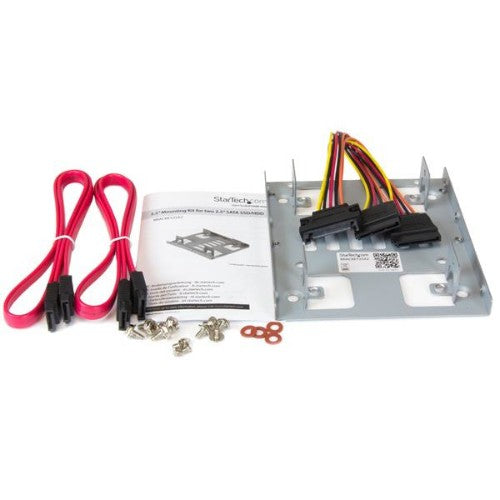

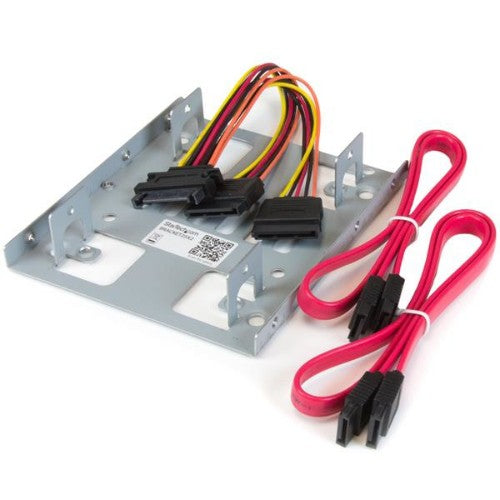

- SAVE TIME: This 2.5in mounting bracket is ideal for technicians and IT professionals performing system setups, and includes a mounting screw kit, two SATA data cables, and one SATA power Y cable
- BROAD COMPATIBILITY: This 2.5in HDD / SDD mount is compatible with 3.5in SATA drives of any capacity or file format
- DRIVE HEIGHT RANGE: This 2.5in dual SSD / HDD mounting bracket supports 2.5in drives up to 9.5mm in height (top slot) and 12.7mm (bottom slot)
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 2.5in to 3.5in hard drive mounting bracket is backed for 2 years, including free lifetime 24/5 multi-lingual assistance
Description
Mount two 2.5in SATA SSDs/HDDs into a single 3.5in drive bayThe BRACKET25X2 Dual hard drive mounting bracket kit lets you install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) into a single 3.5in mounting bay -- enabling you to significantly increase the performance of your desktop by adding the speed of a 2.5in SSD.
Maximize the internal mounting space of your computer, by installing two 2.5in hard drives in the same 3.5in bay. The bracket can be used with SATA hard drives and solid states
For a hassle-free installation, the hard drive mounting kit includes all required data and power cabling for both SATA drives. Plus, the bracket can support IDE drives when using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044).
The BRACKET25X2 features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
| Features | |
|---|---|
| Certification | REACH, CE, TAA |
| HDD size | 2.5" |
| Type | Carrier panel |
| Size (imperial) | 8.89 cm (3.5") |
| Number of HDDs supported | 2 |
| Product colour | Stainless steel |
| Material | Steel |
| Technical details | |
| Certification | REACH, CE, TAA |
| HDD size | 2.5" |
| Type | Carrier panel |
| Size (imperial) | 8.89 cm (3.5") |
| Number of HDDs supported | 2 |
| Product colour | Stainless steel |
| Material | Steel |
| Products per master (outer) case | 44 pc(s) |
| Master (outer) case width | 433 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 339 mm |
| Package width | 163 mm |
| Package height | 37 mm |
| Package depth | 139 mm |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 102 mm |
| Weight | 73 g |
| Height | 22 mm |
| Depth | 116 mm |
| Packaging data | |
| Package weight | 190 g |
| Package dimensions (WxDxH) | 140 x 165 x 38 mm |
| Package width | 163 mm |
| Package height | 37 mm |
| Package depth | 139 mm |
| Packaging content | |
| Screws included | Yes |
| Number of lock keys included | 13 pc(s) |
| Cables included | SATA |
| Quick start guide | Yes |
| Logistics data | |
| Products per master (outer) case | 44 pc(s) |
| Master (outer) case width | 433 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 339 mm |
| Harmonized System (HS) code | 84733080 |
